Goobay

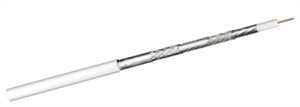

100 dB coax- antenna cable, 2x shielded, CCS, white
Class A tested, for digital SAT- and CATV-cable systems
Goobay
100 dB coax- antenna cable, 2x shielded, CCS, white
Class A tested, for digital SAT- and CATV-cable systems
Article details
  • tested and classified as Class A (as per EN 50117)
  • digital-ready for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
  • double signal shield for adequate protection over long distances
  • meter scaling on the cable simplifies building installation

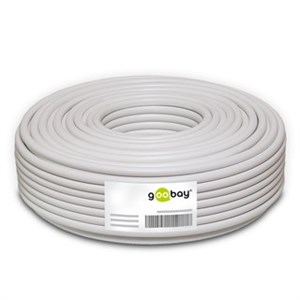

  • delivered separately as simple cable coil
Technical specifications
Performance
Fire class (CPR) according to DIN EN 13501-6
Eca
Cable
Cable length
25 m
Shielding class
Class A
Meter scaling
no
Inner conductor material
CCS 21 (21% copper-clad steel)
Dielectric diameter
4.8
Cable type
coaxial cable
inner conductor, core diameter
1.1
Cable sheath diameter (approx.)
6.8 mm
Number of shieldings
2 x
Type 1, shielding
foil (aluminium)
Type 2, shielding
braid (aluminium) 128x
Shielding efficiency
100 dB
Signal transmission
Impedance
75 Ω
General
Packaging type
Cable Reel
Consumption Unit
1 pc. coil
Outer sheath material
PVC
Color
white
Markings
ECA_CPR, CE
Operating temperature from
-20 °C
Operating temperature up to
75 °C
Weight
1051 g
£12.49 RRP
Packing units:
1 / 20
Packaging type
Cable length
Item: 51510
EAN: 4040849515101
