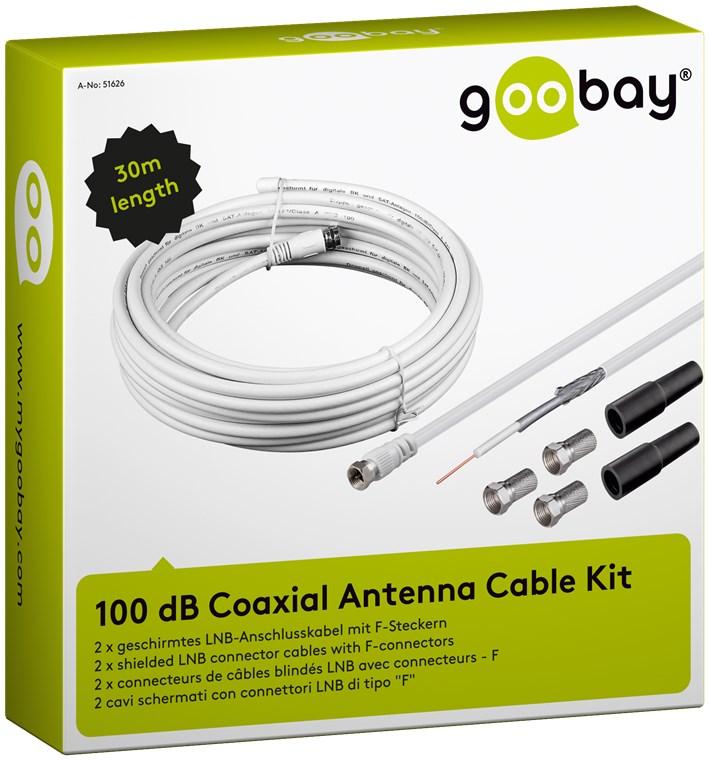

100 dB Coaxial Antenna Cable Set
double shielded LNB connection cable with F plugs
- Satellite cable particularly suitable for direct connection of a single LNB
- Simplified laying and wall feed-through of the coax cable thanks to loose cable ends on one side
- Double-shielded TV cable for interference-free transmission.
- Antenna cable with inner conductor made of 1.13 mm thick copper-clad steel
- Set includes: 3x F plug and 2x weather protection sleeve
Connections
| Connection, type |
F male |
| Connection 2, type |
Loose cable ends |
| Connection, shielding |
yes |
Cable
| Cable type |
coaxial cable |
| Number of shieldings |
2 x |
| Type 1, shielding |
foil (aluminium) |
| Type 2, shielding |
braid (aluminium) 128x |
| inner conductor, core diameter |
1.13 mm |
| Inner conductor material |
CCS |
| Dielectric diameter |
4.8 |
| Cable sheath diameter (approx.) |
6.8 mm |
| Cable length |
30 m |
General
| Outer sheath material |
PVC |
| Markings |
CE |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
SCIP
| SCIP no. |
fc917e51-438f-4610-b1d8-dcfe33607a49 |
| chemical substance |
Pb |
| CAS no. |
7439-92-1 |
