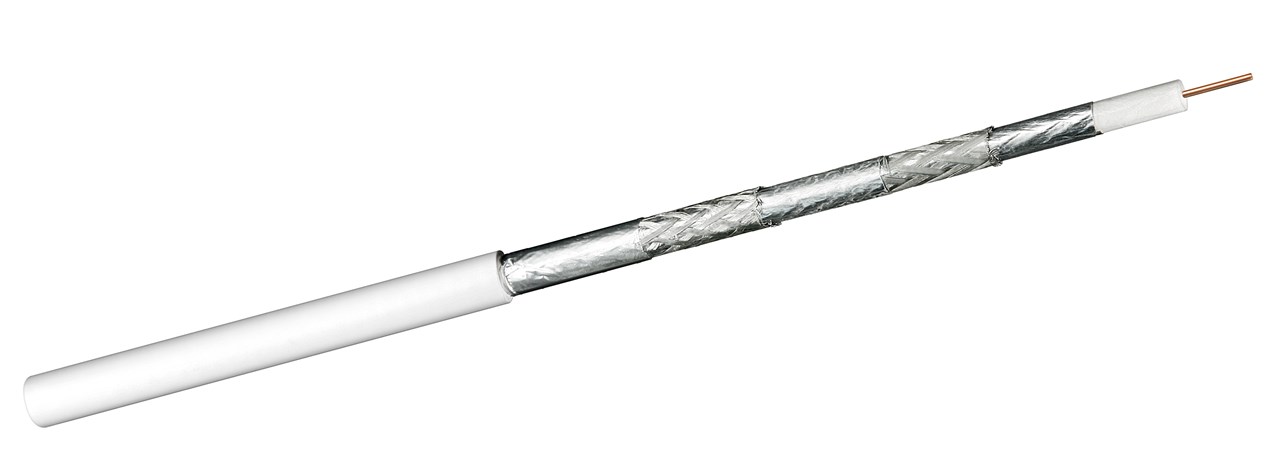

125 dB coax- antenna cable, 5x shielded, CU, white
Class A++ tested, for digital SAT- and CATV cable systems
- Tested and classified as Class A++ (as per EN 50117)
- Digital-ready for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
- Quintuple signal shield for first class protection over long distances
- Inner conductor made of specially conductive and flexible copper
- Meter scaling on the cable simplifies building installation
- The Goobay coaxial-/antenna cables meet the CPR (Construction Products Regulation) and thus comply with the Eca fire protection class.
Cable
| Shielding class |
Class A++ |
| Fire class (CPR) |
Eca |
| Meter scaling |
yes |
| Dielectric diameter |
4.8 |
| Type 3, shielding |
foil (aluminium) |
| Type 4, shielding |
braid (aluminium) 96x |
| Type 5, shielding |
foil (aluminium) |
| Cable length |
100 m |
| Cable type |
coaxial cable |
| Inner conductor material |
CU (copper) |
| inner conductor, core diameter |
1.1 mm |
| Shielding efficiency |
125 dB |
| Cable sheath diameter (approx.) |
8.1 mm |
| Number of shieldings |
5 x |
| Type 1, shielding |
double foil (aluminium) |
| Type 2, shielding |
braid (aluminium) 128x |
Signal transmission
General
| Outer sheath material |
PVC |
| Color |
white |
| Markings |
ECA_CPR, CE |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
70 °C |
| Packaging type |

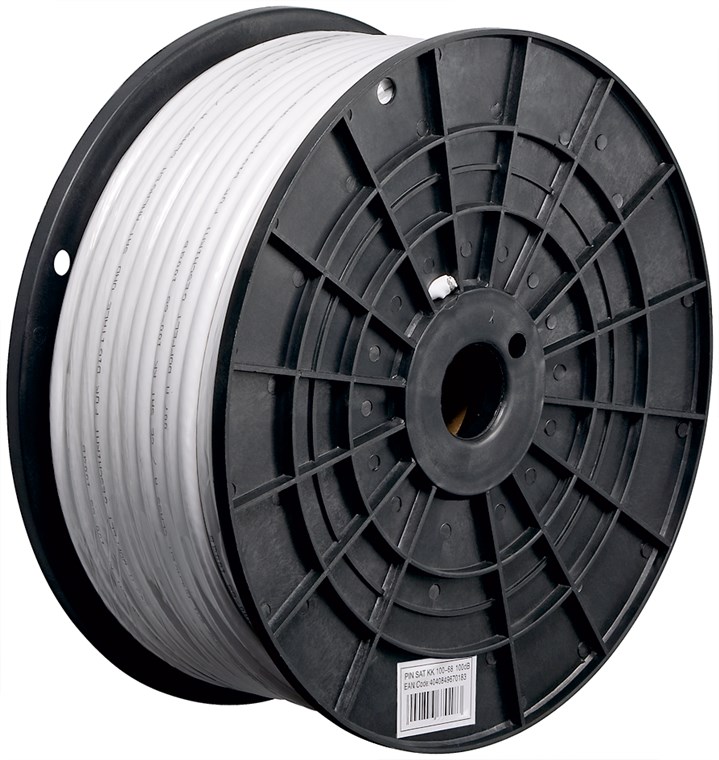

Cable spool-drum |
Dimensions / Weight
| Consumption Unit |
1 pc. cable reel |
| Weight |
7119 g |
