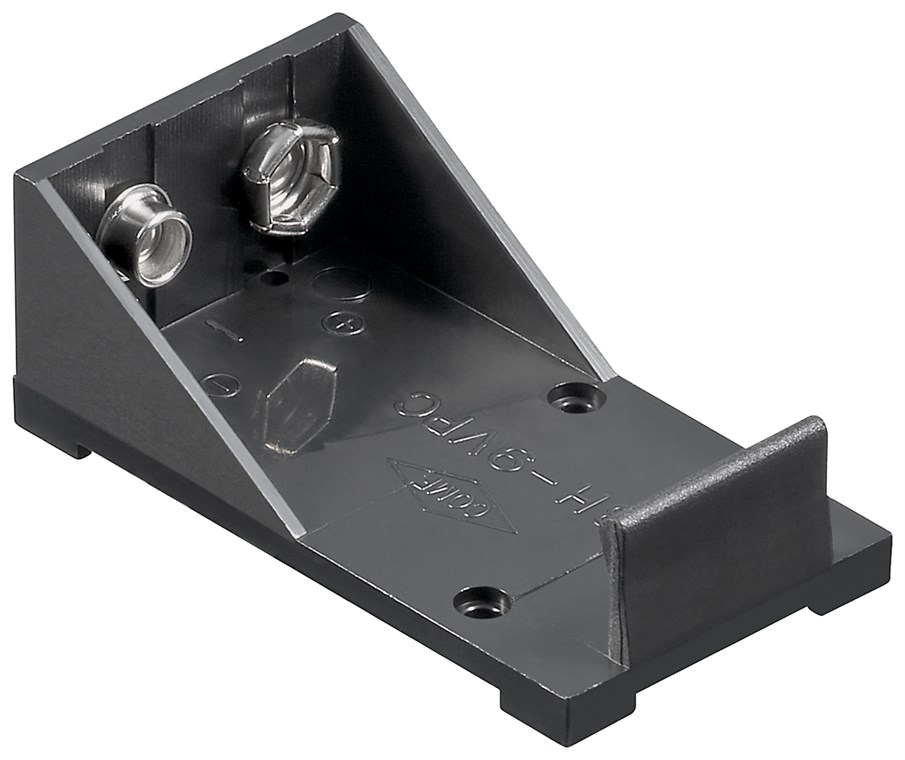

1x 9 V Block Battery Holder

Solder tail (U)

• The Goobay battery holder can be built into or attached to a battery-operated device.
• 1 9 V battery can be inserted into the black plastic open housing.
• The battery clip holds the 9 V battery securely and firmly in place and provides a constant power supply.
• The 9 V battery holder is equipped with a soldering lug (U).

Technical specifications

Battery

suitable IEC battery types	6F22, 6HR61, 6LR61/6LP3146
suitable battery size	9 V Block

Connections

Connection, type

Solder tail (U)

General

Color	black
Operating temperature from	-20 °C
Operating temperature up to	50 °C
Packaging type	Bulk

Dimensions / Weight

Consumption Unit	1 pc. bulk
Length	54.5 mm
Width	30 mm
Height	20.7 mm
