Product and packaging similar. Subject to modifications and errors.

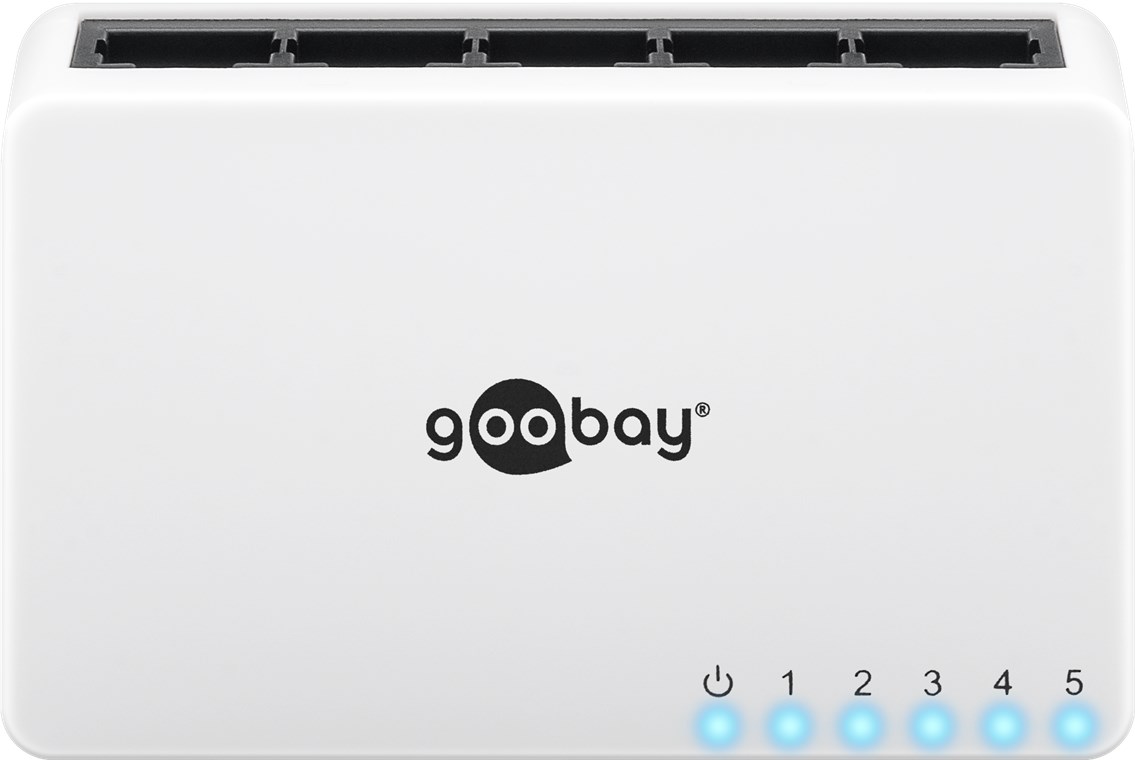

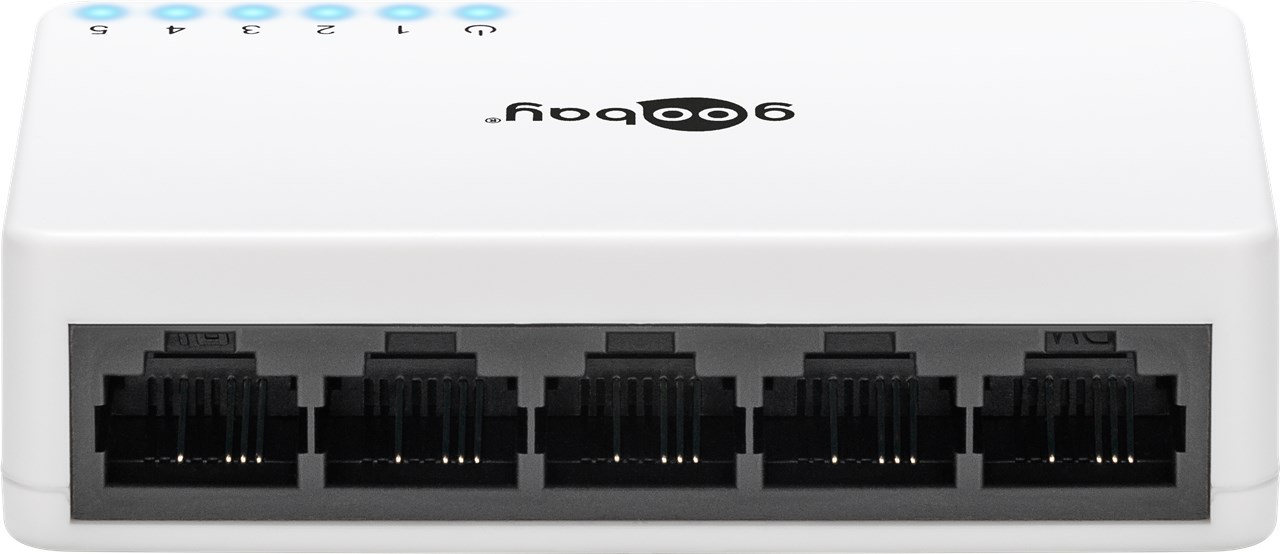

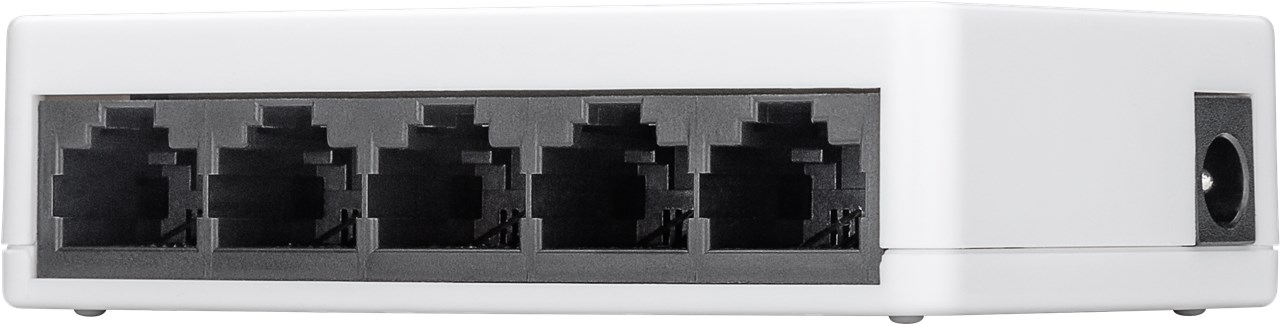

5-Port Fast Ethernet Switch
5x RJ45 sockets, Auto-Negotiation, 100 Mbit/s
Our network accessories transmit signals in top quality and speed. High-quality materials, robust housings and precisely fitting contacts distinguish our range of Ethernet switches. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- With the help of the desktop switch, devices within a network can communicate with each other and share information.
- Network switch with automatic detection of inputs and outputs
- Features the "store and forward" transmission method
- Green Power Ethernet allows the operation of a simple power and cost-saving network.
- Ethernet hub with Plug & Play application requires no additional crossover or uplink ports.
- Compatible with max. 10/100 Mbits (half duplex) and max.20/200 Mbits (full duplex)
- Supports the following standards: Auto Negotiation (Auto MDI/MDIX) for all RJ45 ports, IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX and IEEE 802.3x Flow Control
Connections
| Connection, type |
5x RJ45 female (8P8C) |
ErP
| Average active efficiency |
75.12 % |
| No-load power consumption |
0.08 W |
Device connections
General
| Color |
white |
| Markings |
WEEE, CE |
| Operating temperature up to |
40 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Width |
81 mm |
| Height |
21 mm |
| depth |
81 mm |
| Weight |
58 g |
Scope of delivery
| Assembly Material |
100-240 V (Euro), manual |

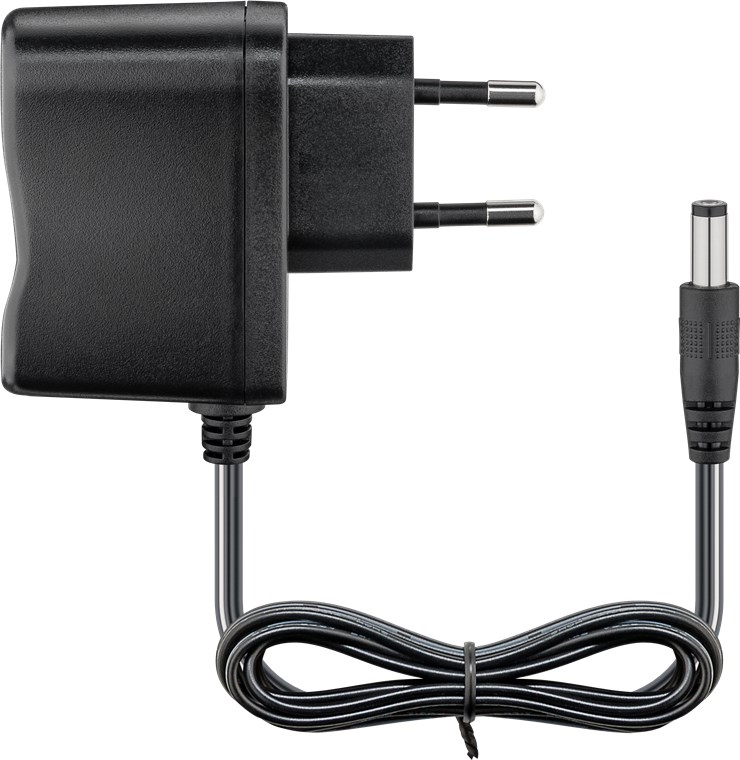

accessory - Power supply
| Cable Length |
1000 mm |
| Weight |
50 g |
| Dimensions |
2x55x75 |
| Output current |
1 A |
| Input AC frequency |
50/60 Hz |
| Input voltage |
220-240 V |
| Model identifier |
KT05W050100EU |
Language Scope
| packaging |
de, en, fr, it, es, nl, da, sv, pl, cs |
