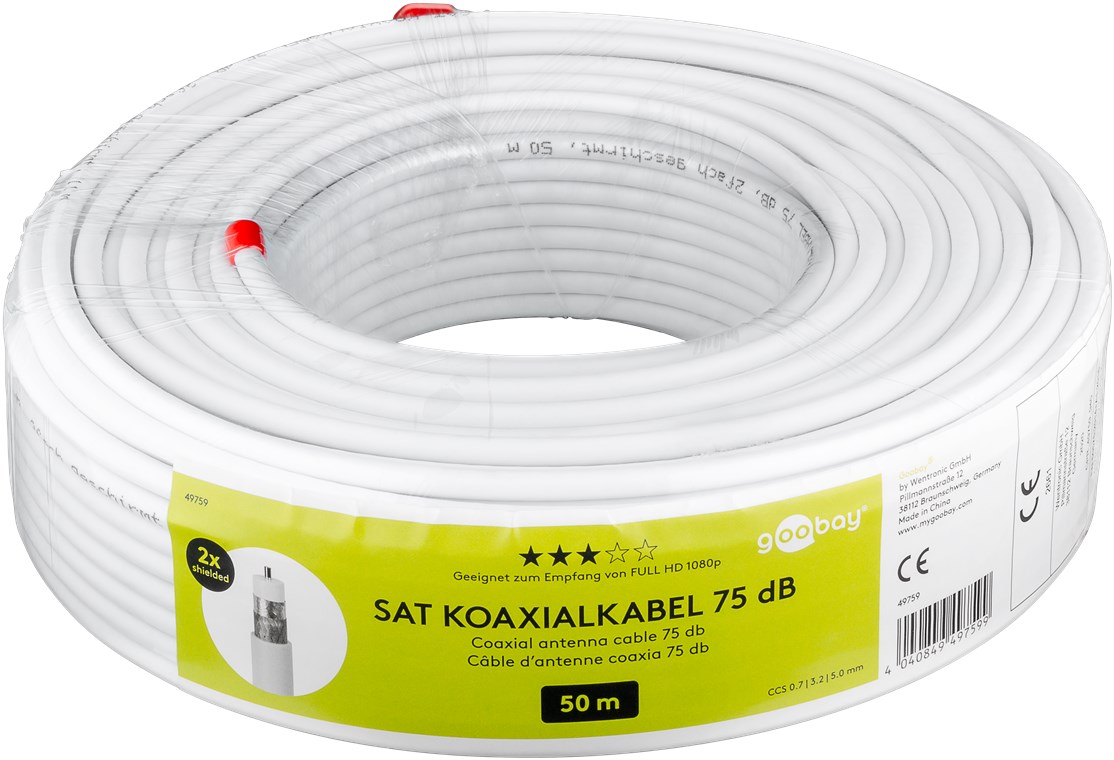

75 dB SAT Coaxial Cable, Double Shielded
for digital SAT and DVB-C systems with inner conductors made of steel and copper
- Satellite cable for connecting or extending e. g. cable TV or radio systems
- High-quality and flexible PVC sheathing guarantees protection against heat, cold and weather.
- TV aerial cable is digitally compatible for the installation of HDTV via DVB-S/S2, DVB-T/T2, DVB-C/C2.
- Antenna cable is double shielded for effective protection over long distances.
- Suitable for reception of Full HD 1080p
- Metre scaling is indicated on the coax cable
- Meets the CPR (Construction Products Regulation), therefore corresponding to the fire protection class.
Technical specifications
Cable
| Dielectric diameter | 3.3 |
| Cable length | 50 m |
| inner conductor, core diameter | 0.7 mm |
| Shielding efficiency | 75 dB |
| Cable sheath diameter (approx.) | 5 mm |

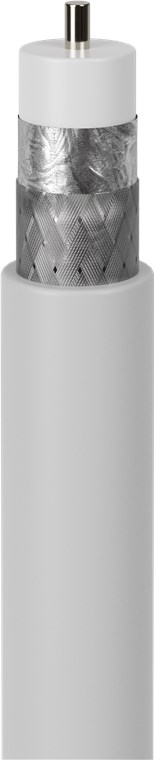

| Number of shieldings | 2 x |
| Type 1, shielding | double foil (aluminium) |
| Type 2, shielding | braid (aluminium) 32x |
Signal transmission
| Impedance | 75 Ω |
General
| Outer sheath material | PVC |
| Color | white |
| Operating temperature from | -20 °C |
| Operating temperature up to | 70 °C |
| Packaging type | Cable ring-coil |
Dimensions / Weight
| Consumption Unit | 1 pc. coil |
£7.99 RRP
Packing units:
1 / 12
