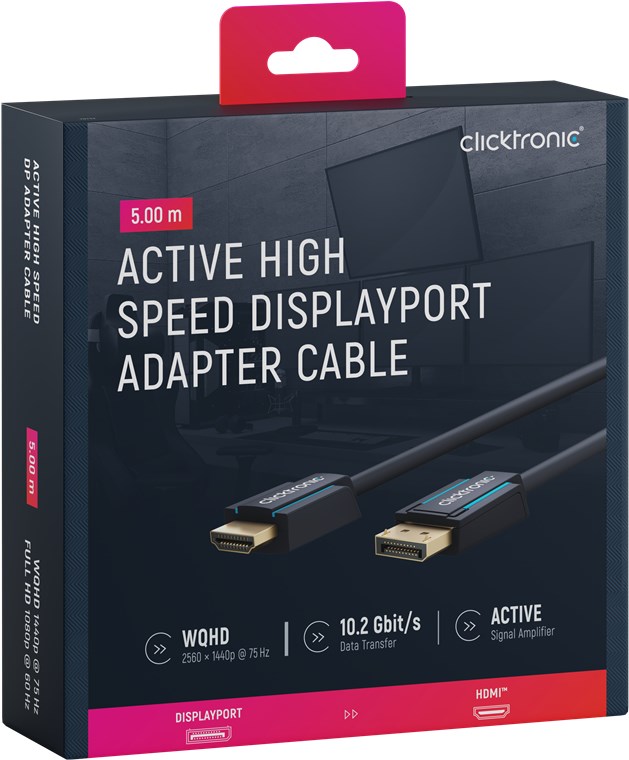

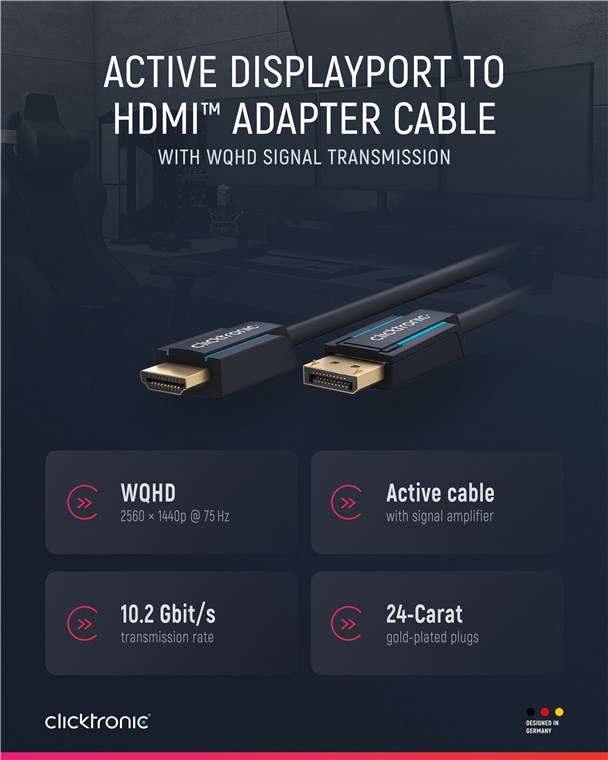

Active DisplayPort™ to HDMI™ Adapter Cable (Full HD)
Premium cable | 1x DisplayPort™ plug >> 1x HDMI™ plug | 5.0 m | WQHD @ 75 Hz

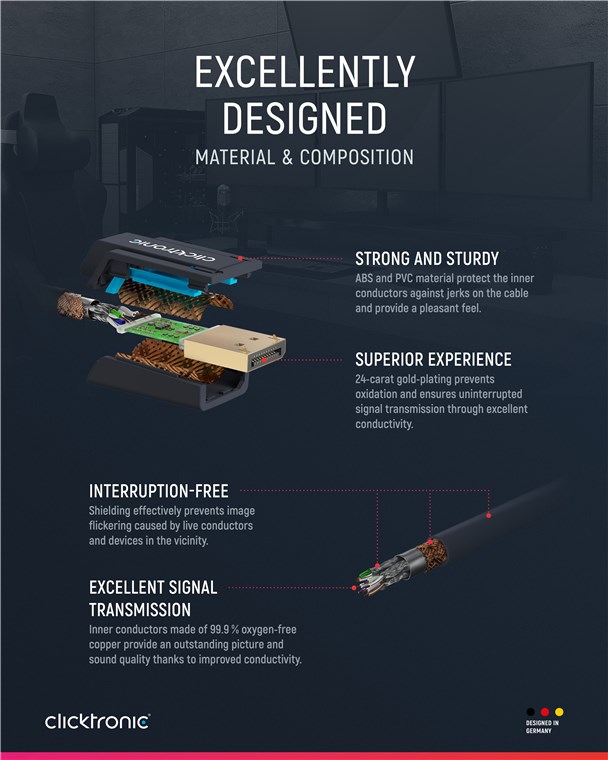

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our DisplayPort™ cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors transmit audio and video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic DisplayPort™ cable enables a razor-sharp image and has a very fast transmission speed.

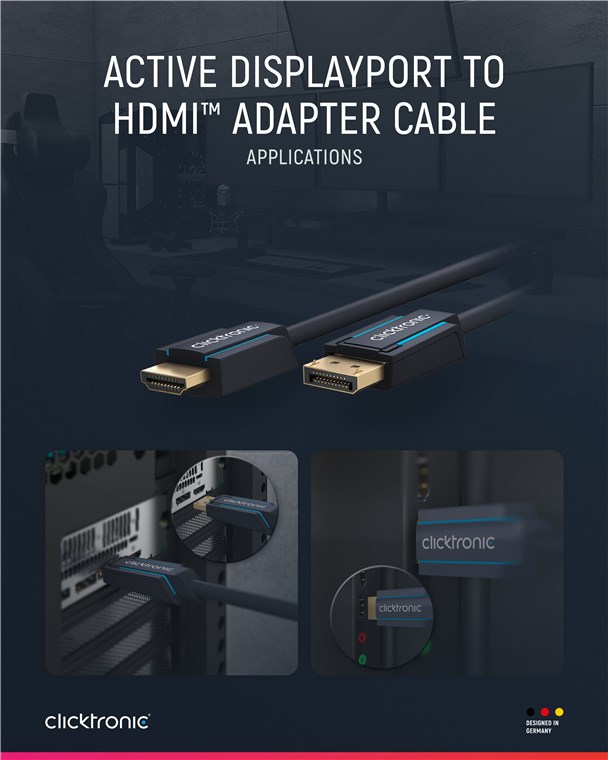

- DisplayPort™-to-HDMI™ cable connects external monitors and projectors to PC, laptop or Mac.
- High-resolution signal transmission with WQHD @ 75 Hz (1440p) and Full HD @ 60 Hz (1080p) for crystal-clear sound and razor-sharp video and picture quality
- Monitor cable with max. transfer rate of up to 10.2 Gbit/s for an optimal entertainment experience
- Integrated signal amplifier prevents signal loss, making the Clicktronic cable especially suitable for bridging longer distances.
- 24-carat gold-plated DisplayPort™ connectors for minimal transmission resistance and smooth image transmission without delays
- DisplayPort™ connector with mechanical connector lock prevents loose contacts.
- Signal direction: Due to the integrated signal amplifier, the DisplayPort™ cable must be connected so that the printed triangles point from the transmitter (e.g. PC) to the receiver (e.g. monitor).
Labelling
| Disclaimer |
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. |
Connections
| Connection, housing material |
ABS, PVC |
| Connection, type |
DisplayPort™ male |
| Connection, contact material |
gold (24 kt) |
| Connection 2, type |
HDMI™ connector male (type A) |
| Connection, shielding |
yes |
| Kink protection |
both sides |
Cable
| Cable type |
round cable |
| Material cable sheath |
PVC |
| Cable length |
5 m |
| Inner conductor material |
CU (copper) |
| AWG |
24 |
| Number of shieldings |
3 x |
| Type 1, shielding |
braid (copper) 112x |
| Type 2, shielding |
foil (aluminium) |
| Type 3, shielding |
foil (aluminium) |
| Cable sheath diameter (approx.) |
7.3 mm |
| LSZH compliant |
no |
| Ferrite core |
no |
Signal transmission
| max. transmission rate |
10.2 Gbit/s |
| Max. resolution |
WQHD (2560x1440p) 75 Hz |
General
| Markings |
WEEE, CE |
| Operating temperature from |
-10 °C |
| Operating temperature up to |
80 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
warranty
