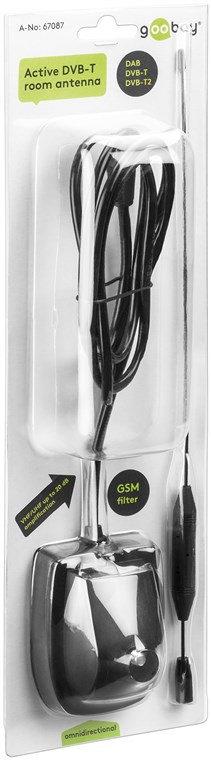

Product and packaging similar. Subject to modifications and errors.

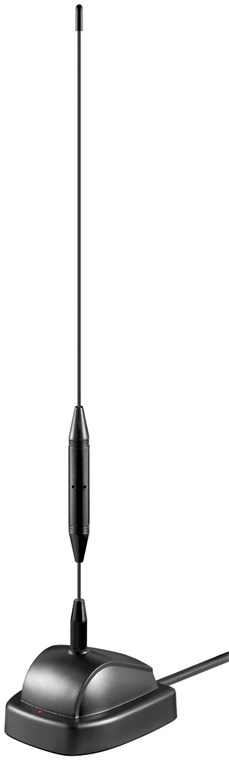

Active DVB-T2 (HD) Indoor Antenna
18.5 dBi/21.5 dBi antenna for receiving DVB-T/DVB-T2 HD programmes
- Indoor aerial for analogue and digital terrestrial radio and television reception, can be used indoors
- For receiving analogue and digital TV signals in the VHF range (174 MHz - 230 MHz) and UHF range (470 MHz - 862 MHz)
- Equipped with a blocking filter against GSM interference
- The integrated amplifier is supplied with a voltage of 5 V (100 mA).
- Shielded coaxial cable and coaxial plug for interference-free reception
- Also suitable for the reception of digital radio programmes (DAB)
- Omnidirectional and therefore no realignment (horizontal/vertical) required with differently polarised transmitters
Signal transmission
| Directivity pattern |
omnidirectional |
| Frequency Range VHF from |
174 |
| Frequency range VHF to |
230 |
| Frequency Range UHF from |
470 |
| Frequency range UHF to |
862 |
| antenna gain VHF |
21.5 dBi max. |
| antenna gain UHF |
18.5 dBi max. |
| Signal amplification |
yes |
General
| antenna Type |
Indoor Antenna |
| Color |
black |
| Markings |
CE, WEEE, Goobay_DVB-T2_HD |
| Packaging type |
Retail Blister |
Dimensions / Weight
| Consumption Unit |
1 pc. in blister |
| Height |
355 mm |
