Product and packaging similar. Subject to modifications and errors.

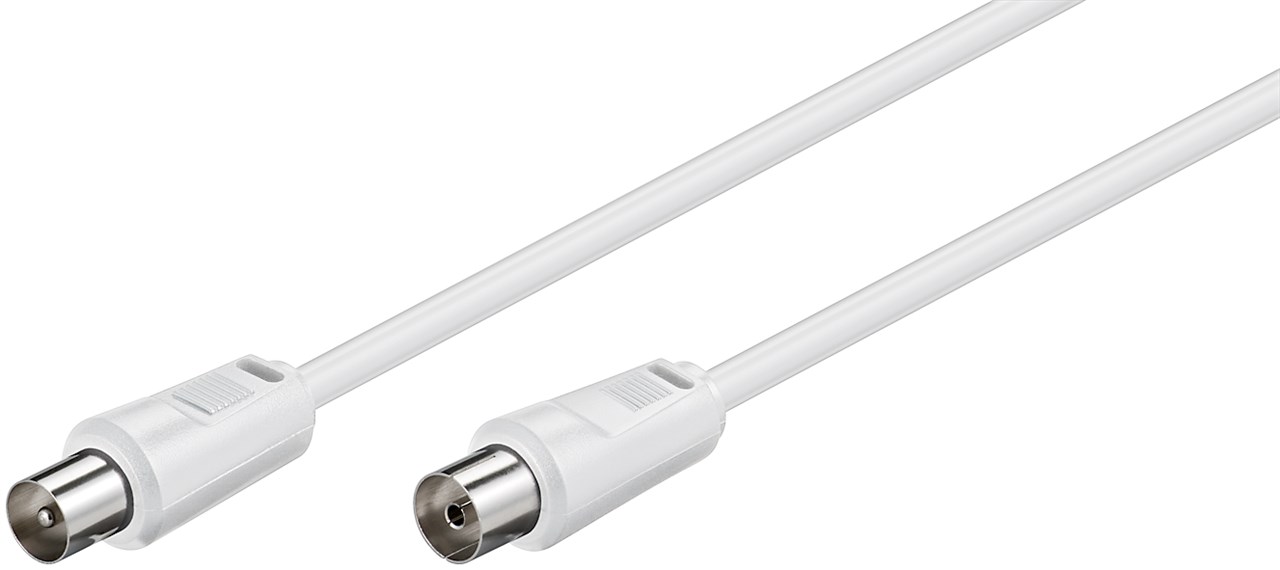

Antenna Cable (<70 dB), Double Shielded
coaxial plug > coaxial socket
- Double shielded satellite cable for interference-free transmission
- Molded plug on both sides to protect against dust, dirt and mechanical stresses
- Long-term conductivity of the coaxial cable is guaranteed as gold-plated contacts do not corrode.
- TV aerial cable for connecting devices with a coaxial connection such as TV sets, receivers and radios
Connections
| Connection 2, type |
Coaxial female (socket) |
| Connection, type |
Coaxial male (plug) |
Cable
| Material cable sheath |
PVC |
| Cable length |
10 m |
| Cable type |
coaxial cable |
| Inner conductor material |
CCS |
| Shielding efficiency |
70 dB |
| inner conductor, core diameter |
0.5 mm |
| Cable sheath diameter (approx.) |
5 mm |
| Number of shieldings |
2 x |
| Type 1, shielding |
foil (aluminium) |
| Type 2, shielding |
braid (aluminium) 32x |
Signal transmission
General
| Color |
white |
| Markings |
WEEE, CE |
| Packaging type |
Bulk |
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
SCIP
| SCIP no. |
f520f7bd-d916-43e1-9728-3006be002589 |
| chemical substance |
Pb |
| CAS no. |
7439-92-1 |
£5.99 RRP
Packing units:
1 / 24 / 48
