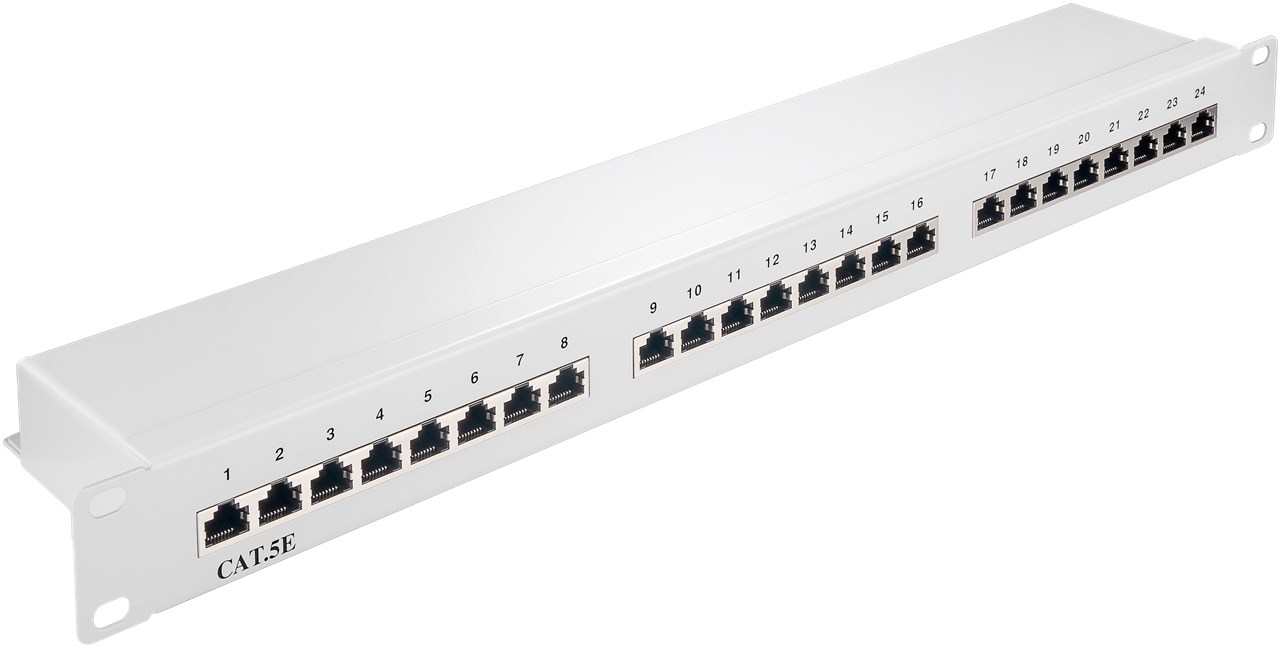

CAT 5e 19-inch (48.3 cm) Patch Panel, 24 Port (1 U)
STP shielded, grey
Our patch panels have a robust metal housing with shielded slots for an excellent connection. Simply select a panel with 8, 12 or 24 ports to easily connect all your Ethernet cables to the network patch panel. Goobay always provides the perfect products for your network needs. Simply. All. You need!
- 24-port patch panel with RJ45 sockets for connecting terminated CAT 5e network cables

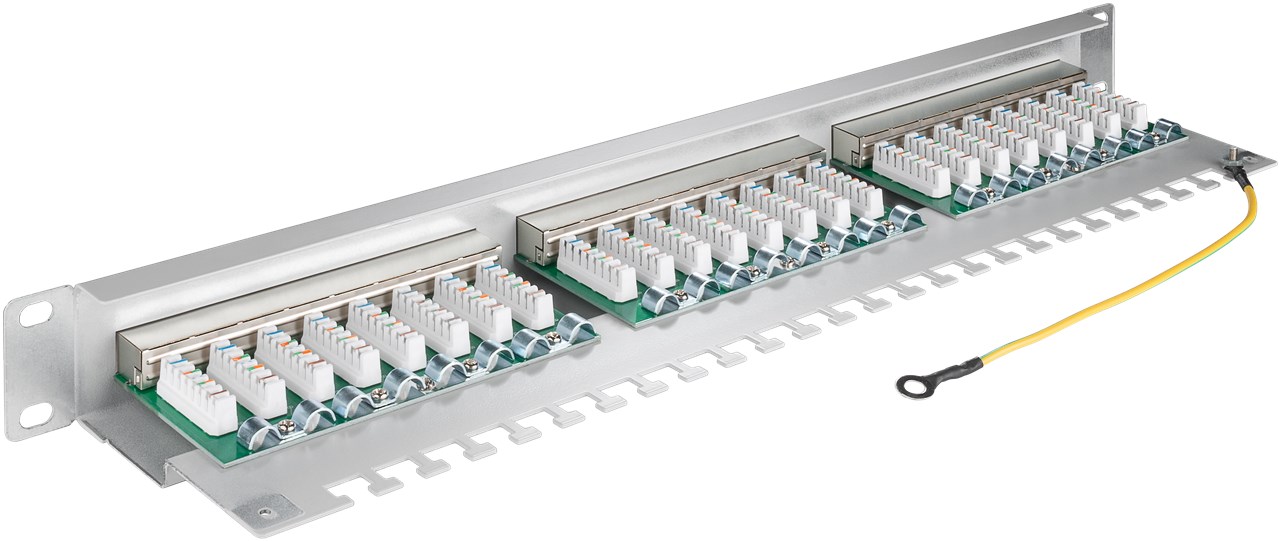

- Designed for solderless, screwless and stripping-free connection technology (IDC mounting, tool required)
- 19-inch patch panel incl. fixing screws for rack mounting or mounting in server cabinets (48.3 cm)
- CAT 5e distributor for cable diameters up to 0.64 mm (AWG 22-26)
- Distribution panel with numbered ports for ideal cable organisation
- Terminal strips with colour coding according to TIA 568 A/B for easy and correct connections
- Mounting screws included
Connections
| Connection, type |
24 RJ45 male (8P8C) |
| Connection 2, type |
for IDC connection |
| Connection, shielding |
yes |
Cable
| Specification |
CAT 5e |
| Shielding class |
STP |
Signal transmission
General
| Color |
grey |
| Markings |
WEEE, CE |
| Packaging type |
Brown Box with Label |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Width |
483 mm |
| Height |
44 mm |
| depth |
104 mm |
