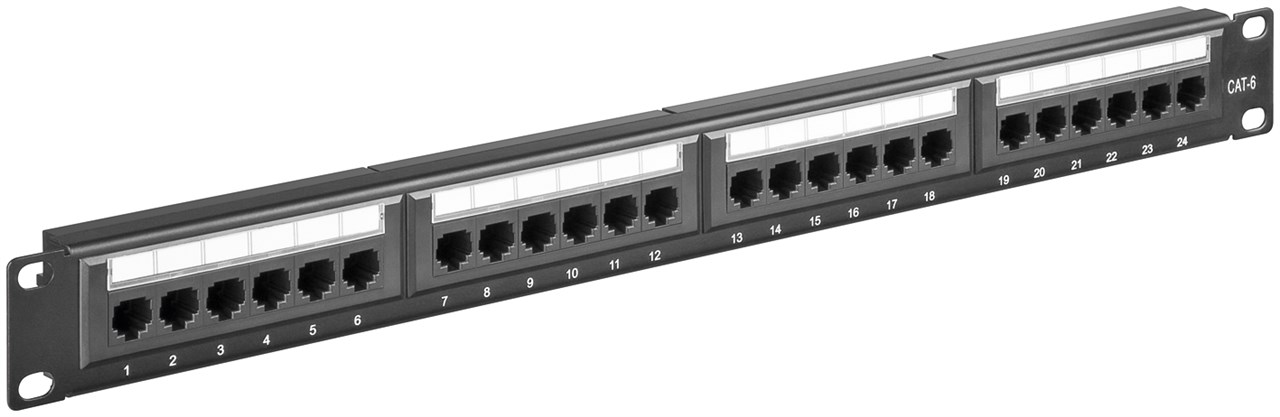

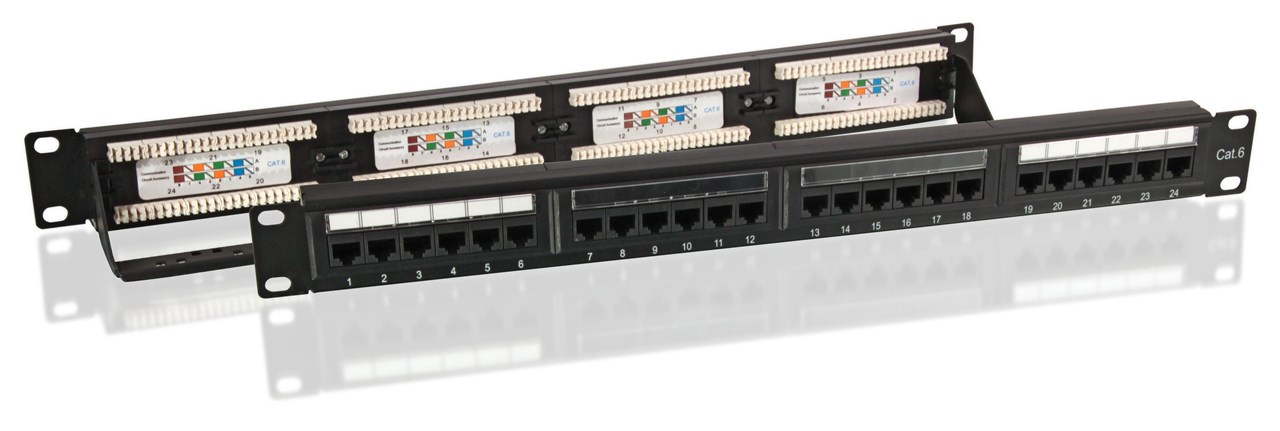

CAT 6 19 inch (48.3 cm) Patch Panel, 24 Port
UTP unshielded
Our patch panels have a robust metal housing with shielded slots for an excellent connection. Simply select a panel with 8, 12 or 24 ports to easily connect all your Ethernet cables to the network patch panel. Goobay always provides the perfect products for your network needs. Simply. All. You need!
- 24-port patch panel with RJ45 sockets for connecting terminated CAT 6 network cables
- Designed for solderless, screwless and stripping-free connection technology (IDC mounting, tool required)
- 19-inch patch panel incl. fixing screws for rack mounting or mounting in server cabinets (48.3 cm)
- CAT 6 distributor for cable diameters up to 0.64 mm (AWG 22-26)
- Unshielded, high-quality metal housing for a long service life
- Distribution panel with numbered ports for a clean cable management

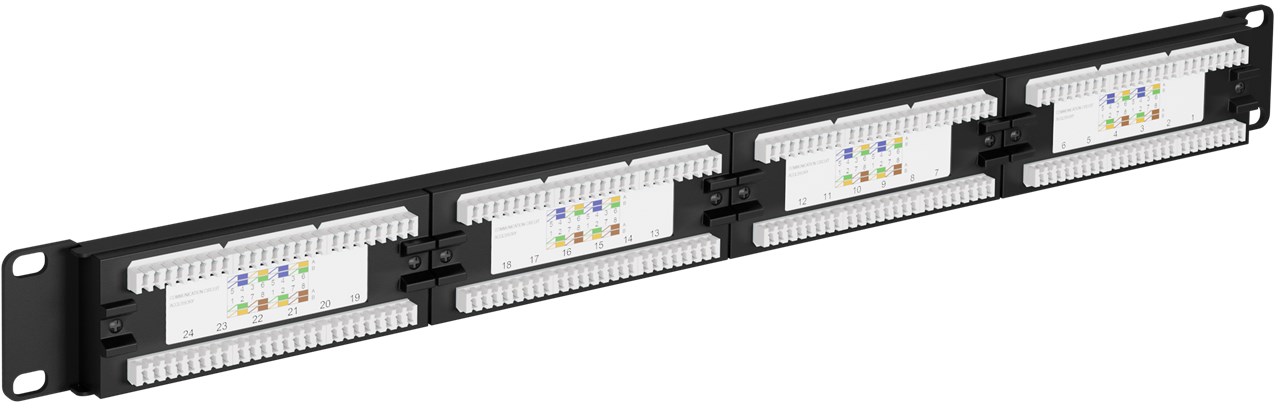

- Terminal strips with colour coding according to TIA 568 A/B for an easy and correct connection
Technical specifications
Connections
| Connection, type | 24 RJ45 male (8P8C) |
| Connection 2, type | for IDC connection |
| Connection, shielding | no |
Cable
| Specification | CAT 6 |
| Shielding class | UTP |
Signal transmission
| max. bandwidth | 250 MHz |
General
| Color | black |
| Markings | WEEE, CE |
| Packaging type | Brown Box with Label |
Dimensions / Weight
| Consumption Unit | 1 pc. in cardboard box |
| Width | 483 mm |
| Height | 44 mm |
| depth | 73 mm |
£26.99 RRP
Packing units:
1 / 20
