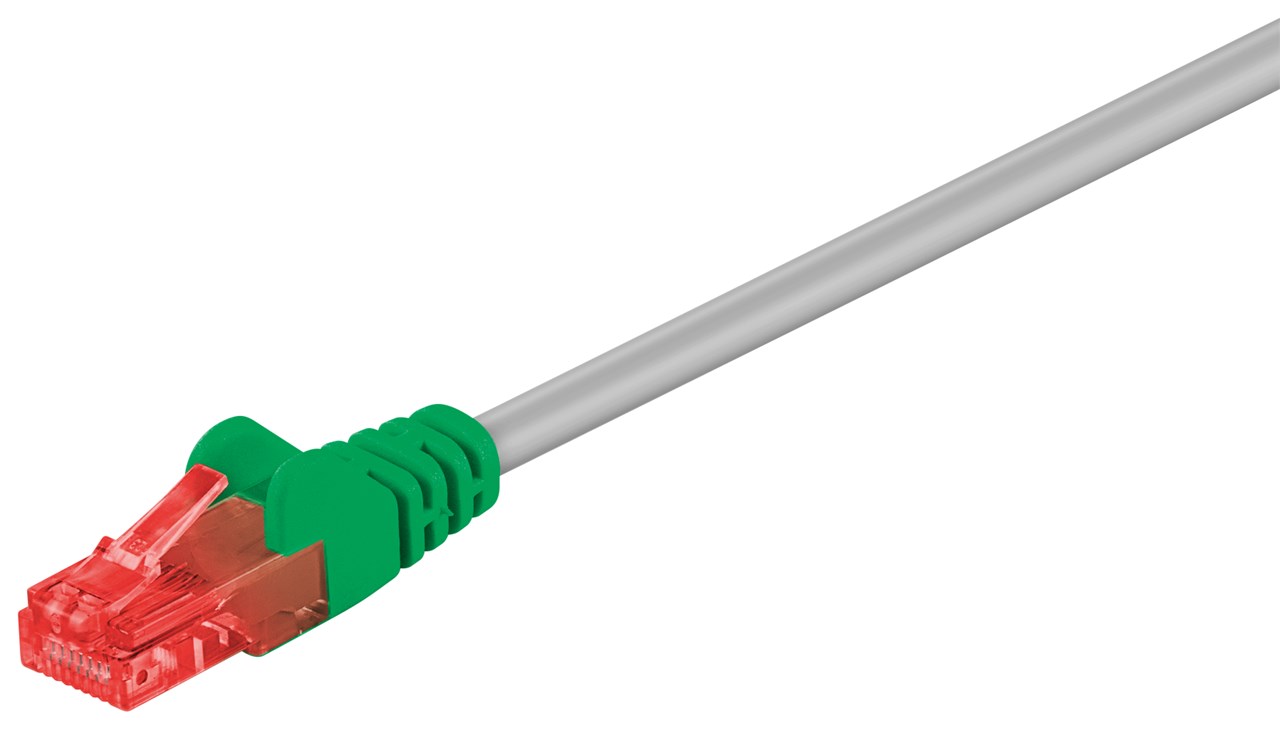

CAT 6 Crossover Patch Cable, U/UTP, grey, Green
copper-clad aluminium wire (CCA)
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Cross-wired, unshielded CAT 6 LAN cable with 2x RJ45 plugs for connecting network components
- High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
- The CAT 6 crossover cable is suitable for 10 Gigabit Ethernet with speeds of up to 10/100/1000/10000 Mbit/s.
- Length of the network cable indicated on the overmoulded slimline strain relief.
- Network connector: cross-wired, pair sequence according to EIA/TIA 568 A/B
Technical specifications
Connections
| Latch protection | both sides |
| Connection, shielding | no |
| Connection 2, type | RJ45 male (8P8C) |
| Kink protection | both sides |
| Connection, type | RJ45 male (8P8C) |
Cable
| Cable type | round cable |
| Specification | CAT 6 |
| Cable length | 2 m |
| Cable sheath diameter (approx.) | 5.8 mm |
| Shielding class | U/UTP |
| Inner conductor material | CCA (copper-clad aluminium) |
| AWG | 24/7 (stranded) |
| bending radius > | 46.4 mm |
| Material cable sheath | PVC |
Signal transmission
| max. bandwidth | 250 MHz |
General
| Color | grey, Green |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
| Packaging type | Cable Tag |
Dimensions / Weight
| Consumption Unit | 1 pc. bulk |
£4.99 RRP
Packing units:
1 / 140
