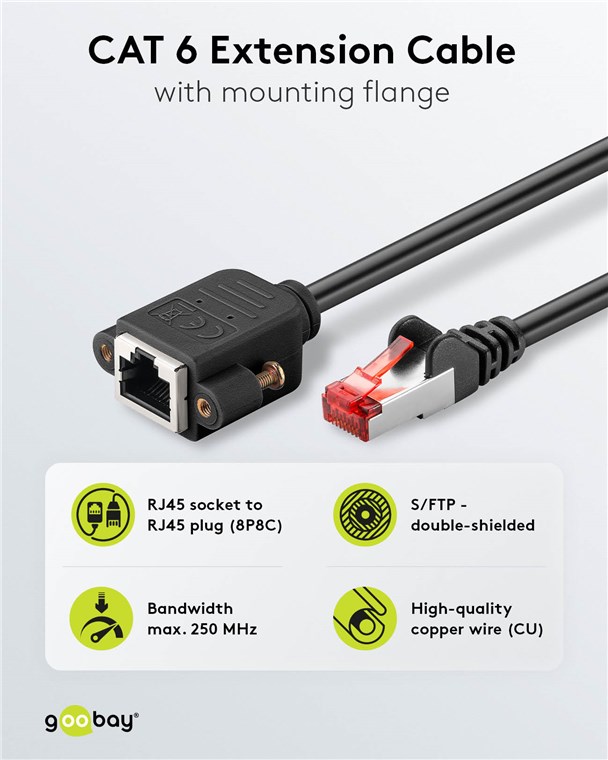

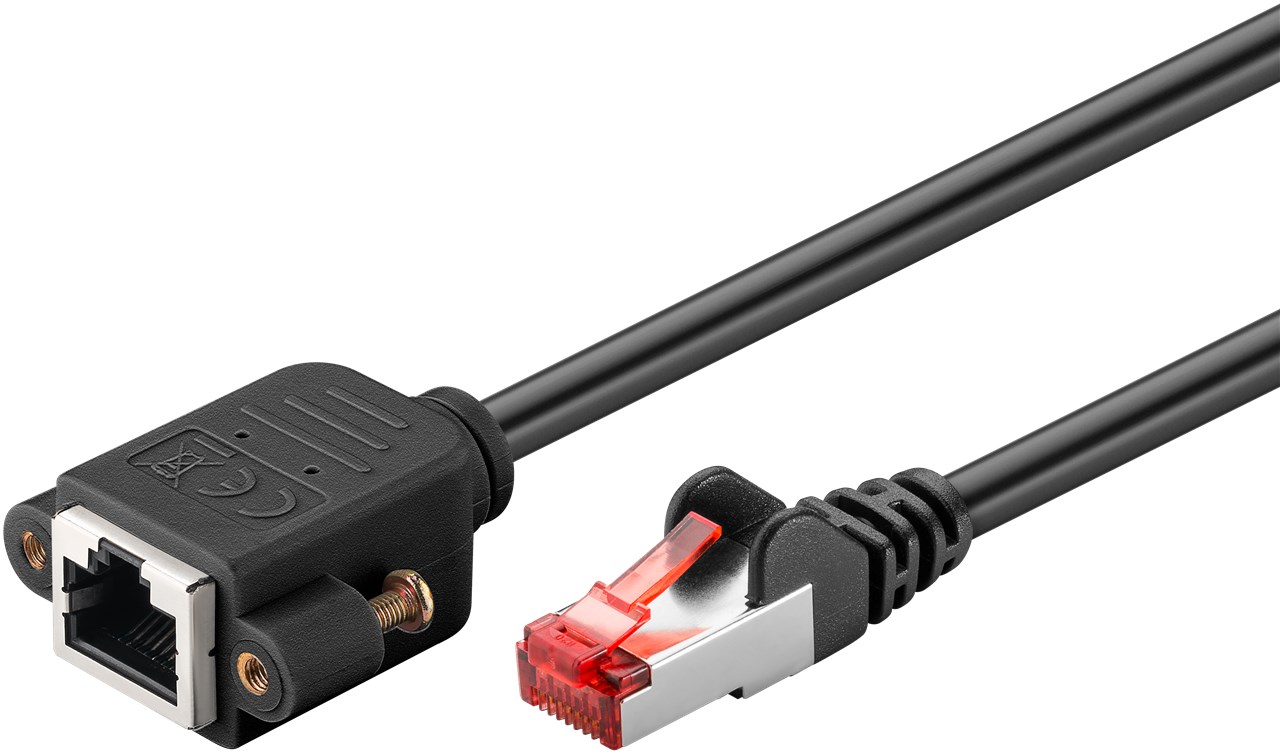

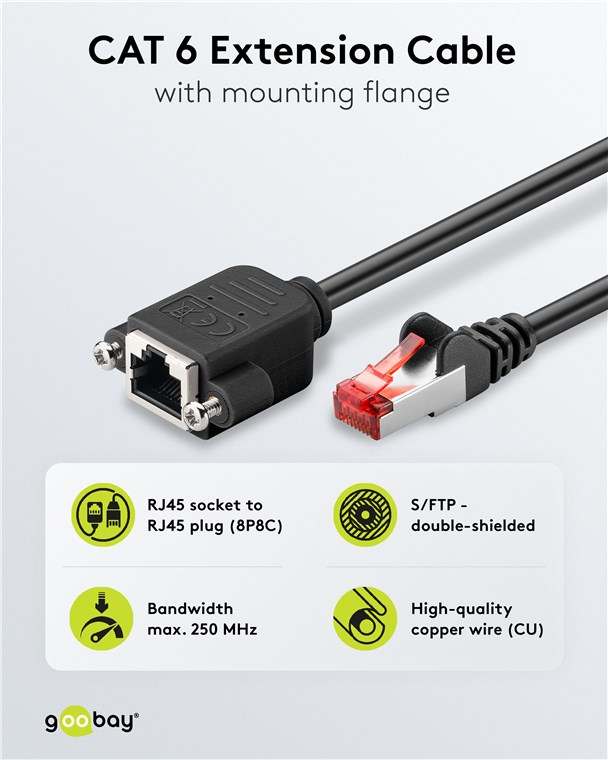

CAT 6 Extension Cable, S/FTP (PiMF), black
copper conductor (CU), halogen-free cable sheath (LSZH), with mounting flange
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

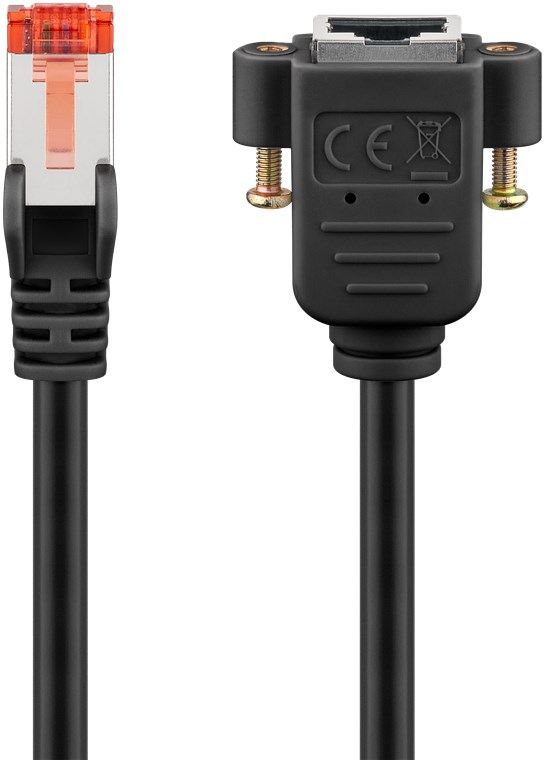

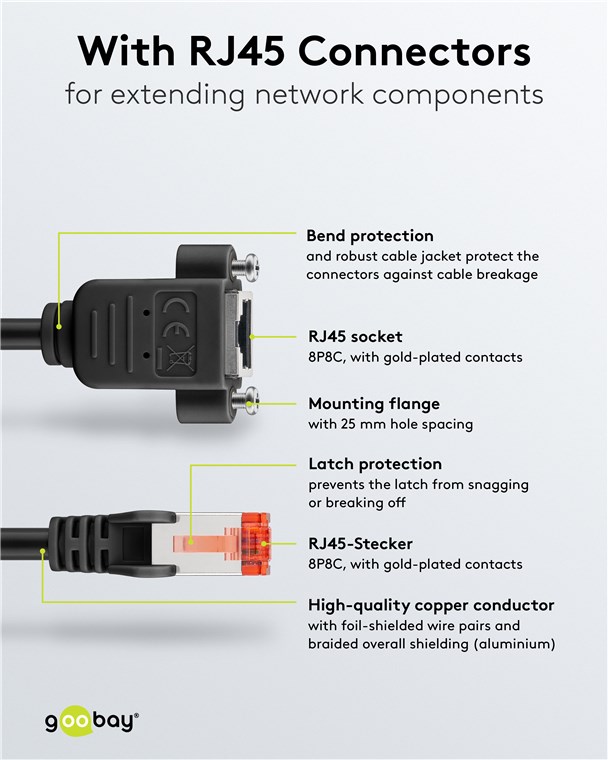

- Double-shielded LAN cable extension with RJ45 plugs for connecting network components

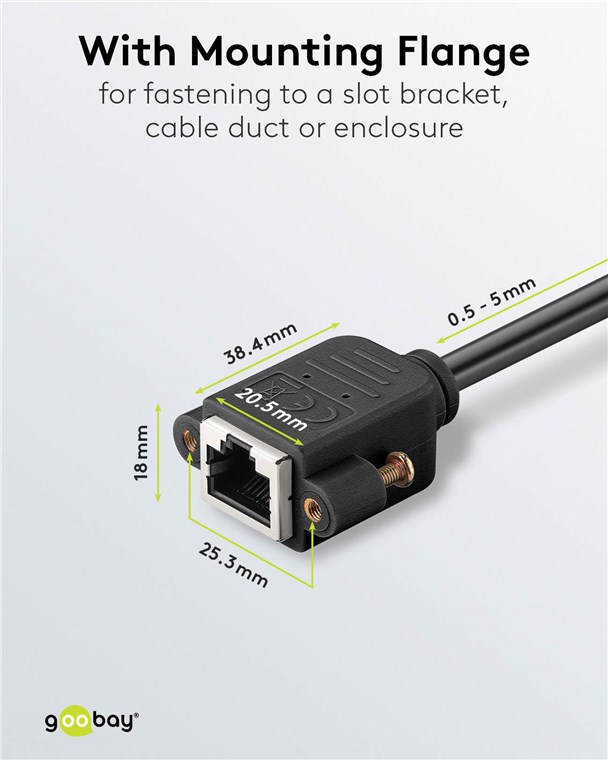

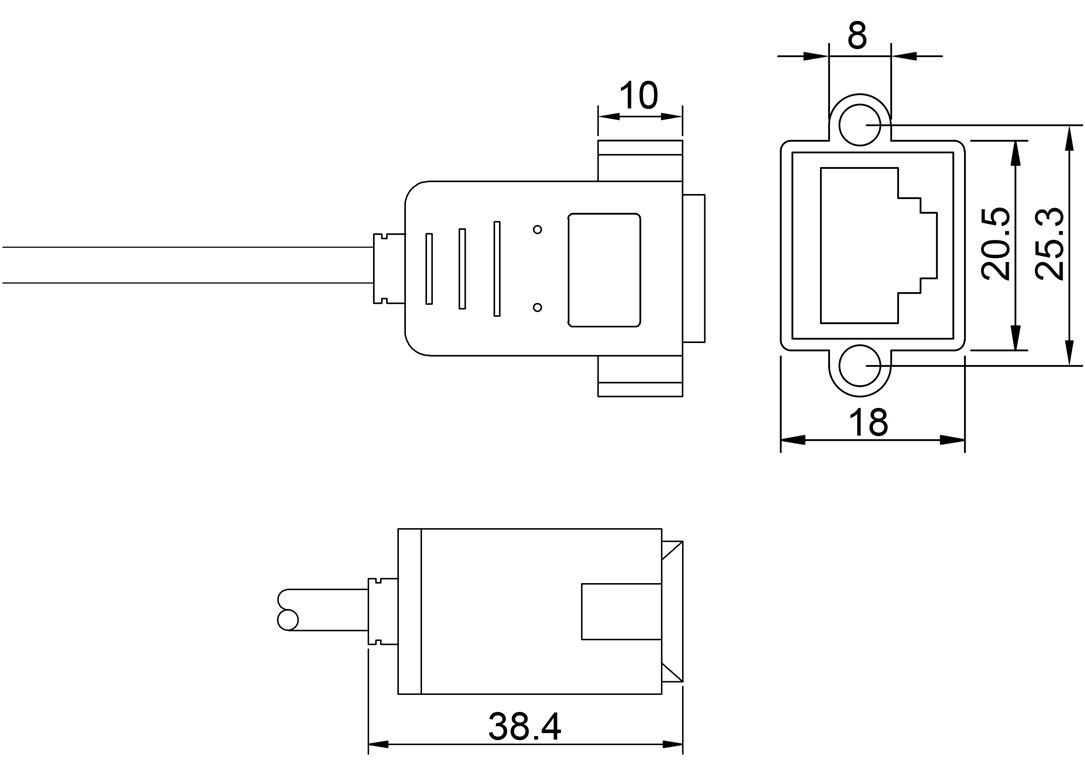

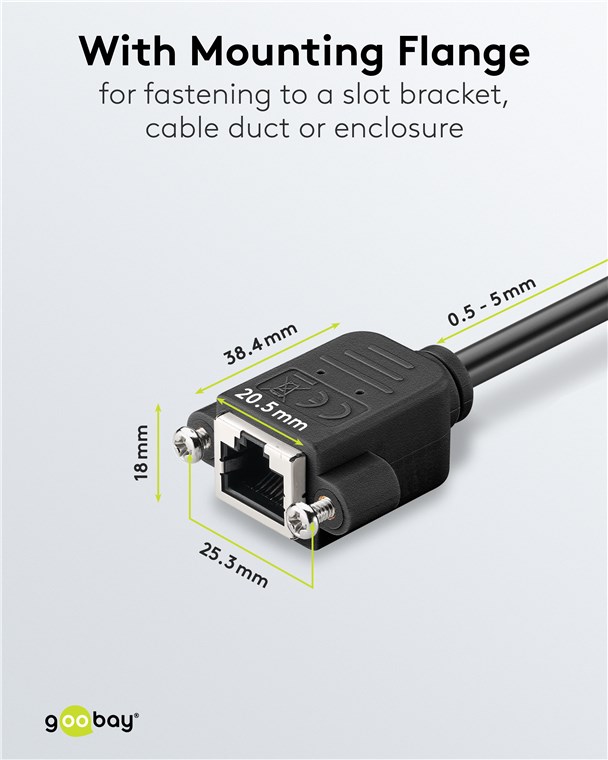

- Mounting flange with 25 mm hole spacing for fastening e.g. to a slot bracket, cable duct or enclosure with corresponding cut-out
- High-quality copper-clad aluminium wire (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath

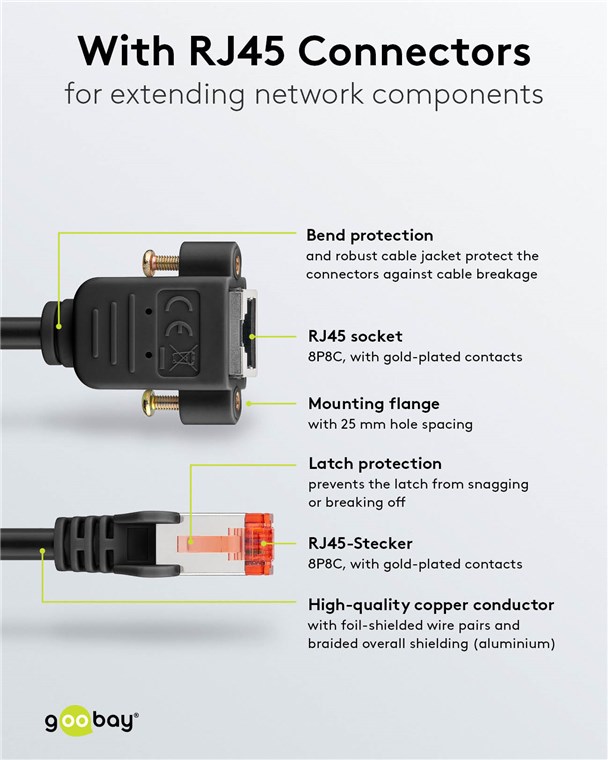

- Bend protection and a sturdy jacket effectively protect the network cable from breakage.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.

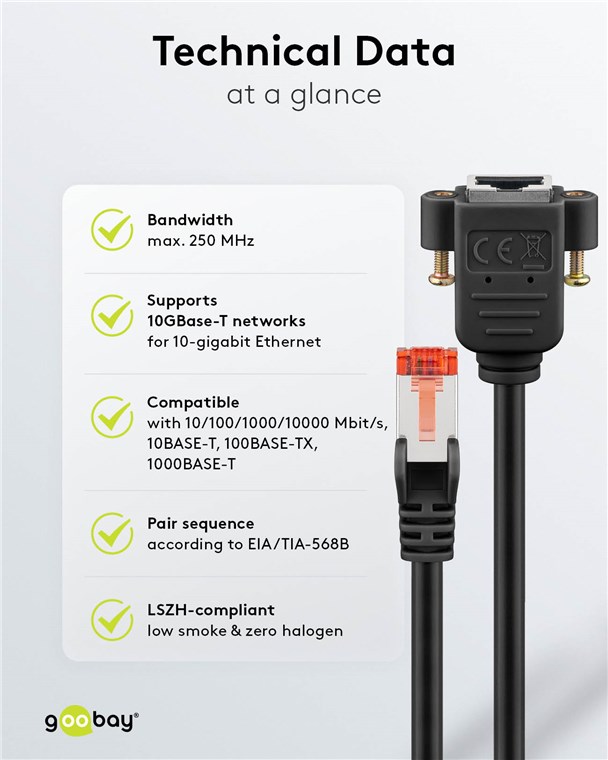

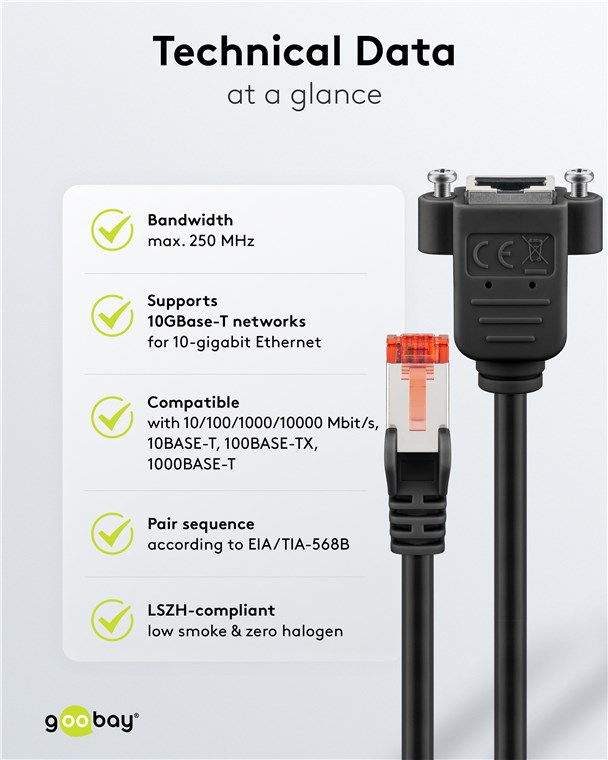

- Network connector: pair sequence according to EIA/TIA 568B, pinout: 1:1, suitable for 10 Gigabit Ethernet 10GBASE-T < 55 m, 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
Technical specifications
Connections
| Connection, type | RJ45 female (8P8C) |
| Contacting | EIA/TIA-568 B |
| Latch protection | unilaterally |
| Connection 2, type | RJ45 male (8P8C) |
| Connection, contact material | gold-plated 3µm |
| Connection, shielding | yes |
| Kink protection | both sides |
Cable
| Material cable sheath | LSZH |
| Specification | CAT 6 |
| Shielding class | S/FTP (PiMF) |
| LSZH compliant | yes |
| Cable length | 0.5 m |
| Cable type | round cable |
| Inner conductor material | CU (copper) |
| Cable sheath diameter (approx.) | 5.8 mm |
| Number of shieldings | 2 x |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| AWG | 27/7 (stranded) |
Signal transmission
| max. bandwidth | 250 MHz |
| Max. resolution | 10K/30Hz (10240x4320) |
General
| Outer sheath material | LSZH |
| Color | black |
| Markings | WEEE, CE |
| Special feature | Length indication on connector |
| Operating temperature from | -20 °C |
| Operating temperature up to | 75 °C |
| Packaging type | Cable Tag |
Dimensions / Weight
| Consumption Unit | 1 pc. bulk |
£5.99 RRP
Packing units:
1 / 200
