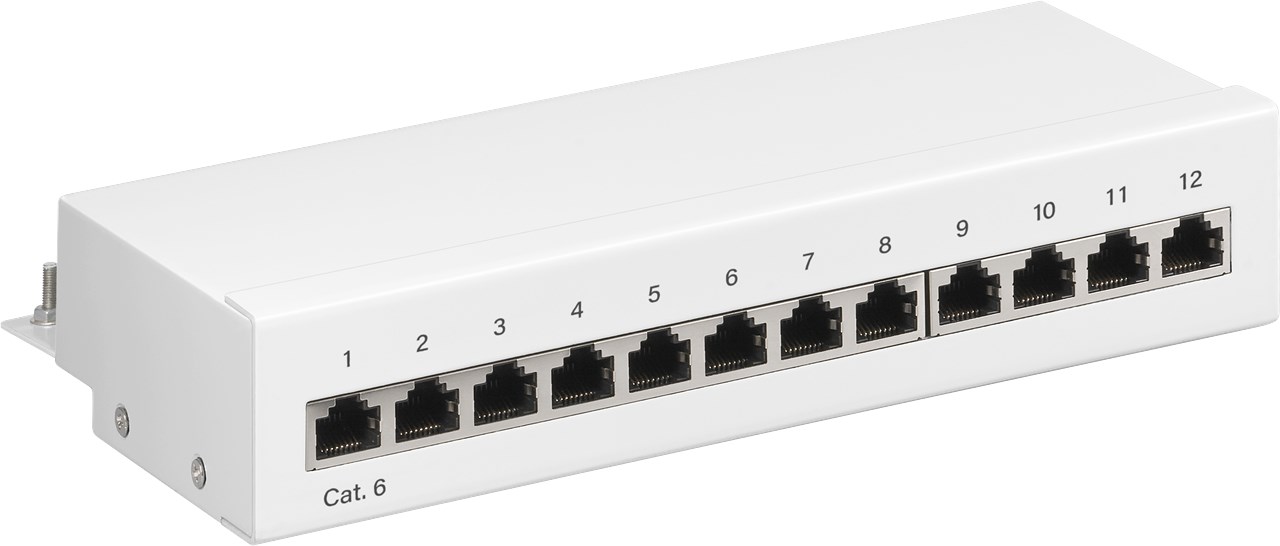

CAT 6 Mini/Desktop Patch Panel, 12 Port
STP shielded
Our patch panels have a robust metal housing with shielded slots for an excellent connection. Simply select a panel with 8, 12 or 24 ports to easily connect all your Ethernet cables to the network patch panel. Goobay always provides the perfect products for your network needs. Simply. All. You need!
- 12-port patch panel with RJ45 sockets for connecting terminated CAT 6 network cables

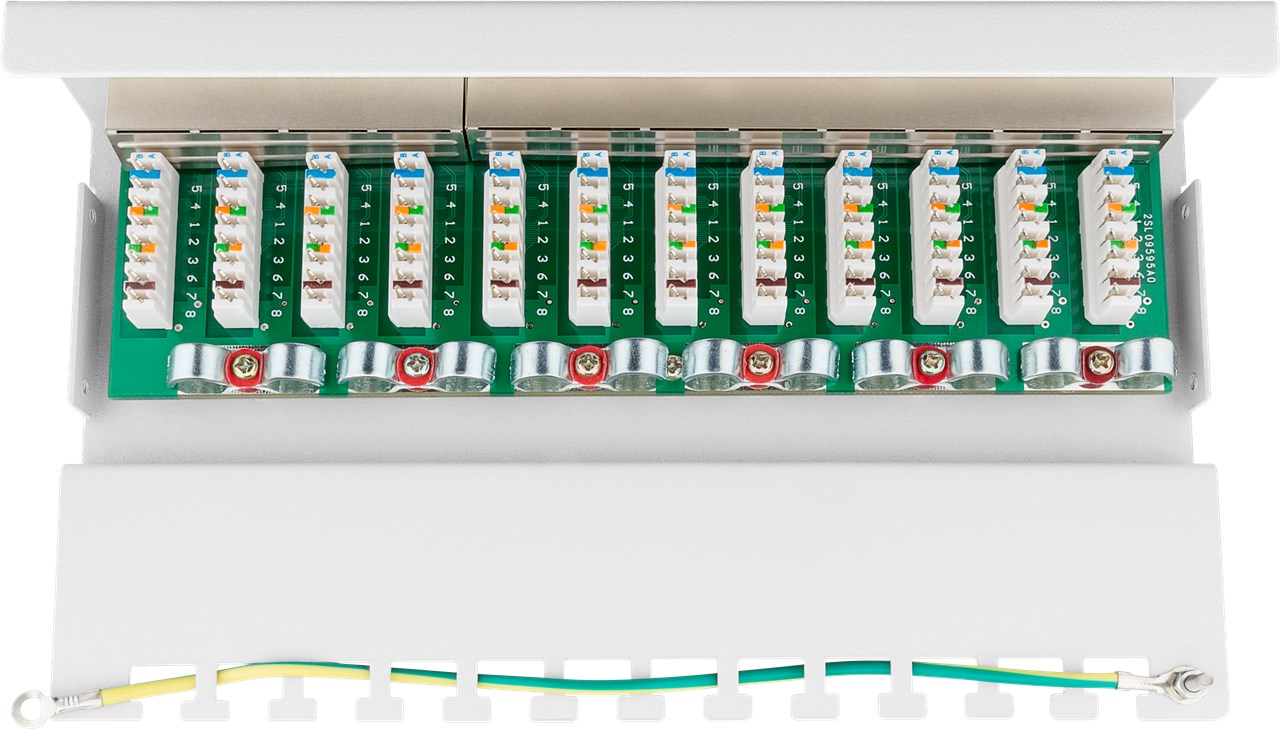

- Designed for solderless, screwless and stripping-free connection technology (IDC mounting, tool required)
- Patch panel incl. fixing screws for mounting on wall and desktop
- CAT 6 distributor for cable diameters up to 0.64 mm (AWG 22-26)
- Shielded ports in high-quality metal housing with "Easy Open" function (opening without screws and tools)

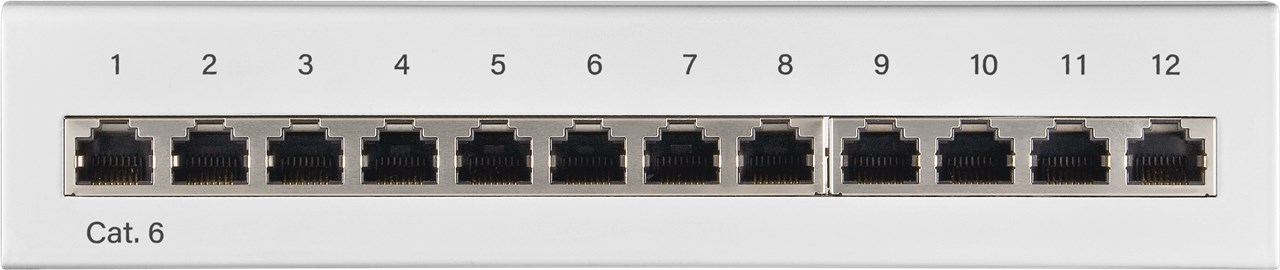

- Distribution panel with numbered ports for a clean cable management
- Terminal strips with colour coding according to TIA 568 A/B for an easy and correct connection
Connections
| Connection, type |
12 RJ45 female (8P8C) |
| Connection 2, type |
for IDC connection |
| Output, type |
RJ45 female (8P8C) |
| Connection, shielding |
yes |
Device connections
Cable
| Specification |
CAT 6 |
| Shielding class |
STP |
Signal transmission
General
| Color |
white |
| Markings |
WEEE, CE |
| Packaging type |
Brown Box with Label |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Width |
212 mm |
| Height |
44 mm |
| depth |
109 mm |
