Goobay

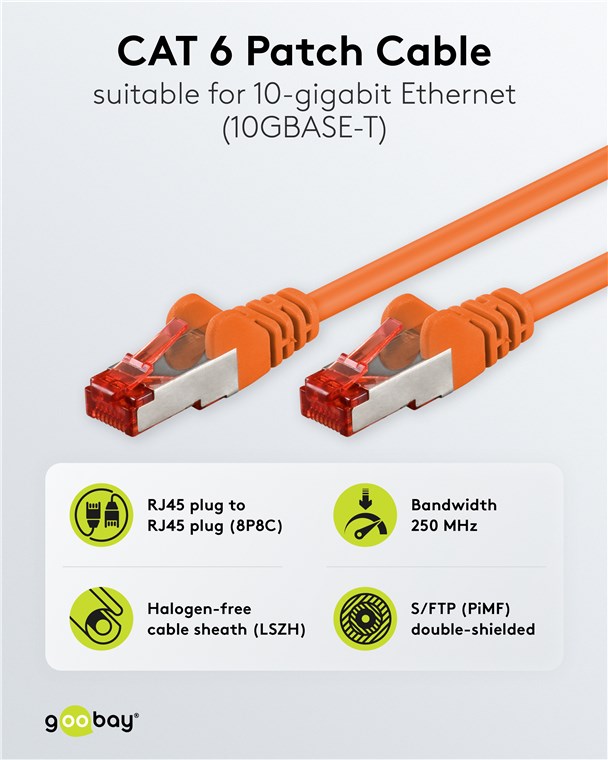

CAT 6 patch cable S/FTP (PiMF), orange
LSZH halogen-free, CU
Goobay
CAT 6 patch cable S/FTP (PiMF), orange
LSZH halogen-free, CU
Article details
suitable for Gigabit (10/100/1.000/10.000 Mbit) network*

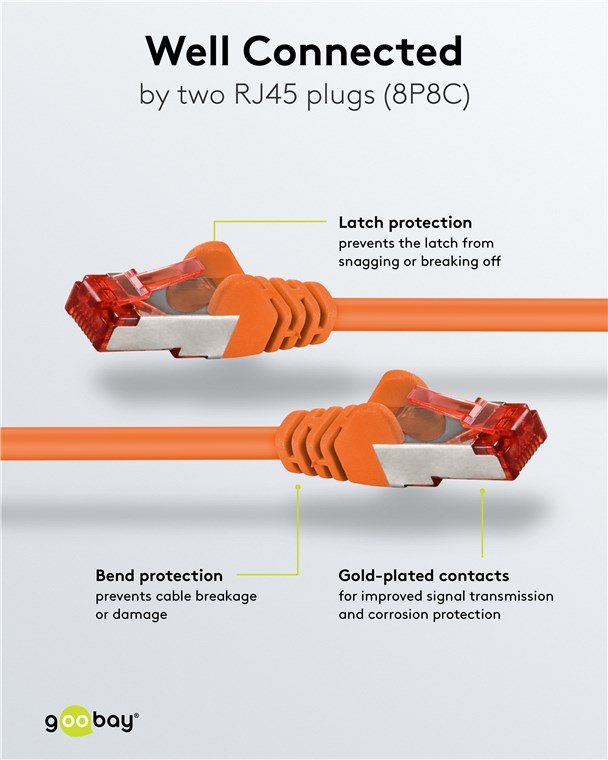

  • double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
  • CAT 6tested
  • with gold plated PINs
  • pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
  • with length indication on the slimline strain relief
  • with latch protection
  • suitable for Power over Ethernet (PoE/PoE+)

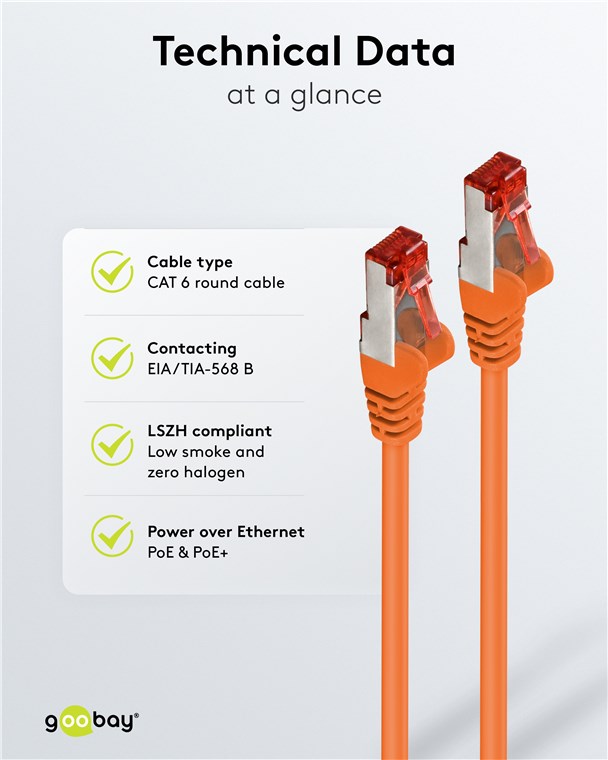

Technical specifications
Connections
Connection, shielding
yes
Contacting
EIA/TIA-568B
Connection, type
RJ45 male (8P8C)
Connection 2, type
RJ45 male (8P8C)
Latch protection
both sides
Cable
Cable length
0.15 m
Cable type
round cable
Specification
CAT 6
Cable sheath diameter (approx.)
6 mm
Material cable sheath
LSZH
Shielding class
S/FTP (PiMF)
Inner conductor material
CU (copper)
AWG
28/7 (stranded)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
Kink protection
both sides
LSZH compliant
yes
Signal transmission
max. bandwidth
250 MHz
General
Packaging type
Bulk
Consumption Unit
1 pc. in polybag
Color
orange
Markings
WEEE, CE
Operating temperature from
-20 °C
Operating temperature up to
65 °C
£5.99 RRP
Packing units:
1 / 10 / 280
Packaging type
Item: 92457
EAN: 4040849924576
