Product and packaging similar. Subject to modifications and errors.

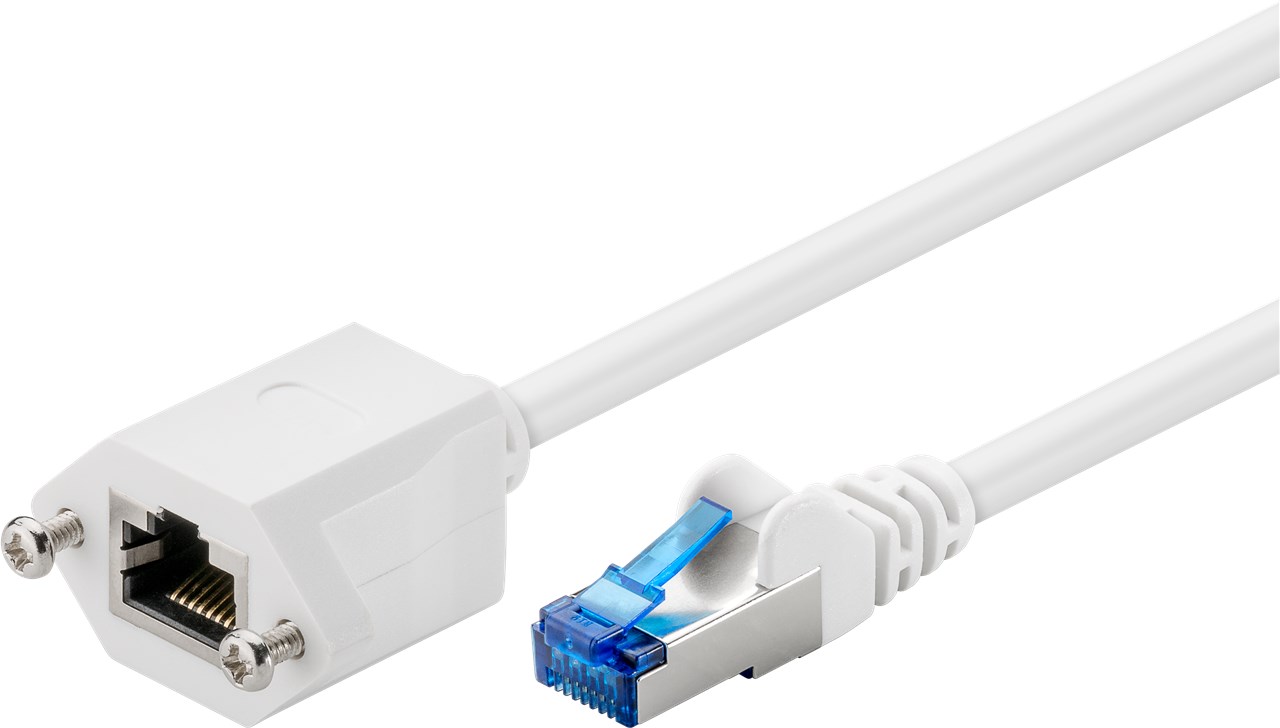

CAT 6A Extension Cable, S/FTP (PiMF), white
copper conductor (CU), halogen-free cable sheath (LSZH), with mounting flange
- Double-shielded LAN cable extension with RJ45 plugs for connecting network components
- Mounting flange with 25 mm hole spacing for fastening e.g. to a slot bracket, cable duct or enclosure with corresponding cut-out
- High-quality copper conductor (CU) and gold-plated contact surfaces for an excellent, high-performance network connection
- S/FTP overall shielding: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shielding for the cable sheath
- Bend protection and a sturdy jacket effectively protect the extension cable from breakage
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection
- Network connector: pair sequence according to EIA/TIA 568B, pinout: 1:1, suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
Connections
| Connection, type |
RJ45 male (8P8C) |
| Contacting |
EIA/TIA-568 B |
| Latch protection |
unilaterally |
| Connection 2, type |
RJ45 female (8P8C) |
| Connection, contact material |
gold-plated 3µm |
| Connection, shielding |
yes |
| Kink protection |
both sides |
Cable
| Material cable sheath |
LSZH |
| Specification |
CAT 6A |
| Shielding class |
S/FTP (PiMF) |
| Cable length |
0.5 m |
| Cable type |
round cable |
| Inner conductor material |
CU (copper) |
| Number of shieldings |
2 x |
| Type 1, shielding |
foil (alu) PiMF |
| Type 2, shielding |
braid (alu) overall shield |
| AWG |
27/7 (stranded) |
Signal transmission
General
| Outer sheath material |
LSZH |
| Color |
white |
| Markings |
WEEE, CE |
| Special feature |
Length indication on connector |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
75 °C |
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
