Product and packaging similar. Subject to modifications and errors.

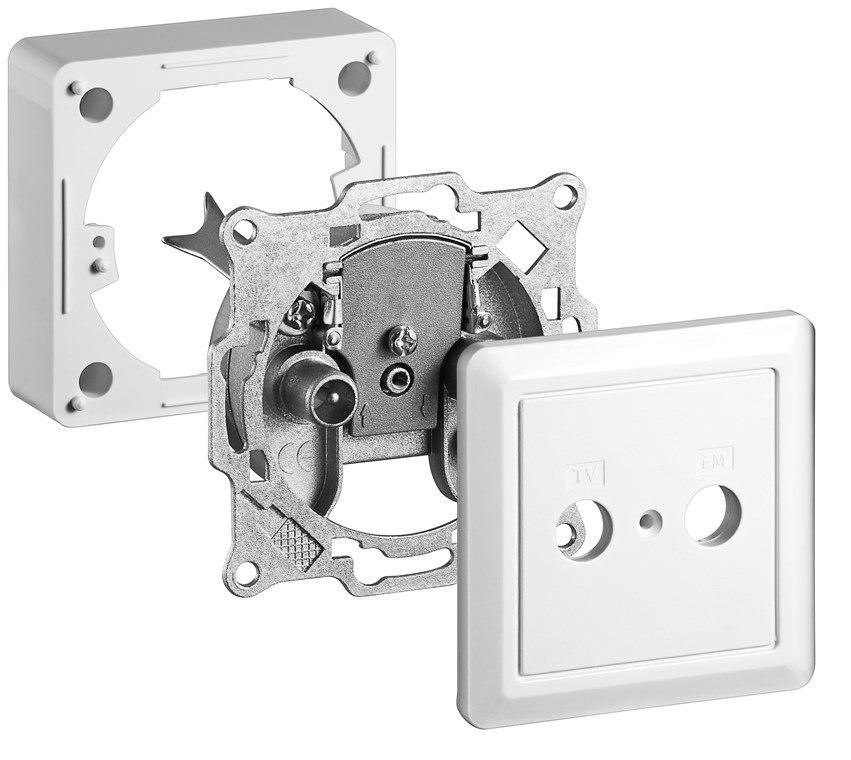

Complete Set: 2-hole Antenna Stub/End Socket
incl. cover and frame, 1 dB connection attenuation
- Antenna socket for DVB-C systems, broadcasting, SAT, cable TV and DVB-T
- Aerial wall socket is suitable for special channels and return channels.
- Coax wall socket for connecting a multiswitch or LNB, suitable for surface and flush mounting.
- 0,5 MHz-1000 MHz (TV)
- 0.5 MHz - 139 MHz (radio)
- Characteristic impedance: 75 ohm
- Without DC passage
Technical specifications
Signal transmission
| Connection loss radio connection | 8 dB |
| Connection damping TV connection | 4 dB |
| Frequency range radio connection | 87.5–139 MHz |
| Frequency range TV connection Forward path | 5–1,000 MHz |
General
| Markings | CE |
| Packaging type | Bulk |
Dimensions / Weight
| Consumption Unit | 1 pc. in cardboard box |
£9.99 RRP
Packing units:
1 / 50 / 100
