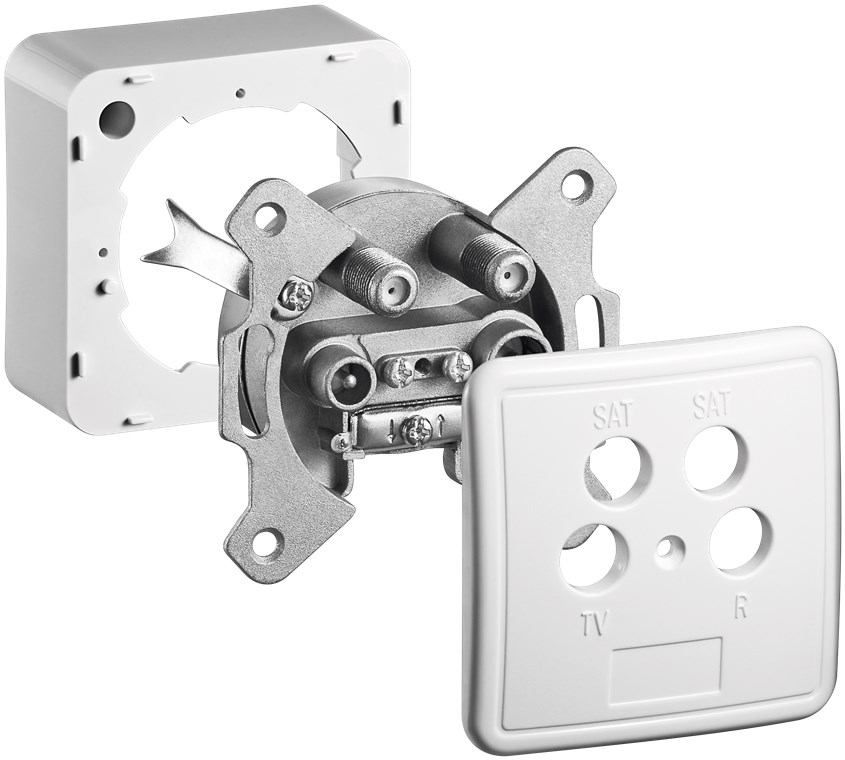

Complete Set: Antenna Stub/End Socket
incl. cover and frame, with direct voltage (DC) feed-through
- Antenna socket for DVB-C systems, broadcasting, SAT, cable TV and DVB-T
- Aerial wall socket is suitable for special channels and return channels.
- Coax wall socket for connecting a multiswitch or LNB, suitable for surface and flush mounting

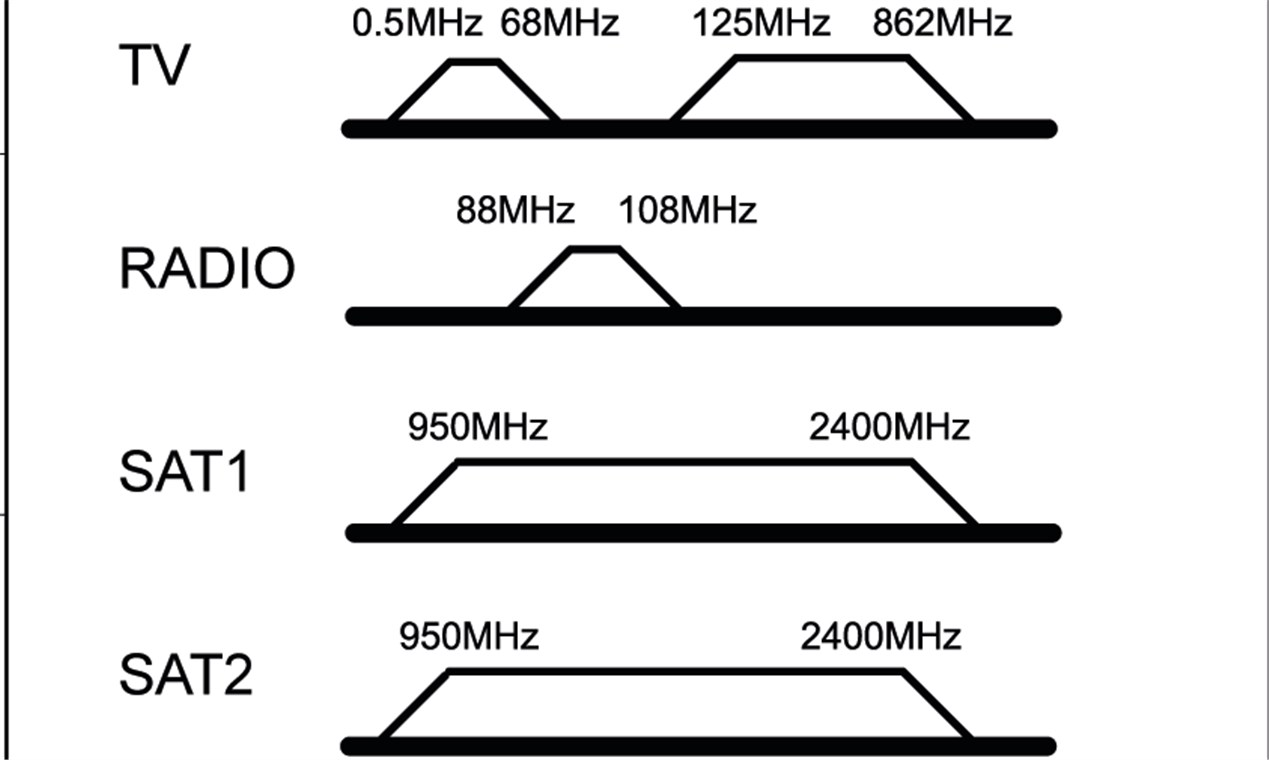

- 950 MHz - 2400 MHz (SAT)
- 5 MHz - 65 MHz/125 MHz - 862 MHz (TV)
- 88 MHz - 120 MHz (radio)
- Characteristic impedance: 75 ohm
Technical specifications
Signal transmission
| Connection loss radio connection | 3 dB |
| Connection damping SAT connection | 3 dB |
| Connection damping TV connection | 3 dB |
| Frequency range radio connection | 88–108 MHz |
| Frequency range SAT connection | 950–2,400 MHz |
| Frequency range TV connection Forward path | 125–862 MHz |
| Frequency range TV connector rear channel up | 5–65 MHz |
General
| Markings | CE |
| Packaging type | Bulk |
Dimensions / Weight
| Consumption Unit | 1 pc. in cardboard box |
Downloads
Product data sheet pdf
£11.99 RRP
Packing units:
1 / 48 / 96
