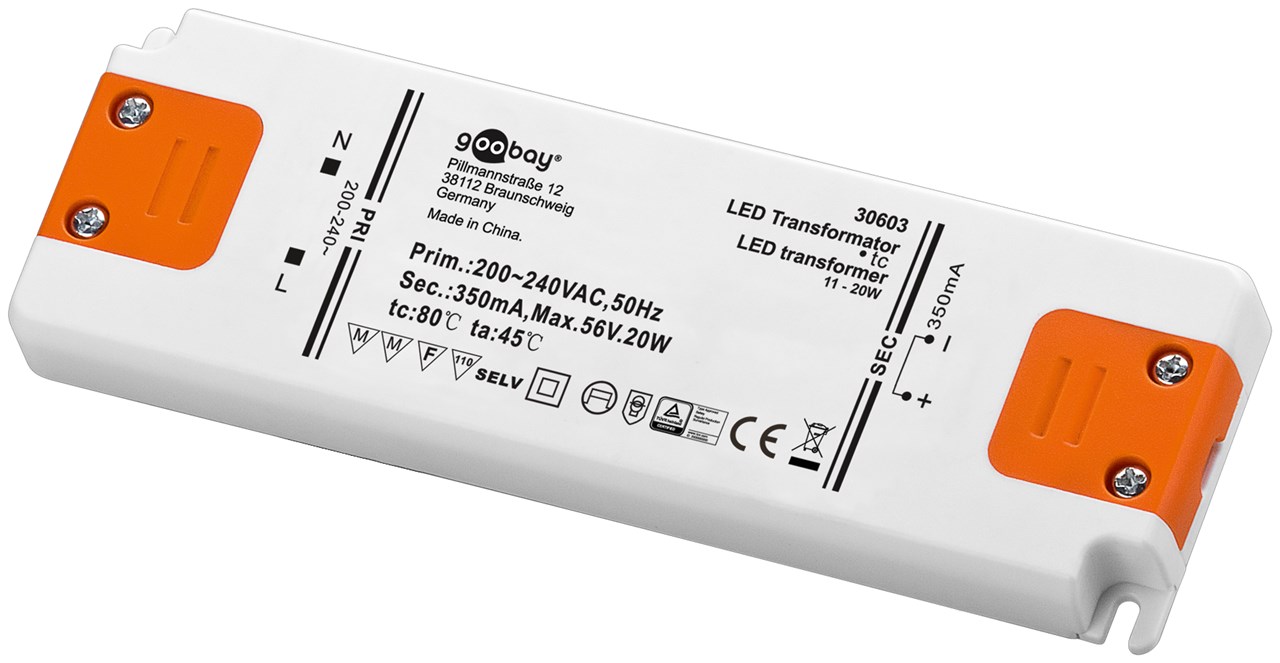

Constant Current LED Transformer 350 mA, 20 W
350 mA constant current (CC) for LEDs up to 20 W total load
With our LED transformers, you can effortlessly supply all your LED lamps with sufficient current. Connection is easy thanks to the integrated luster terminals. Goobay lights up your world. Simply. All. You need!
- Compact CC transformer with 11 W minimum load for connecting LED lamps
- Direct current source for LEDs with ballast electronics
- Flat design and low heat generation for space-saving installation, even in confined spaces
- LED driver is approved for installation in furniture and can be mounted inconspicuously e.g. behind cabinets
- CC transformer with constant output current for series circuits. Safe electronic separation according to protection class II
- Note: LED light transformer is not dimmable
Connections
| Input, type |
Screw clamp |
| Output, type |
Screw clamp |
Performance
| max. performance |
20 W |
| minimum load |
11 |
| No-load power consumption |
0.5 W |
| Dimmability |
not dimmable |
Device connections
| Input, Voltage Range |
200 - 240 (AC) V |
| number of inputs |
2 |
| Input Cross Section |
0.75 mm² |
| Output, max. amperage |
0.35 A |
| Output Cross Section |
0.75 mm² |
| Number of outputs |
2 |
General
| protection class |
IP20 |
| Appliance Class |
II |
| Markings |
WEEE, CE, bauartgeprüft: TÜV Rheinland |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
45 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
154 mm |
| Width |
50 mm |
| Height |
15 mm |
| Weight |
94 g |
