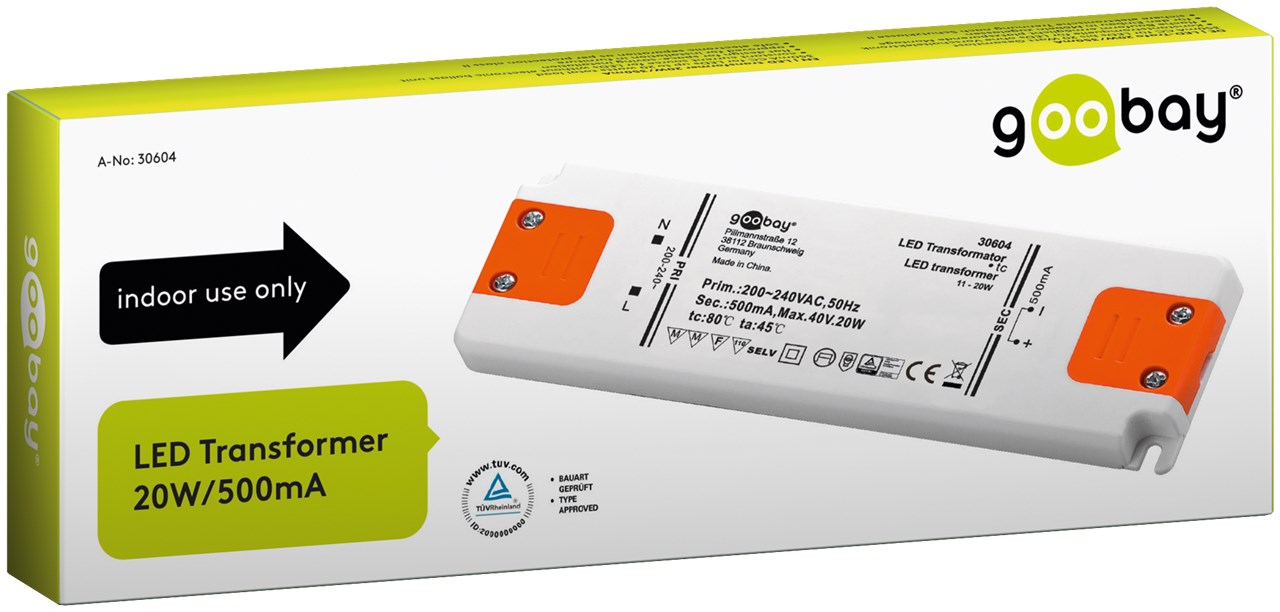

Product and packaging similar. Subject to modifications and errors.

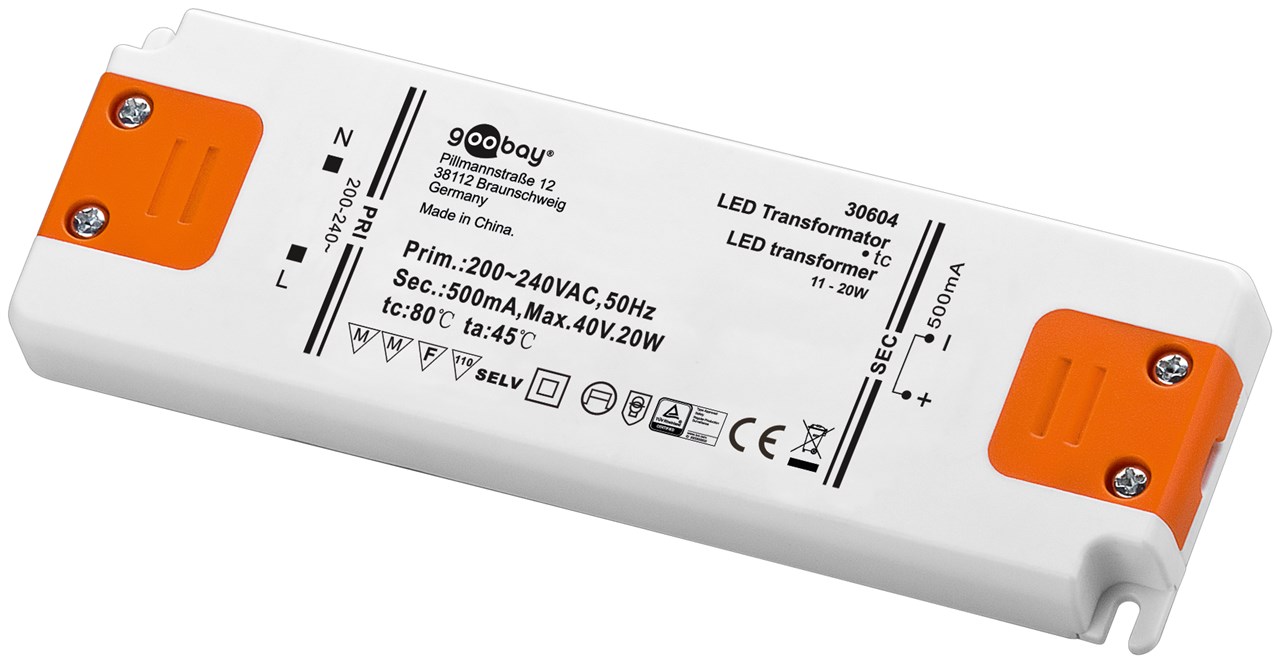

Constant Current LED Transformer 500 mA, 20 W
for LEDs with 500 mA constant current up to 20 W total load in the 22-40 V (DC) voltage range
Our transformers supply LEDs with constant current (CC), effectively preventing flickering and heat wear of the connected LEDs. In contrast to transformers with a constant voltage (CV), drivers with a constant current provide a constant light quality and brightness and ensure a uniform current in all LEDs, even in series connections.
- Compact DC transformer with 11 W minimum load and ballast electronics for connecting most common LED lamps such as spotlights, ceiling lights or recessed lighting
- The constant output current of 500 mA with a variable voltage range of 22-40 V (DC) protects connected LEDs from overcurrent and maximises the service life of the light source
- Thanks to the integrated screw terminals, the DC power source is quick and easy to install
- The flat design and low heat generation are perfect for a space-saving installation, even in confined spaces
- The LED driver is approved for installation in furniture and can be mounted discreetly, e.g. behind cabinets
- Suitable for series connection and indoor use (IP20), with safe electronic isolation in accordance with appliance class II
- Note: The LED light transformer is not dimmable
Connections
| Input, type |
Screw clamp |
| Output, type |
Screw clamp |
Performance
| Dimmability |
not dimmable |
| max. performance |
20 W |
| minimum load |
11 |
| No-load power consumption |
0.5 W |
Device connections
| Input, Voltage Range |
200 - 240 (AC) V |
| Output, Voltage Range |
20 - 40 (DC) V |
| number of inputs |
2 |
| Output, voltage (DC) |
40 V (DC) |
| Number of outputs |
2 |
| Input Cross Section |
0.75 mm² |
| Output Cross Section |
0.75 mm² |
General
| protection class |
IP20 |
| Appliance Class |
II |
| Markings |
WEEE, CE, bauartgeprüft: TÜV Rheinland |
| Applications |
Furniture installation |
| Special feature |
Constant current (for series connection) |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
45 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
154 mm |
| Width |
50 mm |
| Height |
15 mm |
| Weight |
94 g |
