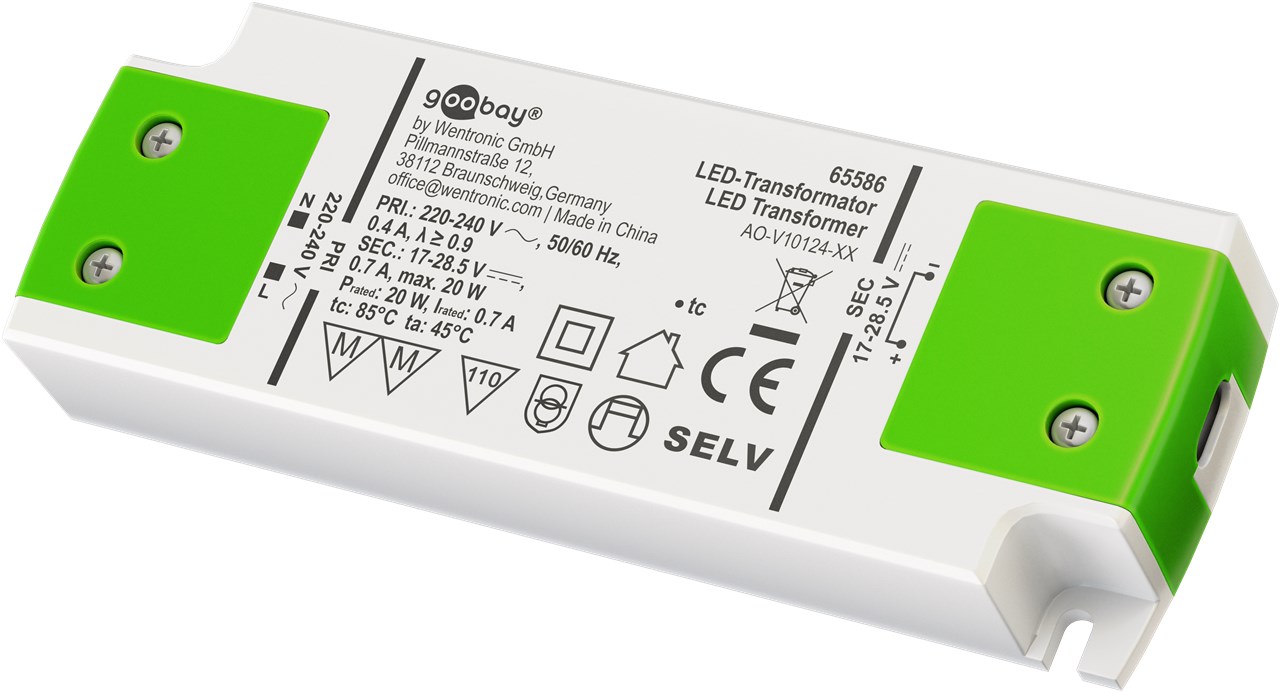

Constant Current LED Transformer 700 mA, 20 W
for LEDs with 700 mA constant current up to 20 W total load in the 17-28,5 V (DC) voltage range
Constant Current LED Transformer 700 mA, 20 W
for LEDs with 700 mA constant current up to 20 W total load in the 17-28,5 V (DC) voltage range
Article details
The transformer supplies LEDs with constant current (CC), effectively preventing flickering and heat wear of the connected LEDs. In contrast to transformers with a constant voltage (CV), drivers with a constant current provide a constant light quality and brightness and ensure a uniform current in all LEDs, even in series connections.

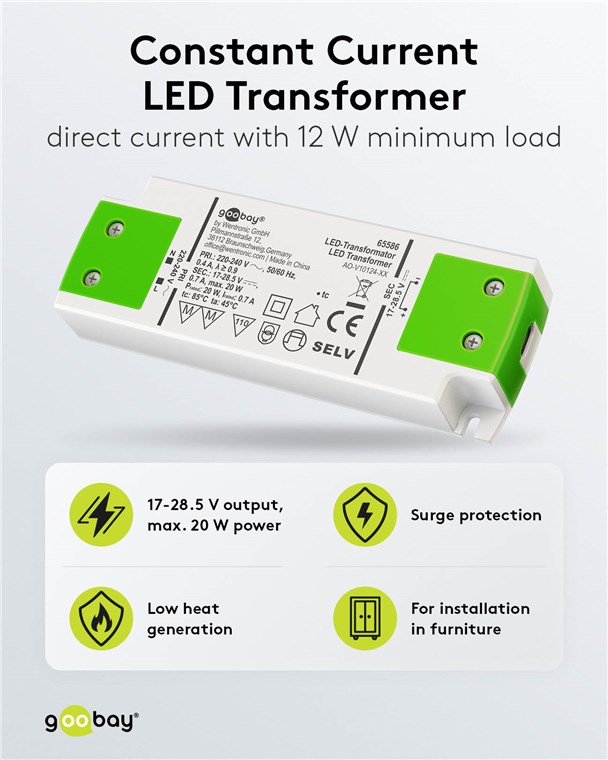

- Compact DC transformer with 12 W minimum load and ballast electronics for connecting most common LED lamps such as spotlights, ceiling lights or recessed lighting
- The constant output current of 700 mA with a variable voltage range of 17-28,5 V (DC) protects connected LEDs from overcurrent and maximises the service life of the light source

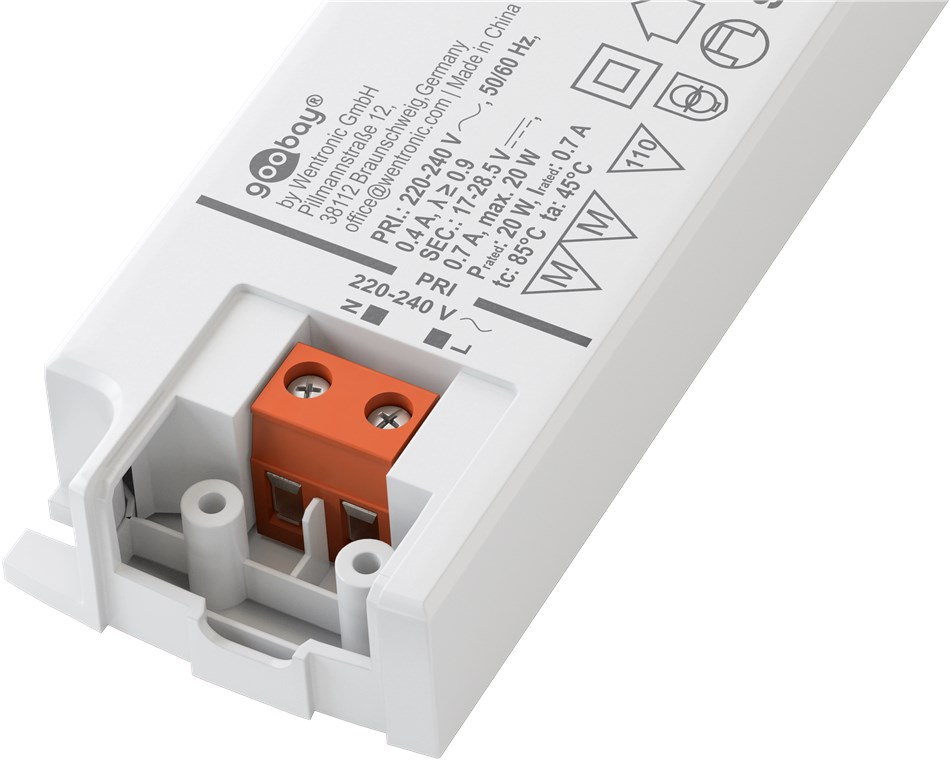

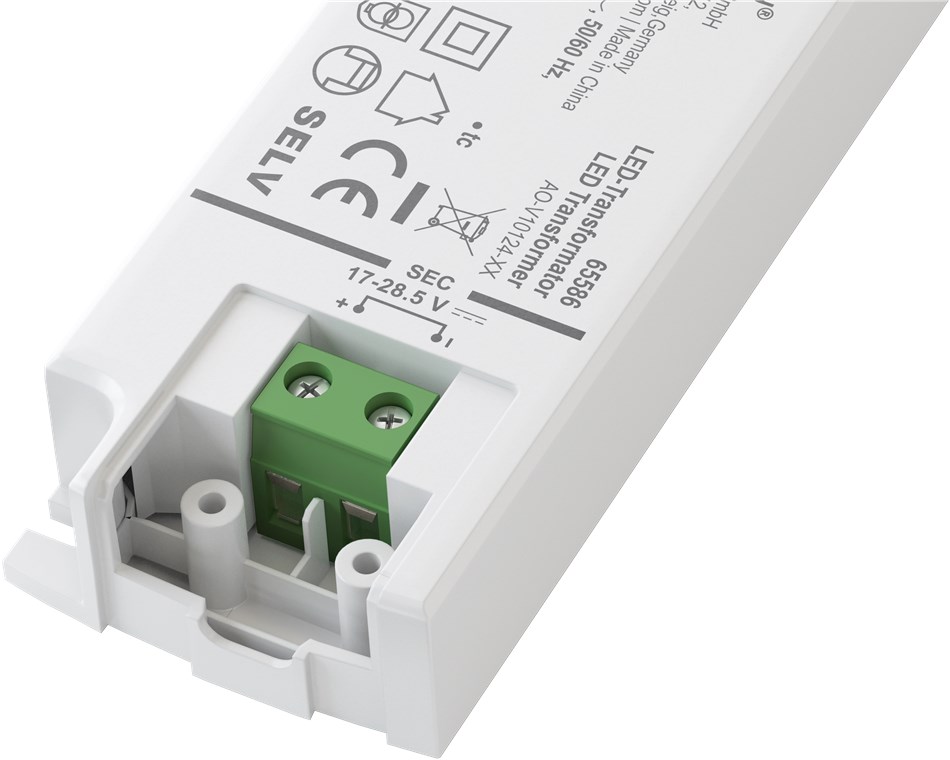

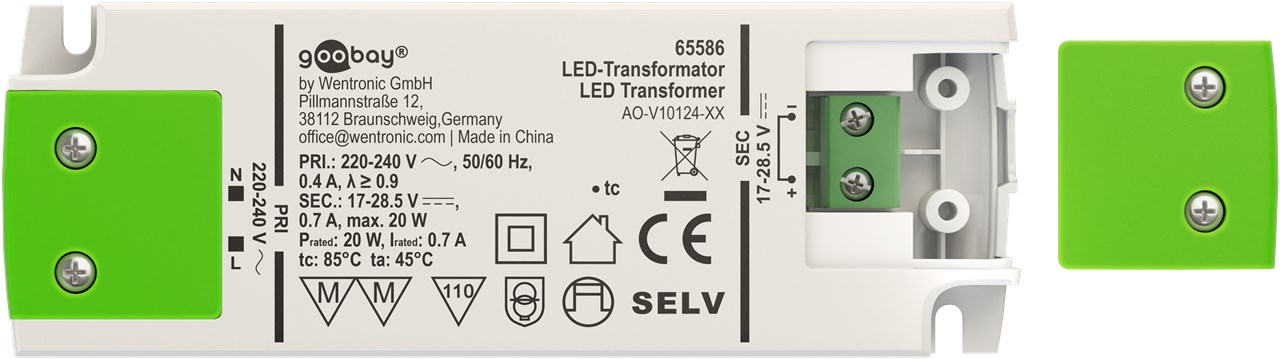

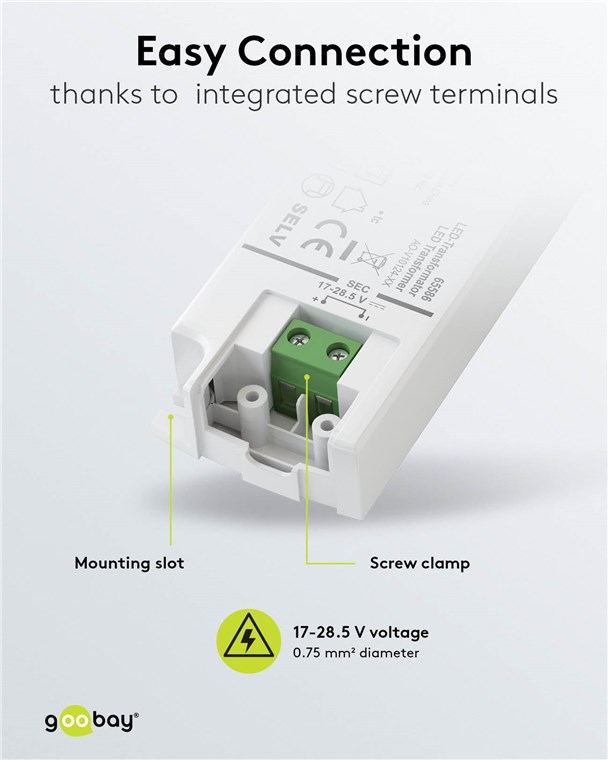

- Thanks to the integrated screw terminals, the DC power source is quick and easy to install

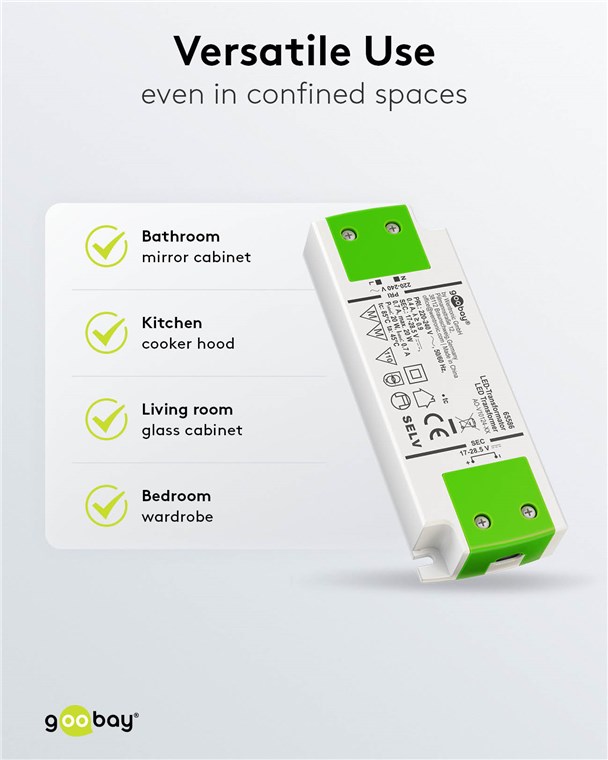

- The flat design and low heat generation are perfect for a space-saving installation, even in confined spaces
- The LED driver is approved for installation in furniture and can be mounted discreetly, e.g. behind cabinets
- Suitable for series connection and indoor use (IP20), with safe electronic isolation in accordance with appliance class II
- Note: The LED light transformer is not dimmable
Technical specifications
ErP
Average active efficiency
89 %
Performance
max. performance
20 W
minimum load
12
No-load power consumption
0.062 W
Dimmability
not dimmable
max. performance
20.0 W
Device connections
Input, type
Screw clamp
Input, Voltage Range
220 - 240 (AC) V
number of inputs
2
Input Cross Section
0.75 mm²
Output, type
Screw clamp
Output, max. amperage
0.7 A
Output Cross Section
0.75 mm²
Number of outputs
2
Output, Voltage Range
17 - 28,5 (DC) V
Output, max. amperage
700.0 mA
General
protection class
IP20
Appliance Class
II
Manufacturer designation
Goobay
Color
white, Green
Markings
WEEE, CE, Haus
Applications
Furniture installation
Special feature
Constant current (for series connection)
Operating temperature from
-20 °C
Operating temperature up to
45 °C

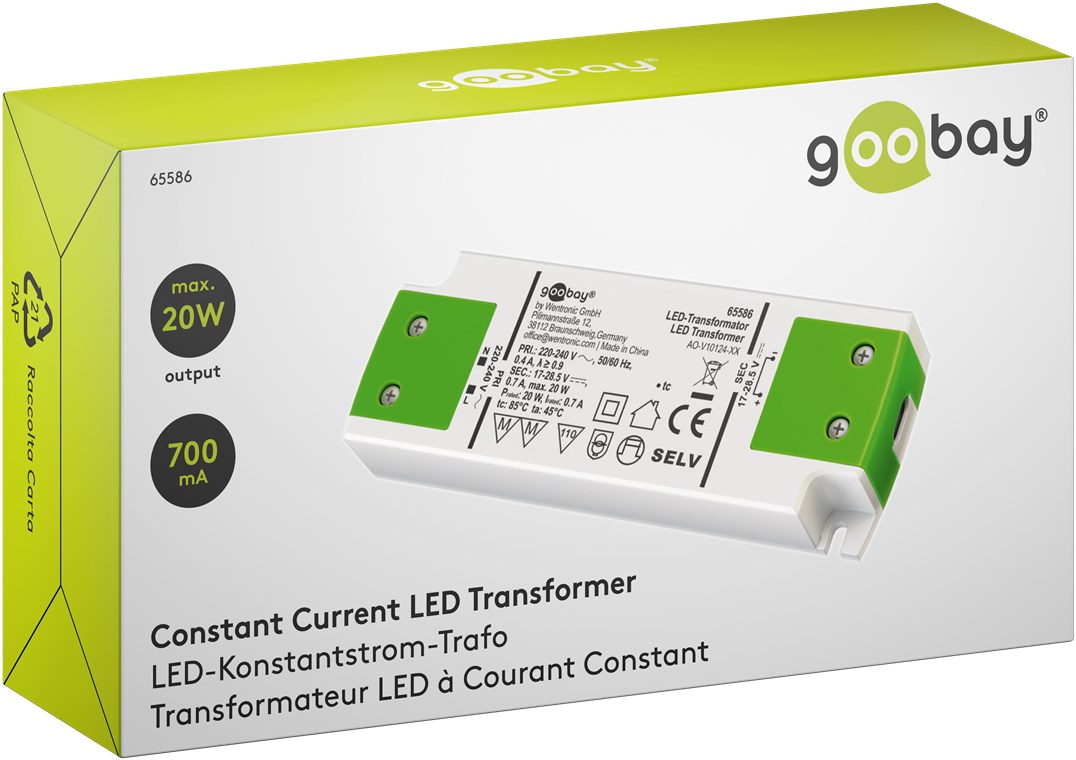

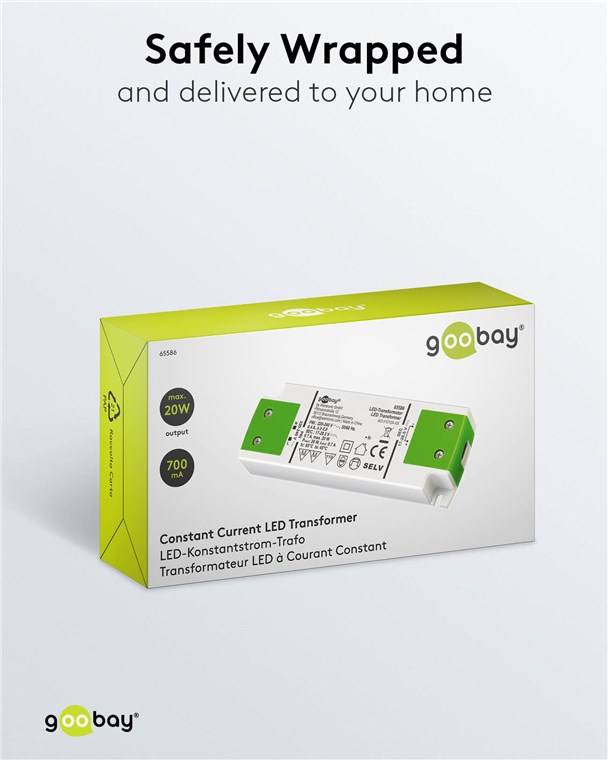

Packaging type
Retail Box

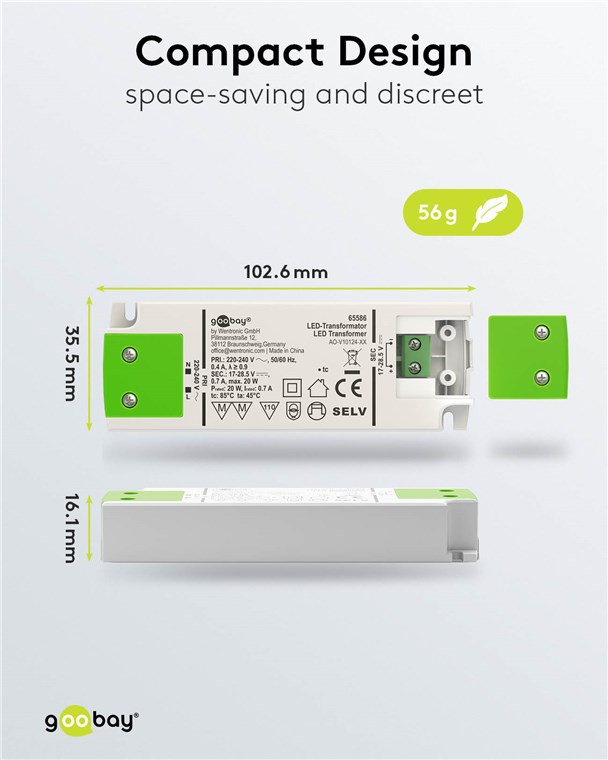

Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Length
102.7 mm
Width
35.5 mm
Height
16.1 mm
Weight
56 g
Language Scope
packaging
cs, da, de, en, es, fr, it, nl, pl, sv
Downloads
Packing units:
1 / 50 / 100
Item: 65586
EAN: 4040849655869
