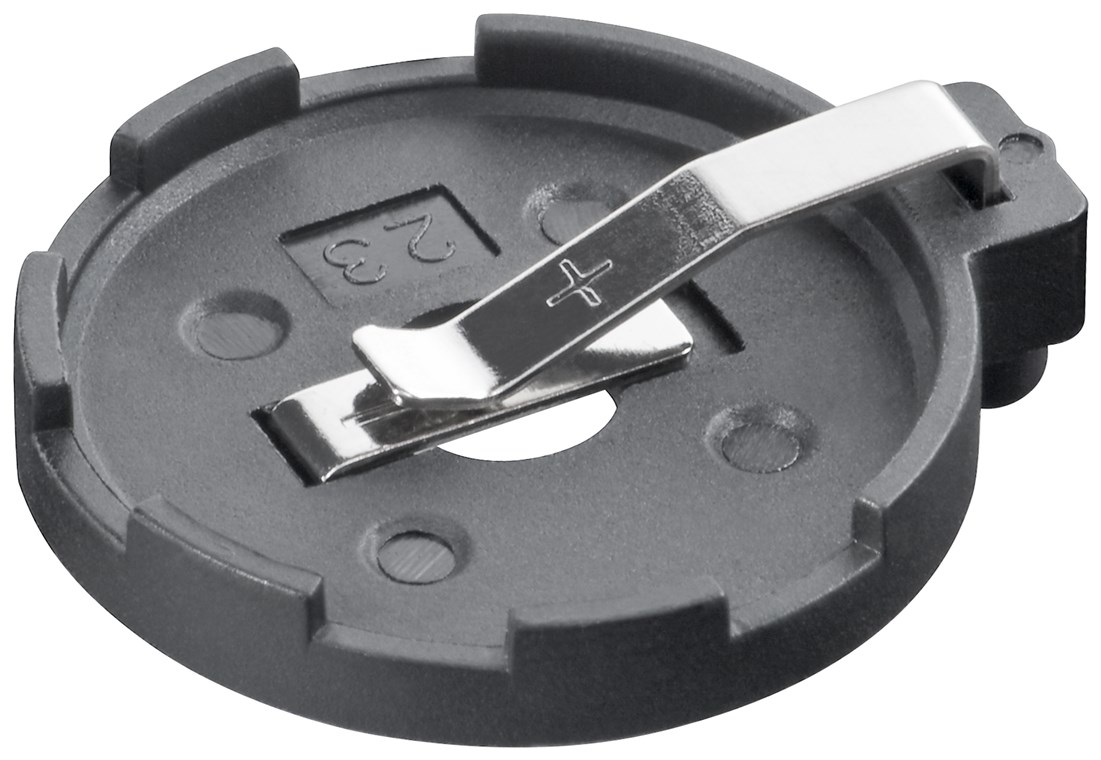

CR2320-2354 button cell holder

max. 23 mm, black, Print assembly, horizontal (2-pin)

• The 2-pin button battery holder works for the following button cells: CR2320, CR2325, CR2330 and CR2354.
• The battery holder can be used for horizontal print mounting.
• The unit is ideal for connecting electronic components to button cells with a maximum diameter of 23 mm.
• The cell battery holder allows for easy battery-changing.
• Space-saving holding option for button cells even in small spaces.

Technical specifications

Battery

suitable IEC battery types

CR2320, CR2325, CR2330, CR2354

Connections

Connection, type

Print assembly, horizontal (2-pin)

General

Color	black
Operating temperature from	-20 °C
Operating temperature up to	50 °C
Packaging type	Bulk

Dimensions / Weight

Consumption Unit

1 pc. in polybag
