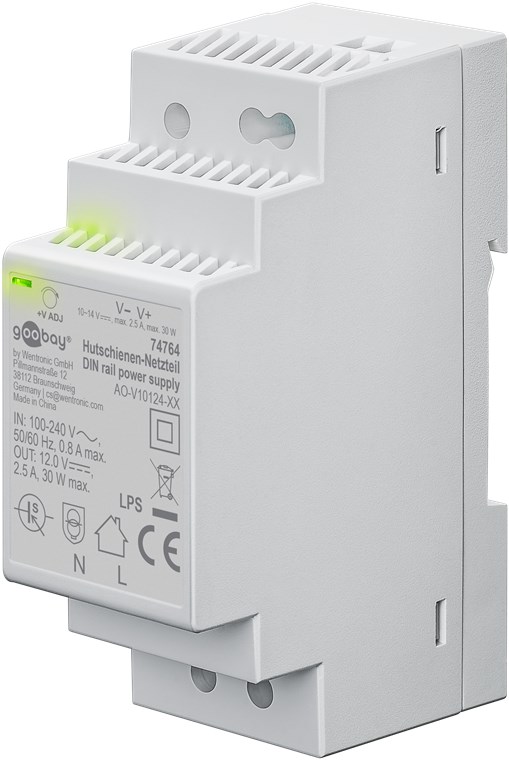

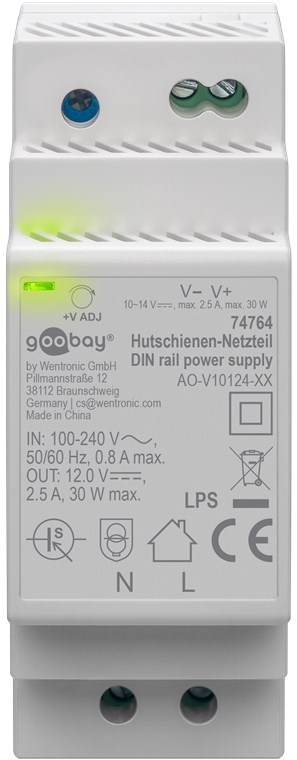

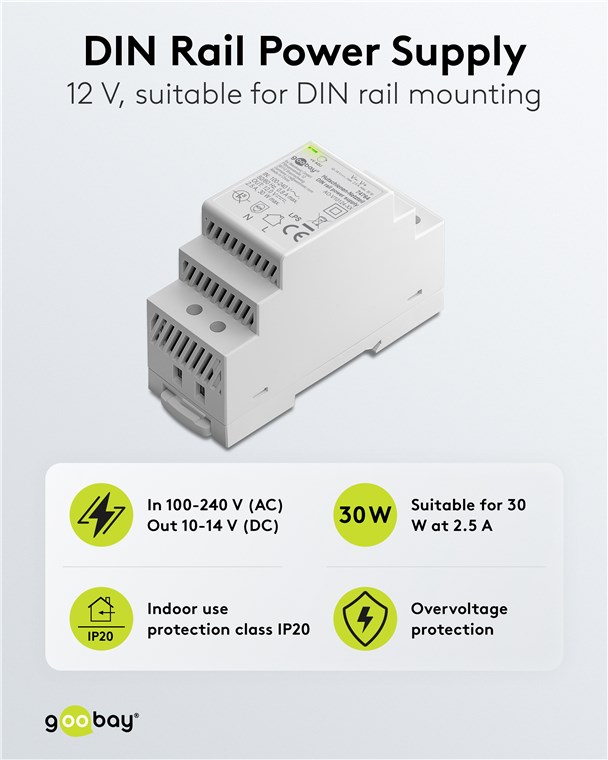

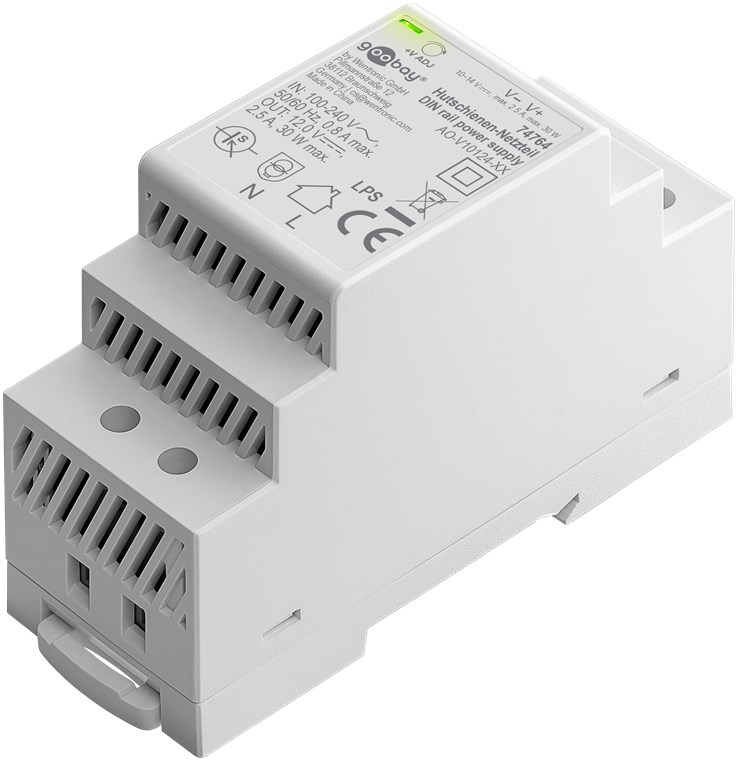

DIN Rail Power Supply 12 V (DC), 2.5 A, 30 W
suitable for DIN mounting, TH 35/7.5 or TH 35/15 (formerly TS 35/7.5, TS 35/15)
The DIN rail power supply is the ideal solution for devices that must be permanently ready for use and rely on a stable supply of constant DC voltage (CV), e.g. doorbells, access systems or sensors. The compact, staircase-shaped design makes the power supply perfect for confined spaces with demanding heat requirements, e.g. in control cabinets or junction boxes.

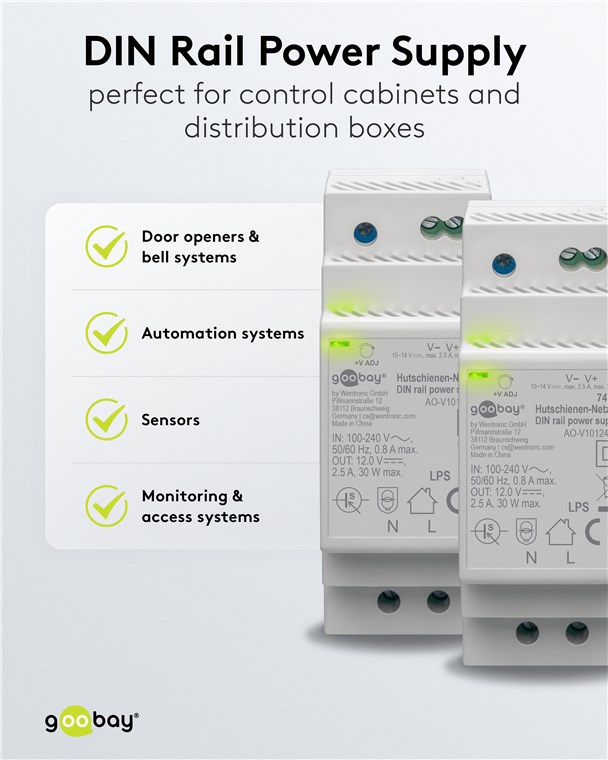

- The 12 V power supply is suitable for use as a doorbell transformer, for operating surveillance and access systems, door openers, door intercoms, doorbell systems, etc.

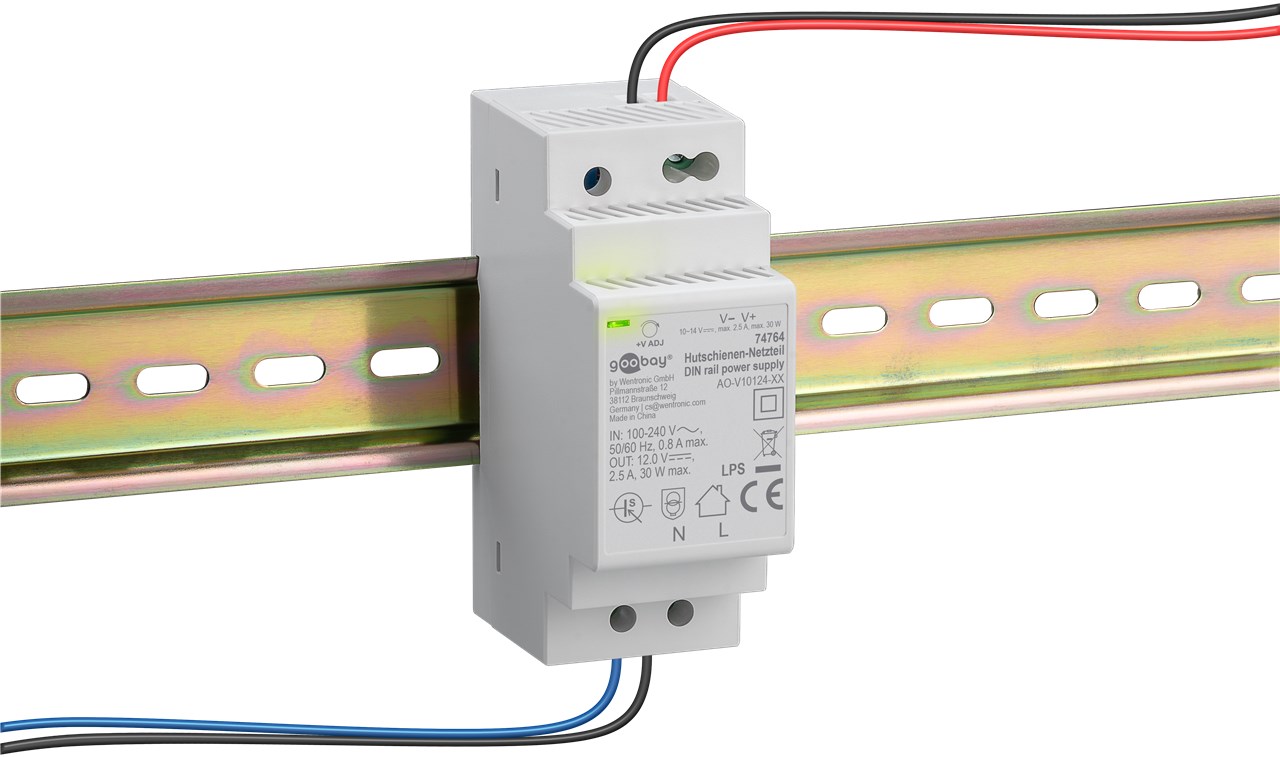

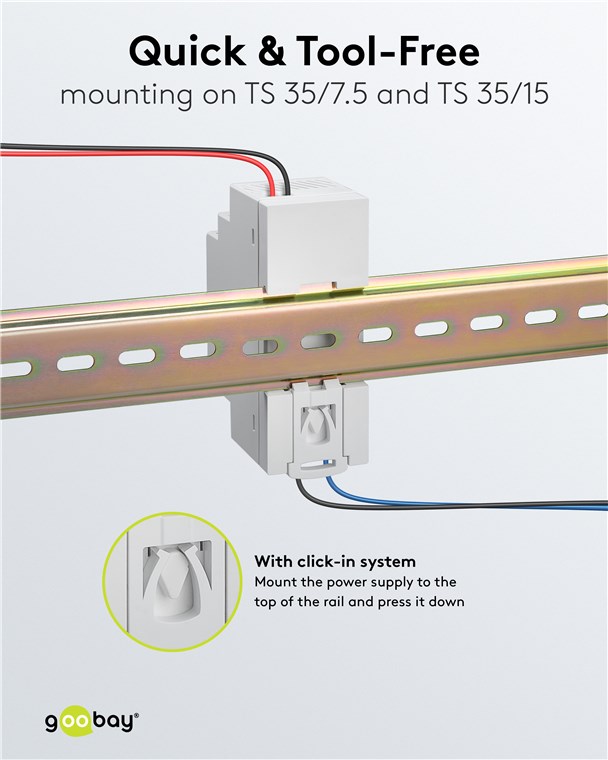

- 35.2 mm wide, it is particularly compact and can be quickly and easily mounted on a DIN rail with a top-hat profile, e.g. in a control cabinet, using a click system
- The DIN rail transformer converts the input voltage in the range of 100-240 V (AC) at 50/60 Hz to 12 V constant DC voltage
- Features a variable DC output voltage of 10-14 V and high efficiency

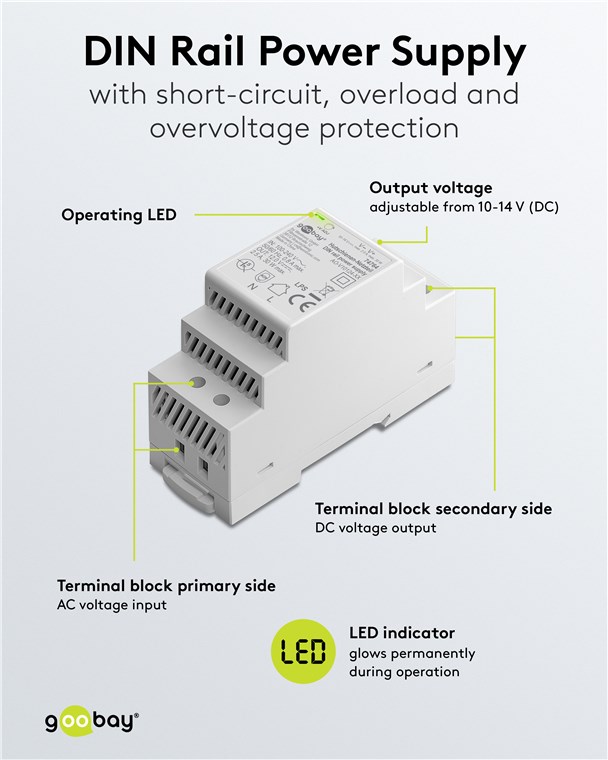

- The switch-mode power supply is particularly safe thanks to overvoltage, overload and short-circuit protection, IP20 protection and safe electronic separation according to protection class II

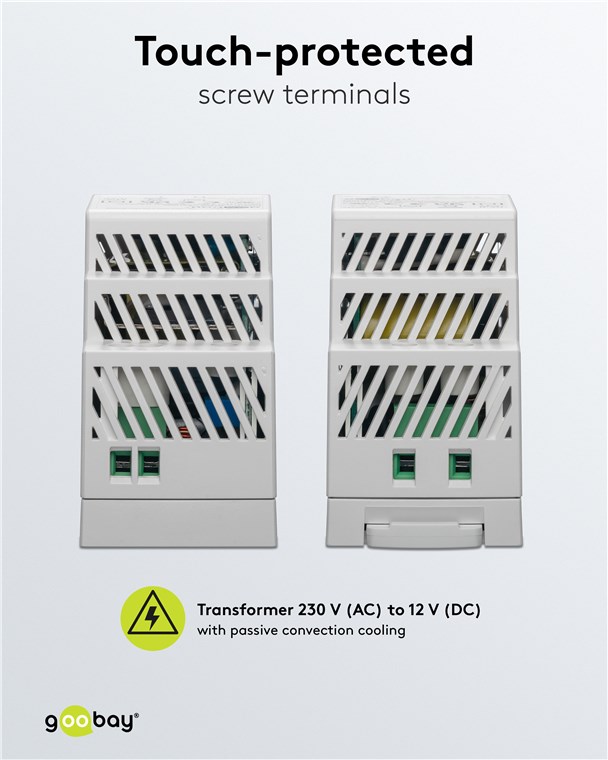

- The 230 V to 12 V transformer is passively cooled by convection and connected via touch-protected screw terminals
- With integrated LED display that glows permanently when the power supply is in operation and working properly
Connections
ErP
| Average active efficiency |
84 % |
Performance
| Power consumption |
30 W |
| Dimmability |
non-dimmable |
| max. performance |
30 W |
Device connections
| number of inputs |
2 |
| Input, type |
Screw clamp |
| Input, Voltage Range |
100 - 240 (AC) V |
| Number of outputs |
2 |
| Output, voltage (DC) |
12 V (DC) |
| Input Cross Section |
0.75 mm² |
| Output, max. amperage |
2.5 A |
| Output Cross Section |
0.75 mm² |
| Output, Voltage Range |
10 - 14 V ADJ V |
General
| Appliance Class |
II |
| protection class |
IP20 |
| Color |
white |
| Markings |
WEEE, CE, UL |
| Applications |
control cabinets, House distribution |
| Special feature |
Constant voltage (for parallel connection) |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
50 °C |
| Packaging type |
Retail Box |

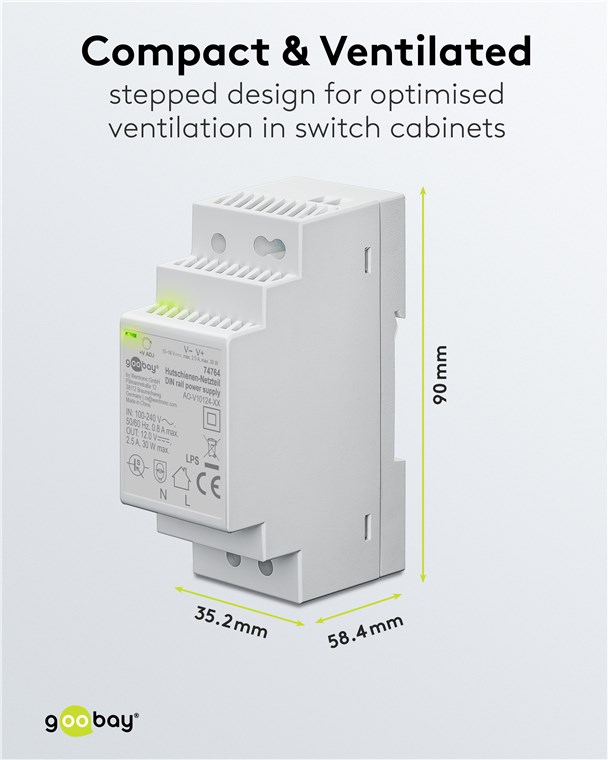

Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Width |
35.2 mm |
| Height |
90 mm |
| depth |
58.4 mm |
| Weight |
120 g |
accessory - Power supply
Language Scope
| packaging |
de, en, fr, it, es, nl, da, sv, cs, pl |
SCIP
| SCIP no. |
a3a291af-3e14-4348-b4ce-ffad4e5be535 |
| chemical substance |
Pb |
| CAS no. |
7439-92-1 |
£17.99 RRP
Packing units:
1 / 25 / 50
