Product and packaging similar. Subject to modifications and errors.
Standard

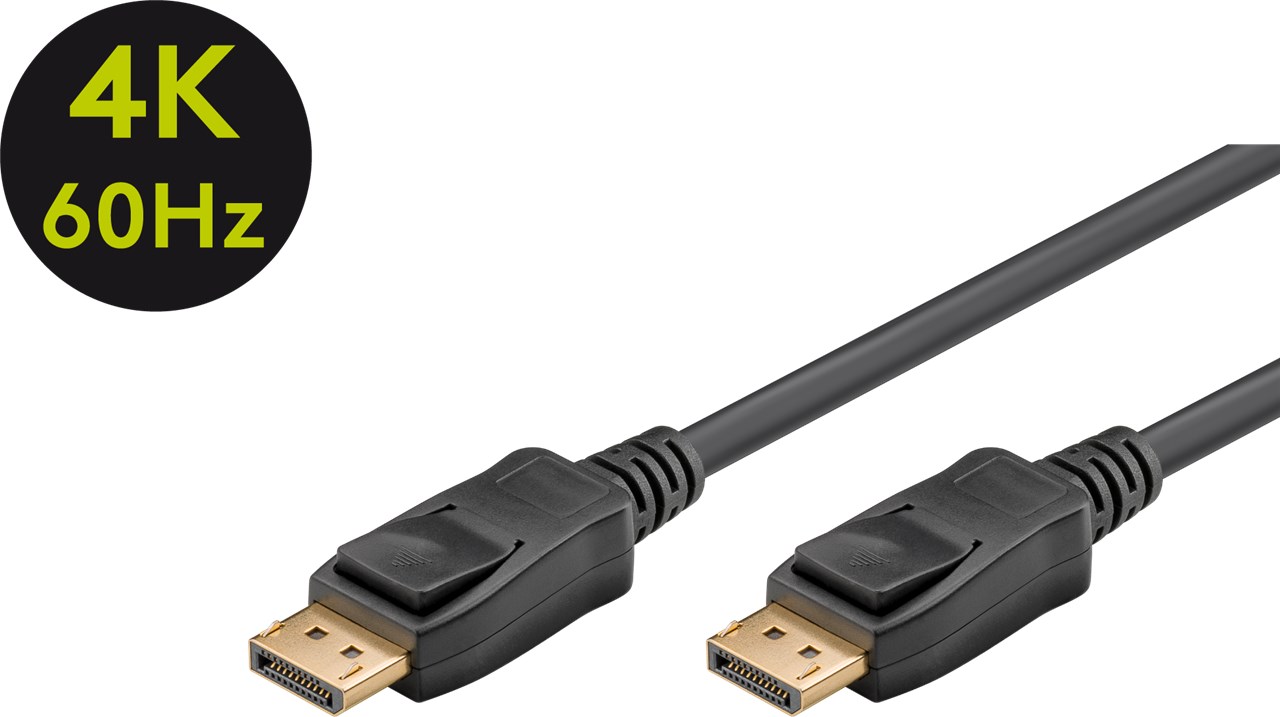

DisplayPort™ Cable 1.2
21Gbit/s (4K/60Hz)
With razor-sharp 4K image resolution and compatibile with surround sound formats such as Dolby TrueHD or DTS-HD, the DisplayPort™ cable is the perfect choice for immersive gaming and captivating home entertainment experiences.
- The monitor cable for high-resolution UHD signal transmission with up to 4K @ 60 Hz (2160p) and 3D support up to 2560 x 1600 @ 120 Hz (WQXGA)
- 4K cable with a max. transmission rate of up to 21.6 Gbit/s
- For perfect, lag-free gaming and high-definition streaming for an entertainment experience without compromise
- Robust DisplayPort™ cable for transmitting high-resolution audio and video signals, e.g. from a computer or laptop to a monitor or projector
- DisplayPort™ 1.2 supports multi-stream transport (MST) for the transmission of separate video signals to up to three monitors via a single DisplayPort™ cable (daisy-chaining)
- The DisplayPort™ cable supports 8 audio channels for high-definition audio transmissions, e.g. DTS-HD, Dolby TrueHD and 7.1 surround sound
- With HDCP 1.3 for the smooth transmission of encrypted content, e.g. from Blu-ray discs, streaming platforms or games consoles
Labelling
| Disclaimer |
all brand names are registered trademarks of their owners. |
Connections
| Connection, contact material |
gold-plated |
| Connection 2, type |
DisplayPort™ male |
| Connection, type |
DisplayPort™ male |
Performance
Cable
| Cable length |
5 m |
| Cable type |
round cable |
| Inner conductor material |
CU (copper) |
| AWG |
30 |
| Cable sheath diameter (approx.) |
6 mm |
Signal transmission
| Supported video standards |
8K/60Hz (7680x4320) DSC, 4K/240Hz (3840x2160) DSC (4:2:2), 4K/144Hz (3840x2160) DSC, 4K/60Hz (3840x2160) UHD, 1440p/144Hz, 1080p (240Hz) Full HD |
| Transmission modes |
HBR2 |
| supported audio standards |
3D, HDCP 2.2 |
| max. transmission rate |
21.6 Gbit/s |
| Max. resolution |
Full HD / 1080p |
| supported colorspaces |
YCbCr 4:4:4 |
General
| Packaging type |
Cable Tag |
| Goobay Version |
DP 1.2 |
| Color |
black |
Dimensions / Weight
| Consumption Unit |
1 pc. bulk |
