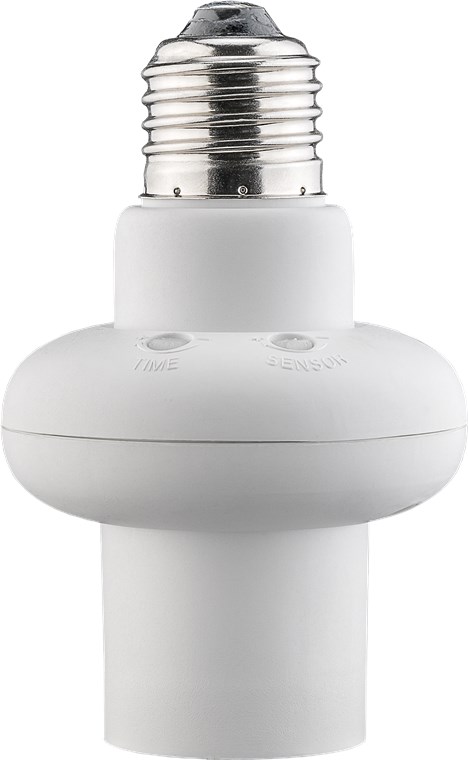

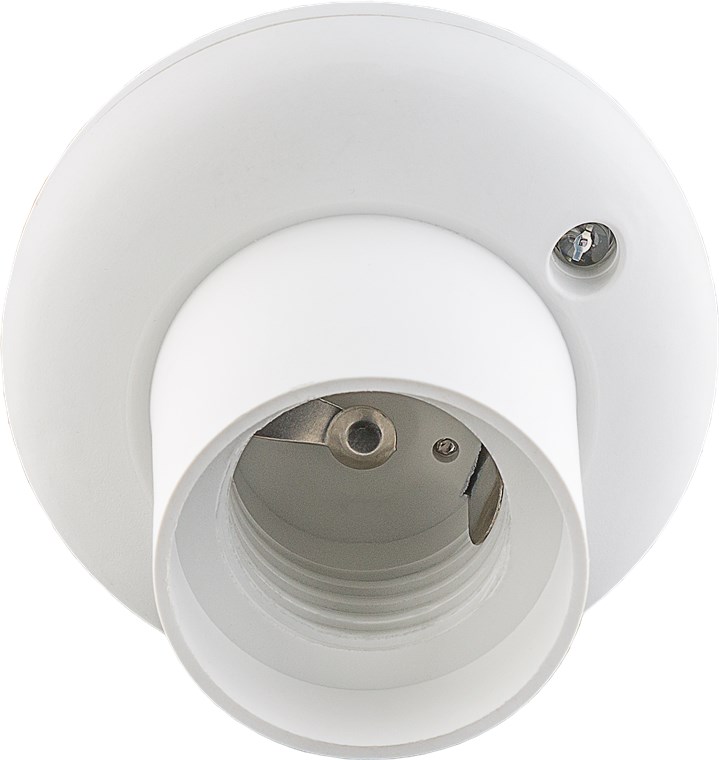

E27 lamp socket with microwave & light sensor
ideal for storerooms, attics, cellars, garages, hallways and stairwells
- works through doors, glass panes and thin walls
- automatic function activation at dusk (≤ 3 lux)

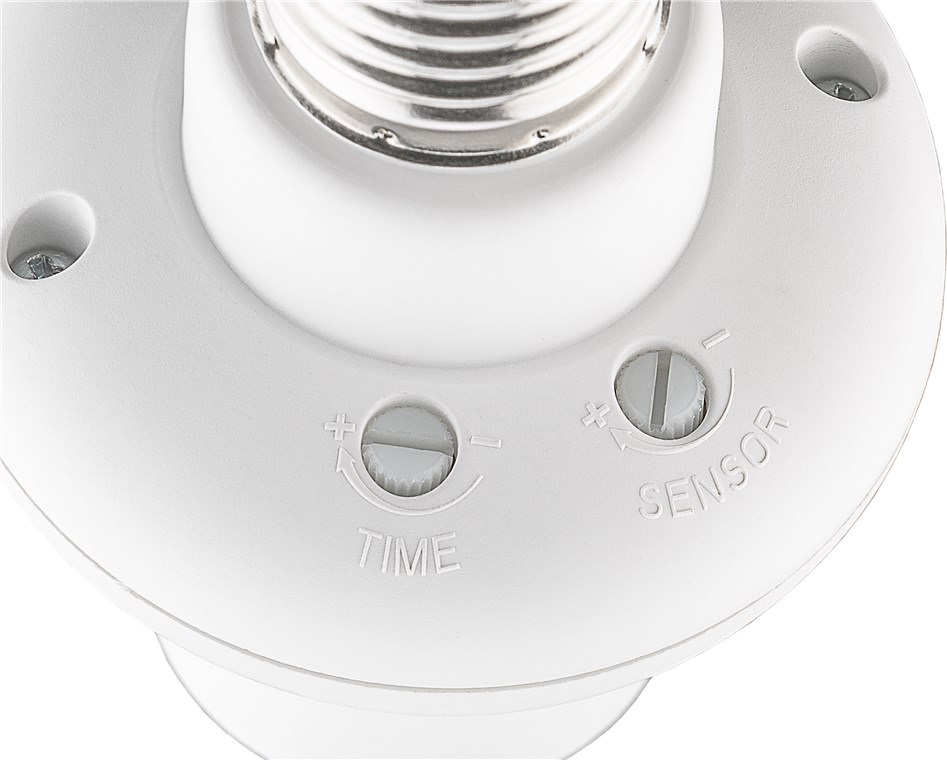

- automatically switches on when motion is detected; adjustable detection sensitivity
- switch-off delay can be adjusted from 15 to 300 seconds
- functionality not impaired by high ambient temperatures (for example, in summer)
- can be combined with three E27 LEDs (max. 20 W), energy-saving lights (max. 20 W) or lightbulbs (max. 60 W)
- installation height: 2–3.5 m, detection range: 3–7 m, 360° coverage angle
Performance
| luminous source |
light emitting diode (LED) |
| No-load power consumption |
0.15 W |
| Max. Power consumption - LED |
20 W |
| Max. Power Consumption - Incandescent |
60 W |
| sensor type |
microwave/active radar (HF) |
| switch-off delay adjustable |
15 - 300 s |
| switch-off delay from |
15 s |
| switch-off delay to |
300 s |
| max view angle |
360 ° |
| Installation height from |
2 m |
| Installation Height up to |
3.5 m |
| max. detection range |
7 m |
| recommended installation height |
2 - 3.5 m |
Device connections
| Input, Voltage Range |
220 - 240 (AC) V |
Build
General
| protection class |
IP20 |
| Appliance Class |
II |
| Frequency range from |
2800 MHz |
| Color |
white |
| Material |
copper, PBT |
| Markings |
WEEE, CE |
| Operating temperature up to |
35 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
65.8 mm |
| Width |
65.8 mm |
| Height |
108.34 mm |
| Weight |
89 g |
