Product and packaging similar. Subject to modifications and errors.

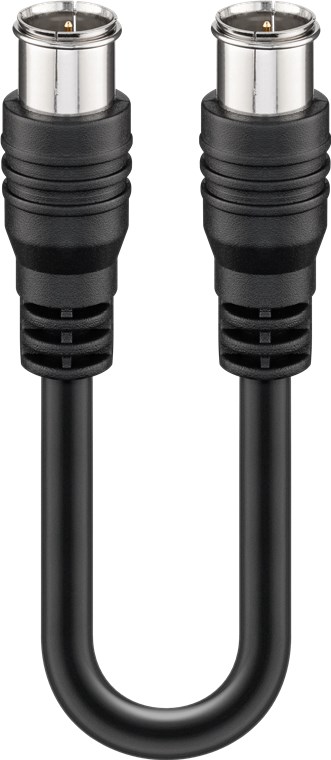

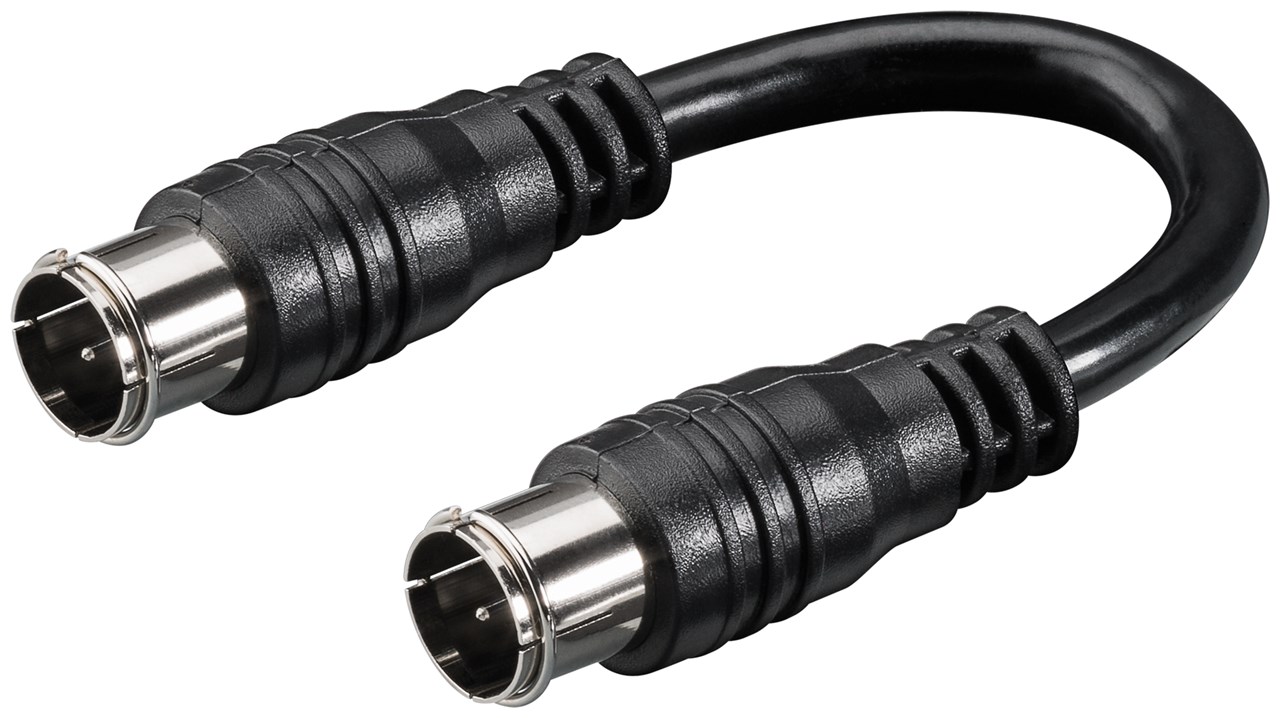

F-Quick SAT antenna cable (80 dB), 2x shielded
F male (Quick) > F male (Quick) (fully shielded)
- double shielded with high density for interference-free signal transmission

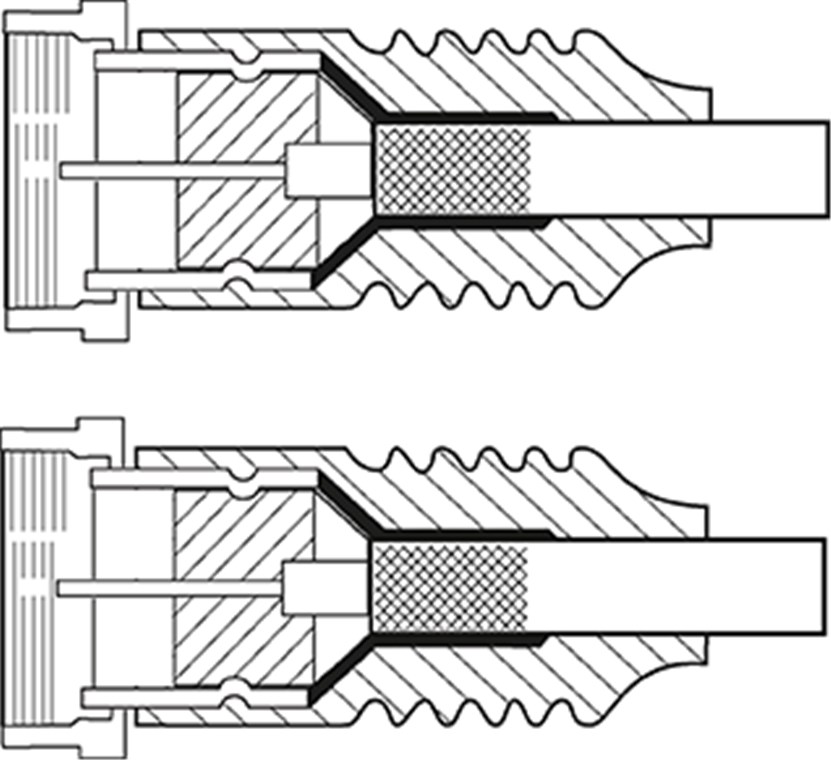

- plugs fully shielded, encapsulated plug on both sides, protection against dust, dirt and mechanical loads
- nickel plated contacts
Connections
| Connection, type |
F male (Quick) |
| Connection 2, type |
F male (Quick) |
| Connection, contact material |
nickel |
| Connection, shielding |
yes |
Cable
| Material cable sheath |
PVC |
| Cable length |
0.13 m |
| Cable type |
coaxial cable |
| Inner conductor material |
CCS |
| inner conductor, core diameter |
0.5 mm |
| Shielding efficiency |
80 dB |
| Cable sheath diameter (approx.) |
5.3 mm |
| Number of shieldings |
2 x |
| Type 1, shielding |
foil (aluminium) |
| Type 2, shielding |
braid (aluminium) 112x |
Signal transmission
General
| Outer sheath material |
PVC |
| Color |
black |
| Markings |
WEEE, CE |
| Packaging type |
Bulk |
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
