Product and packaging similar. Subject to modifications and errors.

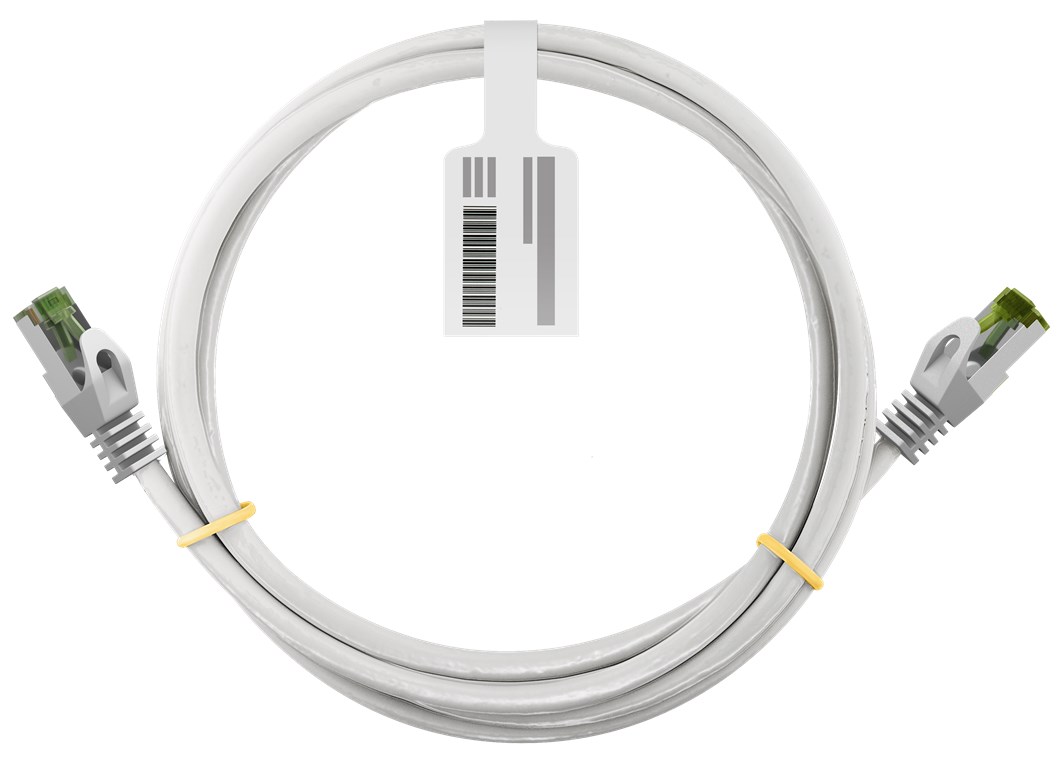

GHMT-certified CAT 8.1 S/FTP Patch Cord, AWG 26, white
copper conductor, LSZH halogen-free cable sheat
Reliable performance of the patch cable in CAT 8.1 channels is best ensured when combined with the GHMT-certified components listed below.
Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09):
2 Connector Channel Copper, Class I up to 2 GHz
GHMT Type Approval
Balanced cord: Wentronic GmbH CAT 8 patch cord
Part no.: CAT 8.1 - 1 m S/FTP PiMF white
Certified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117
Certified installation cables: 61126, 61127, 61128
Certified Keystone coupler: 61137
Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09):
2 Connector Channel Copper, Class I up to 2 GHz
GHMT Type Approval
Balanced cord: Wentronic GmbH CAT 8 patch cord
Part no.: CAT 8.1 - 1 m S/FTP PiMF white
Certified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117
Certified installation cables: 61126, 61127, 61128
Certified Keystone coupler: 61137
- The 1 m LAN cable supports 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and is backwards compatible with 10BASE-T, 100BASE-TX and 1000BASE-T.
- With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of a CAT 6A cable.
- GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- Assembled on both ends with RJ45 connectors (8P8C) with 50 μm gold-plated contact surfaces and latch protection.
- CAT 8 LAN cable is suitable for Power over Ethernet (PoE, PoE+, UPoE, 4PPoE) and HDBaseT.
- Low-smoke and halogen-free LSZH cable sheath
The products are only labelled with a paper label, plastic bags and plastic cable ties are not used.
Technical specifications
Connections
| Connection, housing material | PVC |
| Connection, type | RJ45 male (8P8C) |
| Contacting | EIA/TIA-568 B |
| Latch protection | both sides |
| Connection 2, type | RJ45 male (8P8C) |
| Connection, contact material | gold-plated 50µm |
| Connection, shielding | yes |
| Kink protection | both sides |
Cable
| Material cable sheath | LSZH |
| Specification | CAT 8.1 |
| Shielding class | S/FTP (PiMF) |
| LSZH compliant | yes |
| Cable length | 1 m |
| Cable type | Cat 8.1 raw cable |
| Inner conductor material | CU (copper) |
| Cable sheath diameter (approx.) | 6.2 mm |
| Number of shieldings | 2 x |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| AWG | 26/7 (stranded) |
Signal transmission
| max. bandwidth | 2000 MHz |
General
| Outer sheath material | LSZH |
| Color | white |
| Markings | WEEE, CE, GHMT Premium Verification Programm |
| Special feature | Length indication on connector |
| Packaging type | Cable Tag |
Dimensions / Weight
| Consumption Unit | 1 pc. bulk |
£8.99 RRP
Packing units:
1 / 120
