Series 2.0

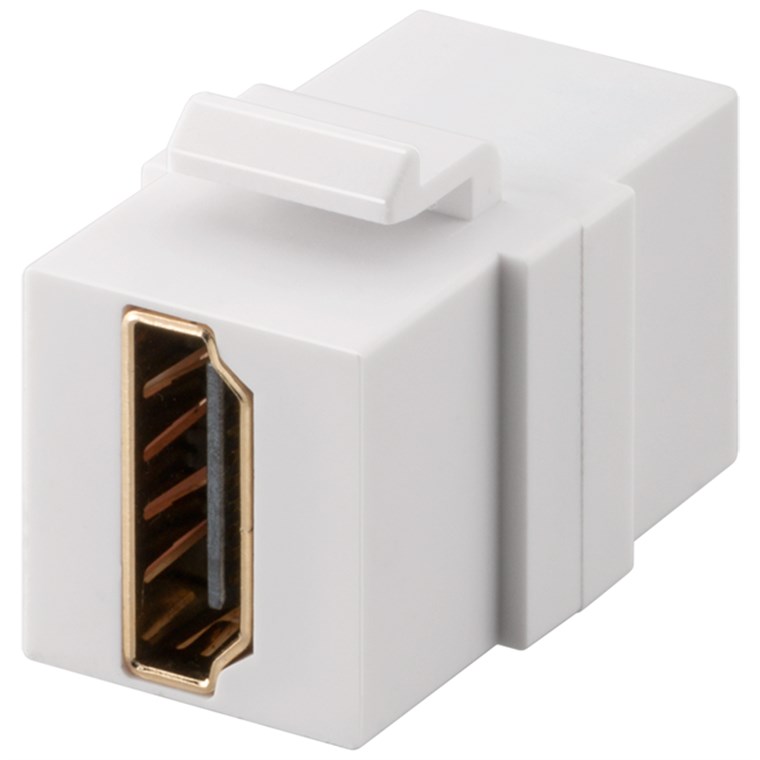

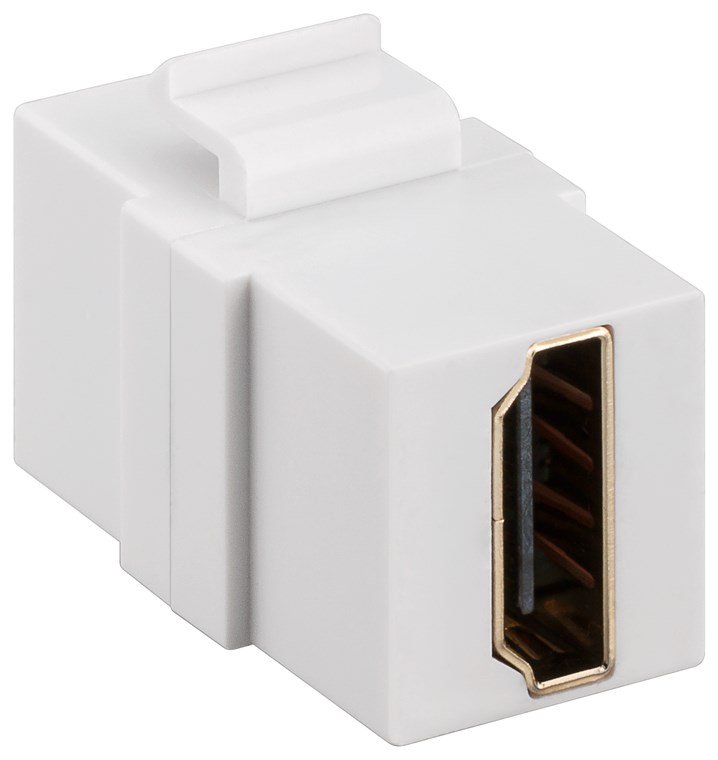

HDMI™ Keystone Module with 2x HDMI™ Jack Sockets, 4K @ 60 Hz
HDMI™ A jack socket > HDMI™ A jack socket
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- Keystone module with 2x vertically aligned HDMI™ sockets for connecting HDMI™ cables routed in the wall
- Also suitable for installation in Keystone patch panels, network sockets and housings
- The module provides high-resolution, digital image transmission with Ultra HD at up to 4K @ 60 Hz (downward compatible) and a data rate of up to 18 Gbit/s
- Perfect for connecting home cinema systems, projectors, Blu-ray players or game consoles such as the PlayStation or Xbox
- The white colour of the HDMI™ adapter blends discreetly into Keystone wall plates and enclosures
- Gold-plated contacts prevent corrosion and provide extra durability
- Housing material: plastic
Labelling
| Disclaimer |
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. |
Connections
| Connection, type |
2x HDMI™ female (Type A) |
| construction form |
Keystone grid (14,9 x 17,0 mm) |
| Connection, contact material |
gold-plated |
Signal transmission
| max. transmission rate |
18 Gbit/s |
| Supported video standards |
4K/60Hz (3840x2160) UHD |
General
| Color |
white |
| Markings |
WEEE, CE |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
85 °C |
| Packaging type |
Bulk |
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
| Length |
28 mm |
| Width |
17.2 mm |
| Height |
16.1 mm |
