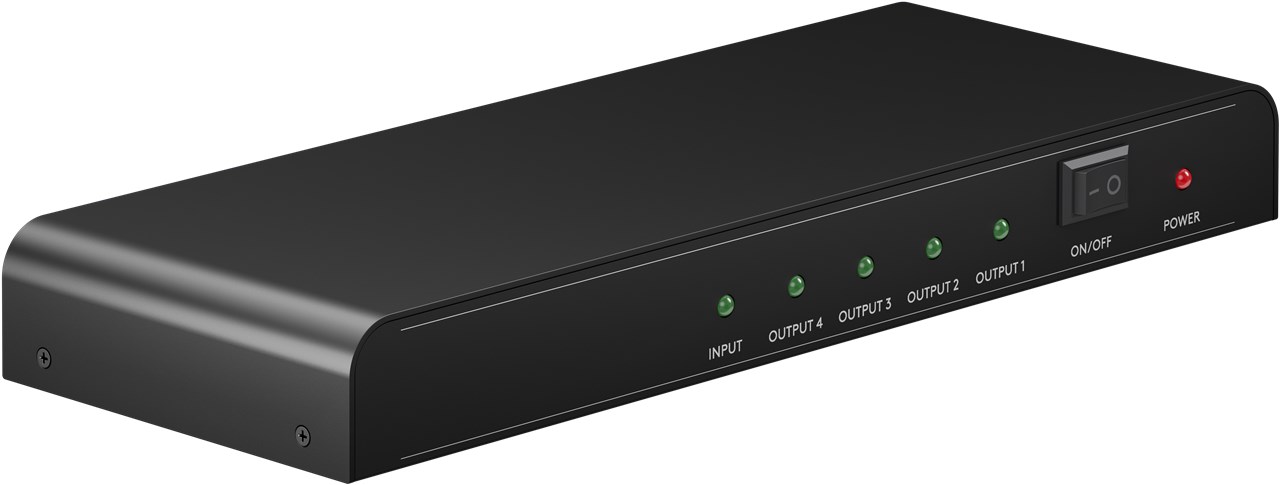

HDMI™ Splitter 1 to 4
4K@30Hz

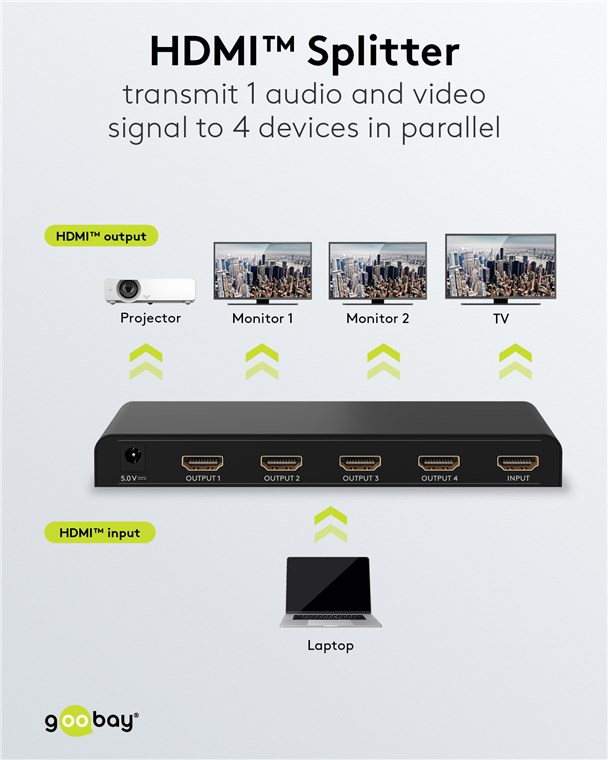

- The HDMI™ splitter duplicates 1x HDMI™ input signal to up to 4x HDMI™ outputs such as TV set, monitor or projector.
- The HDMI™ multi connector mirrors audio and video signals to the connected devices, e.g. for simultaneous projection in different rooms.
- The HDMI™ splitter box 1x4 supports resolutions up to 4K @ 30 Hz (backward compatible).

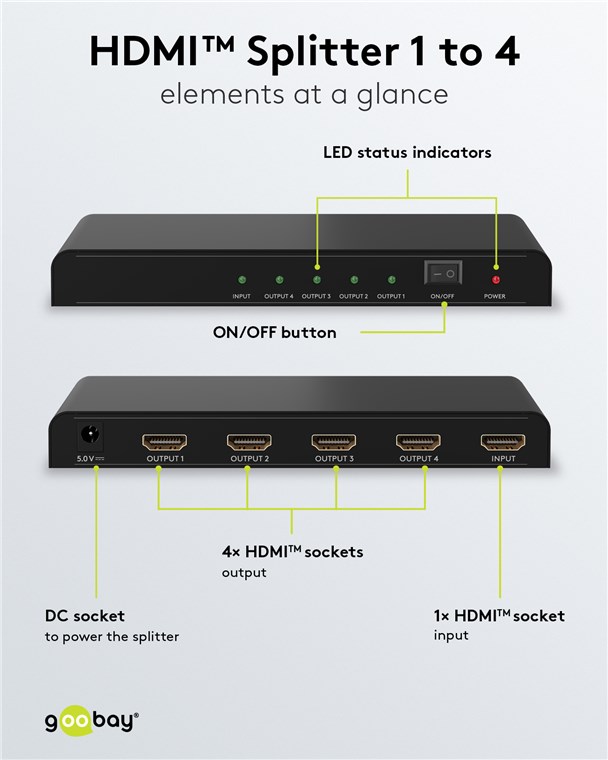

- The LED display of the HDMI™ extender indicates which connections are activated.
- HDMI™ adapter 1 in 4 out in a flat design, equipped with heat-dissipating aluminium housing and gold-plated connectors.
- Plug & Play allows for an easy connection without the need to install additional drivers.
- Powered via 5 V power supply unit and DC connector (both included in the scope of delivery).
Labelling
| Disclaimer |
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. |
Connections
| Input, type |
HDMI™ female (Type A) |
| Connection, type |
HDMI™ female (Type A) |
| Output, type |
4 HDMI™ female (Type A) |
Signal transmission
| max. transmission rate |
10.2 Gbit/s |
| Signal direction |
unidirektional |
| Max. resolution |
4K/30Hz (3840x2160) UHD |
| Supported video standards |
4K/30Hz (3840x2160) UHD, 1080p (60Hz) Full HD, Full HD 1080i (60Hz), 3D, HDCP |
| other supported standards |
HDCP 1.4, HDCP 1.3 |
| supported audio standards |
Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Audio Return Channel (ARC) |
General
| Goobay Version |
1.4 |
| Color |
black |
| Markings |
CE, WEEE |
| Operating temperature up to |
40 °C |
| Packaging type |
Bulk |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
178 mm |
| Width |
67 mm |
| Height |
20 mm |
| Weight |
275 g |
Scope of delivery
| Scope of delivery |
manual, power supply |
