Product and packaging similar. Subject to modifications and errors.
HDMI™ Splitter 1 to 8
4K@60Hz

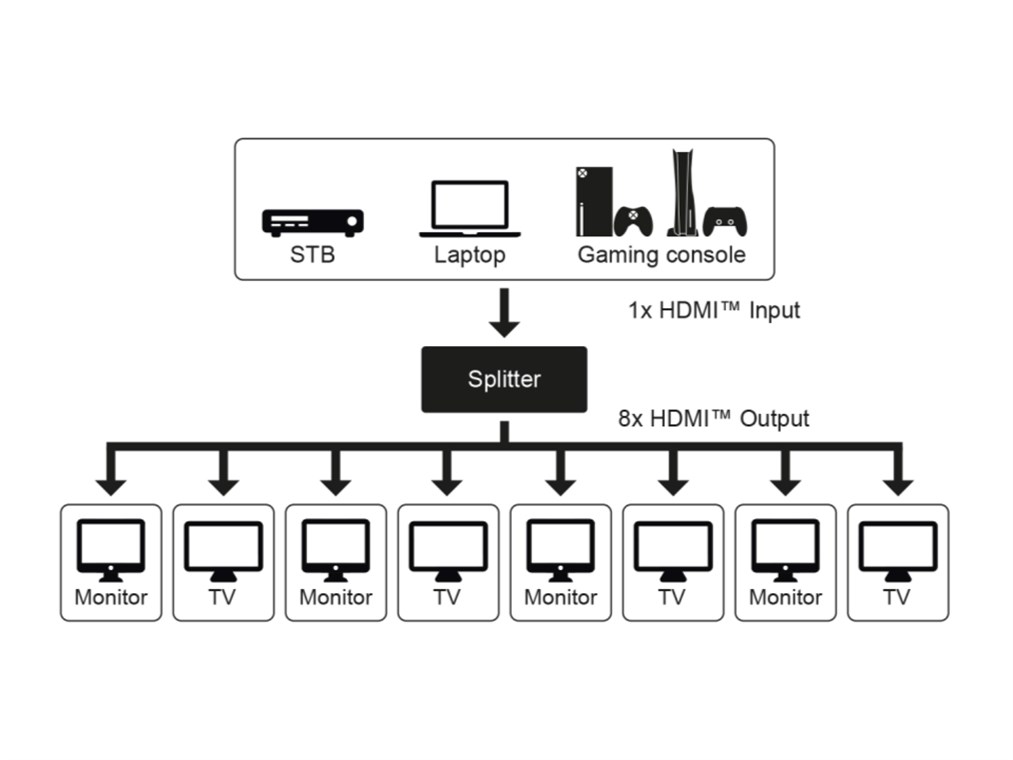

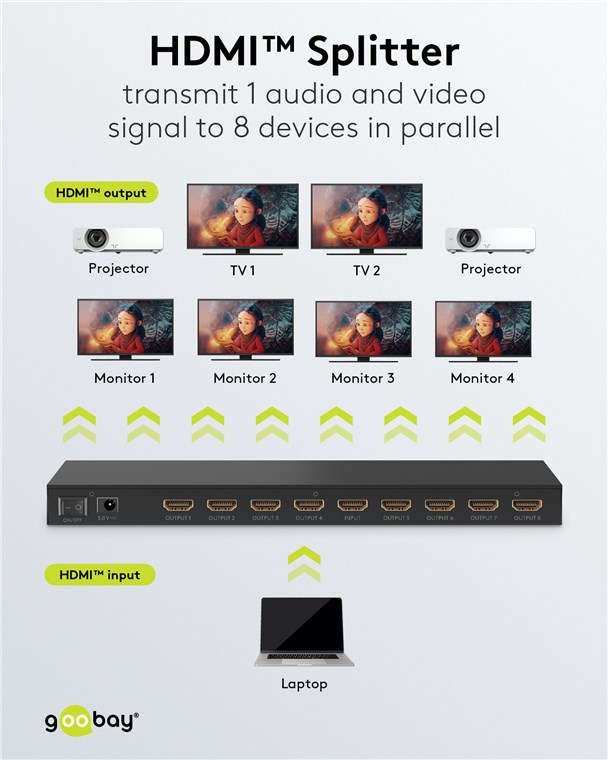

- The HDMI™ splitter duplicates 1x HDMI™ input signal to up to 8x HDMI™ outputs such as TV set, monitor or projector.
- The HDMI™ multi connector mirrors audio and video signals to the connected devices, e.g. for simultaneous projection in different rooms.

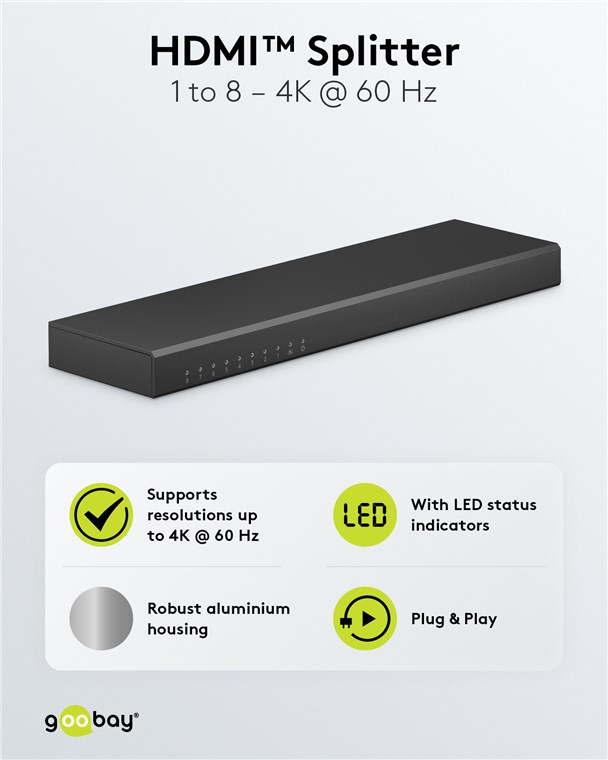

- The HDMI™ splitter box 1x8 supports resolutions up to 4K @ 60 Hz (backward compatible).

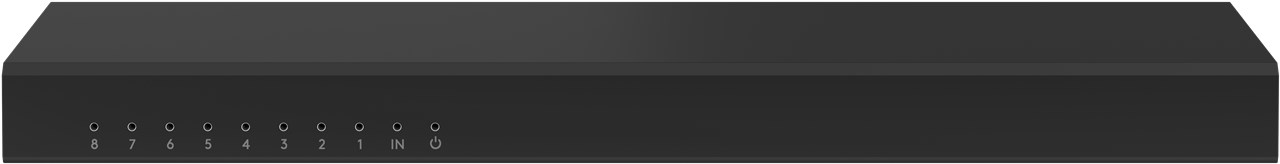

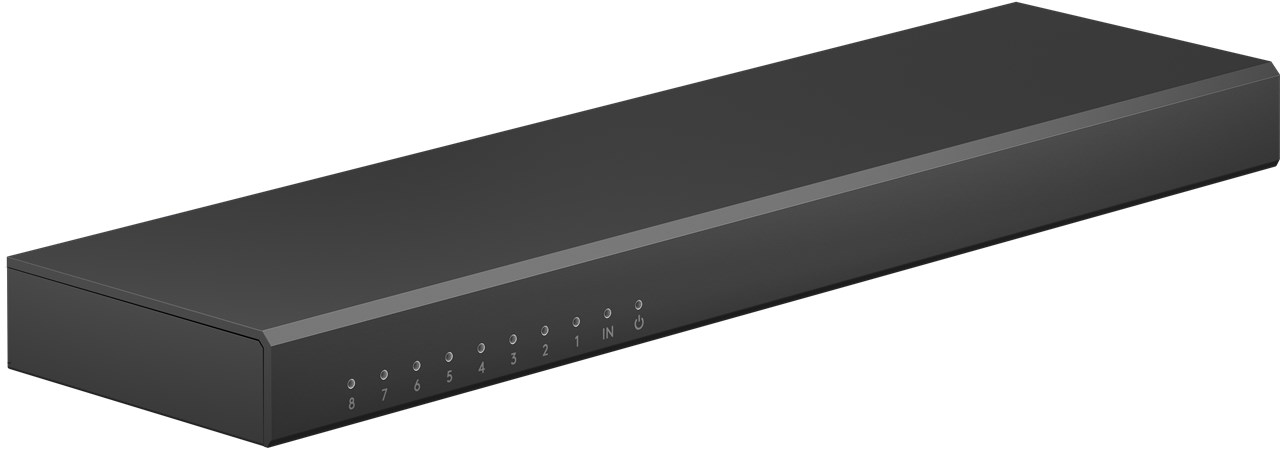

- The LED display of the HDMI™ extender indicates which connections are activated.

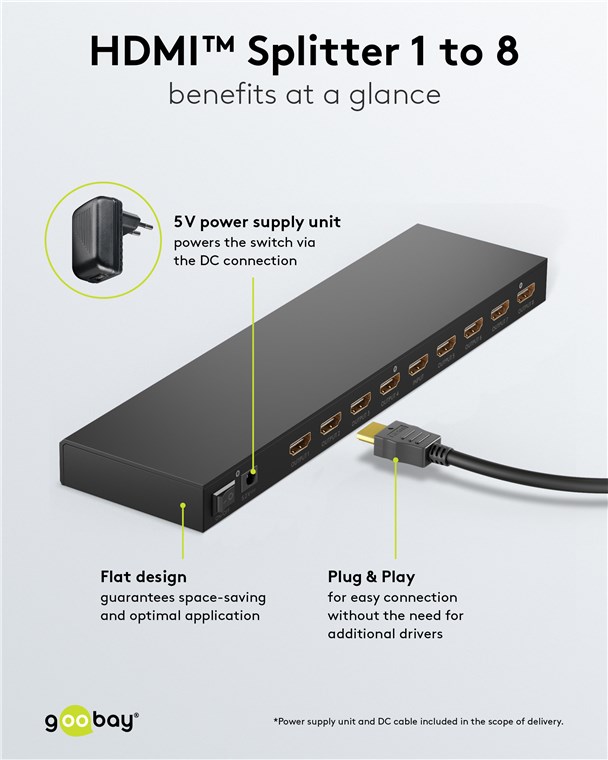

- HDMI™ adapter 1 in 8 out in a flat design, equipped with heat-dissipating aluminium housing and gold-plated connectors.
- Plug & Play allows for an easy connection without the need to install additional drivers.

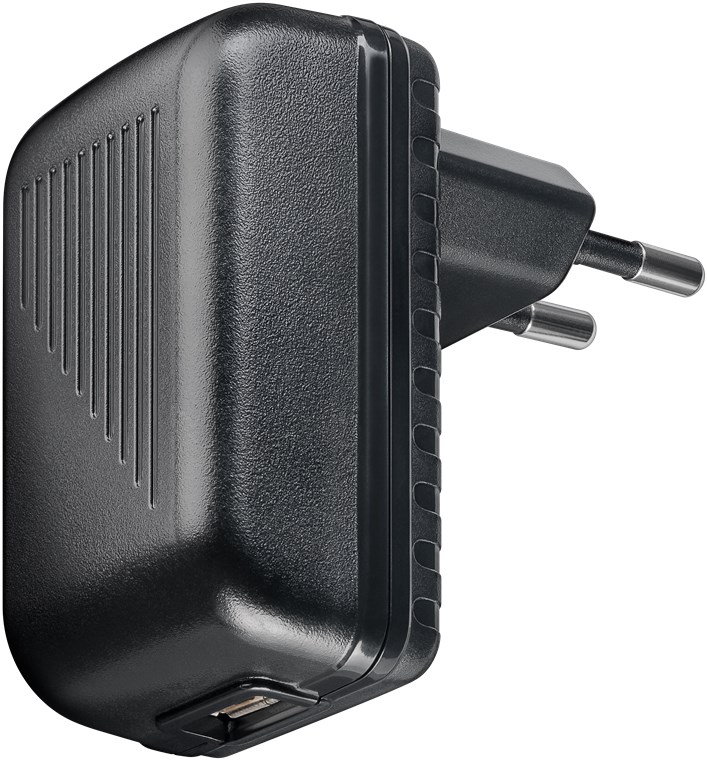

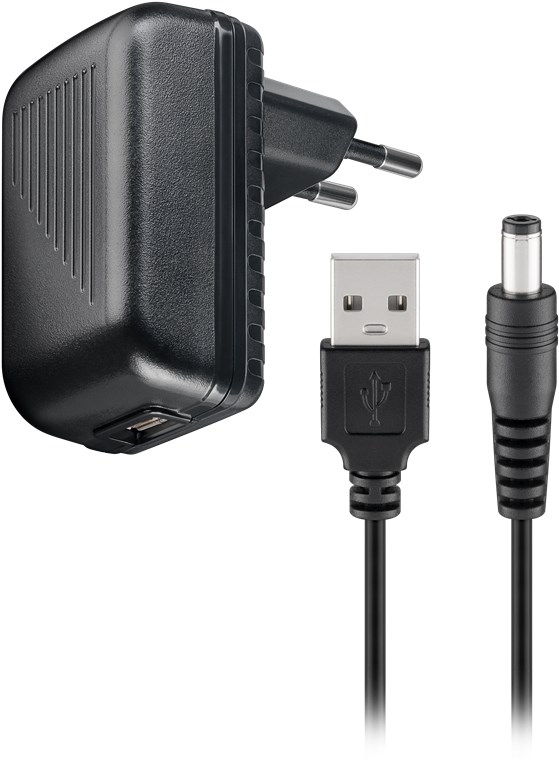

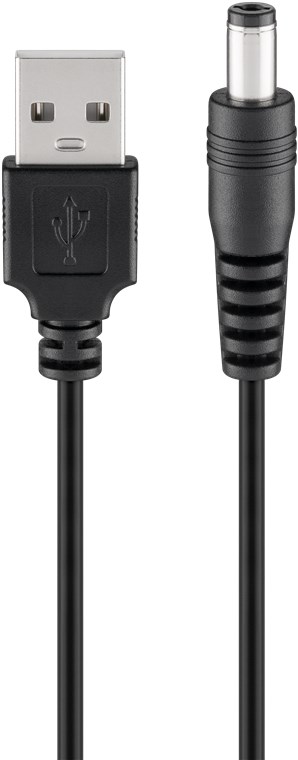

- Powered via 5 V power supply unit and Micro-USB cable (both included in the scope of delivery).
Labelling
| Disclaimer |
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. |

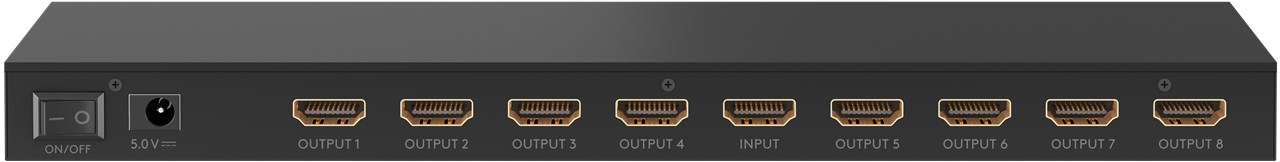

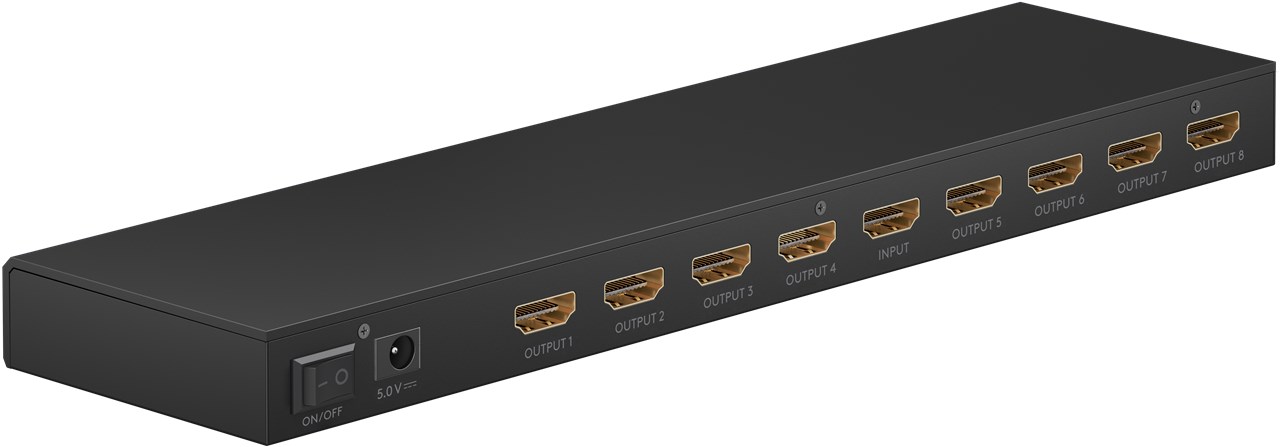

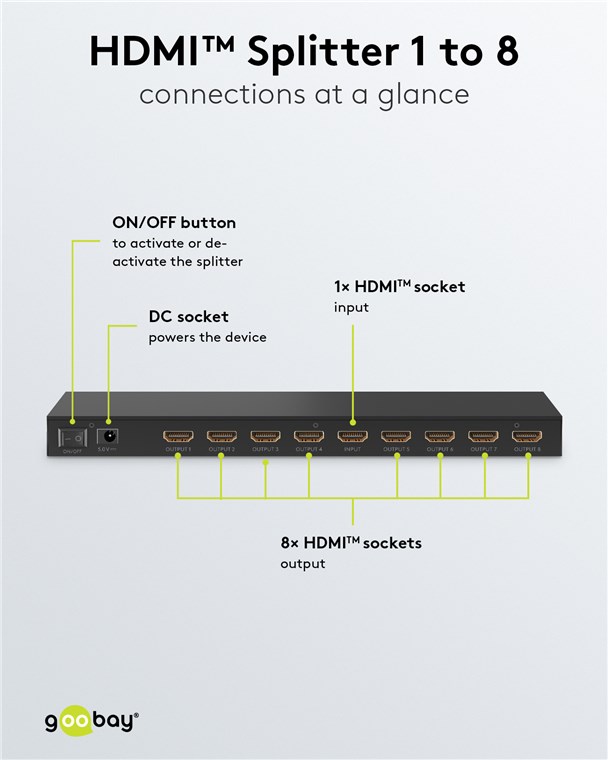

Connections
| Input, type |
HDMI™ female (Type A) |
| Output, type |
8 HDMI™ female (Type A) |
Signal transmission
| max. transmission rate |
18 Gbit/s |
| Signal direction |
unidirektional |
| Max. resolution |
4K/60Hz (3840x2160) UHD |
| Supported video standards |
4K/30Hz (3840x2160) UHD, 1080p (60Hz) Full HD, Full HD 1080i (60Hz), 3D |
| supported audio standards |
LPCM 7.1, Dolby Digital HD (DTS HD), Dolby Digital TrueHD |
General
| Goobay Version |
2.0 |
| Color |
black |
| Markings |
CE, WEEE |
| Operating temperature up to |
40 °C |
| Packaging type |
Bulk |

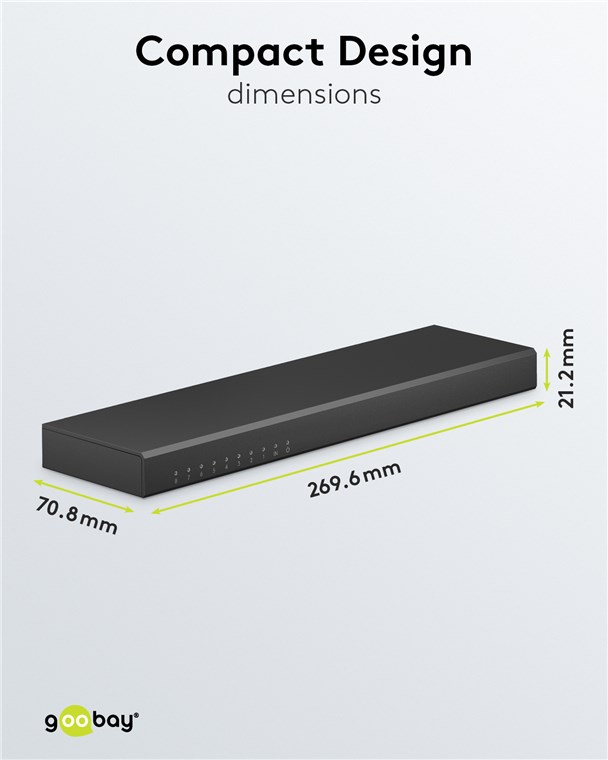

Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
269.6 mm |
| Width |
70.8 mm |
| Height |
21.2 mm |
| Weight |
387 g |
Scope of delivery
| Scope of delivery |
manual, power supply |
