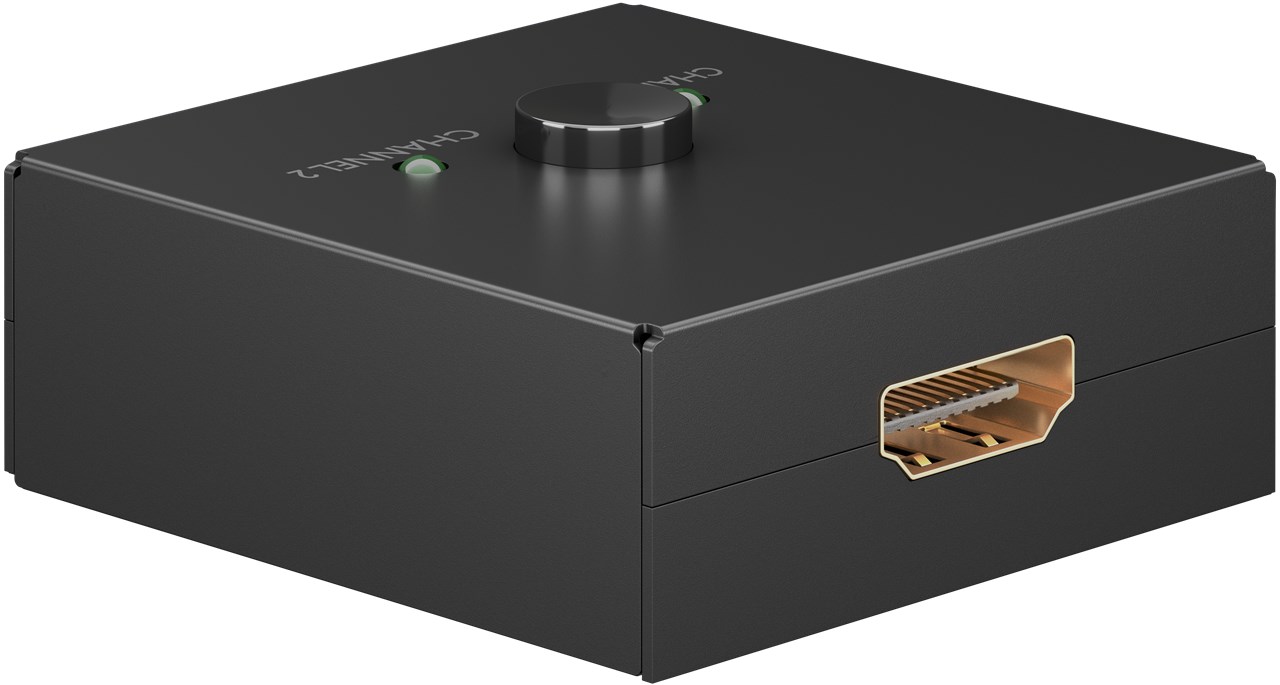

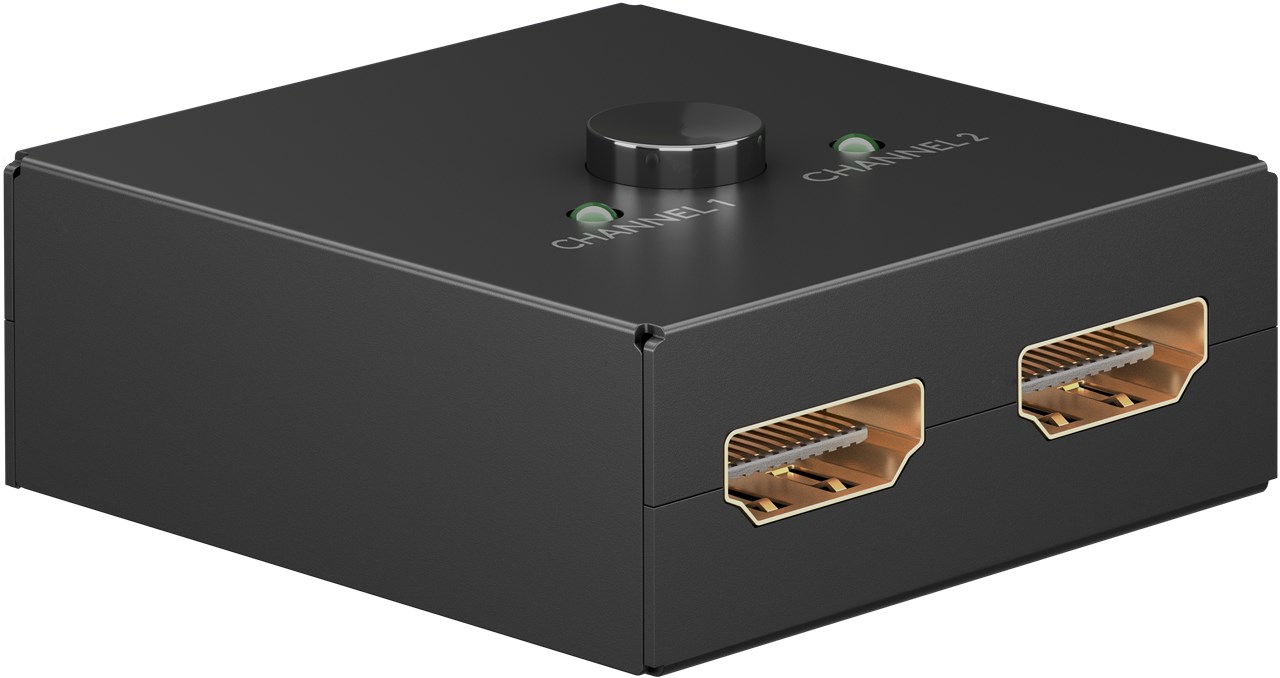

HDMI™ Switch 2 to 1
4K@30Hz

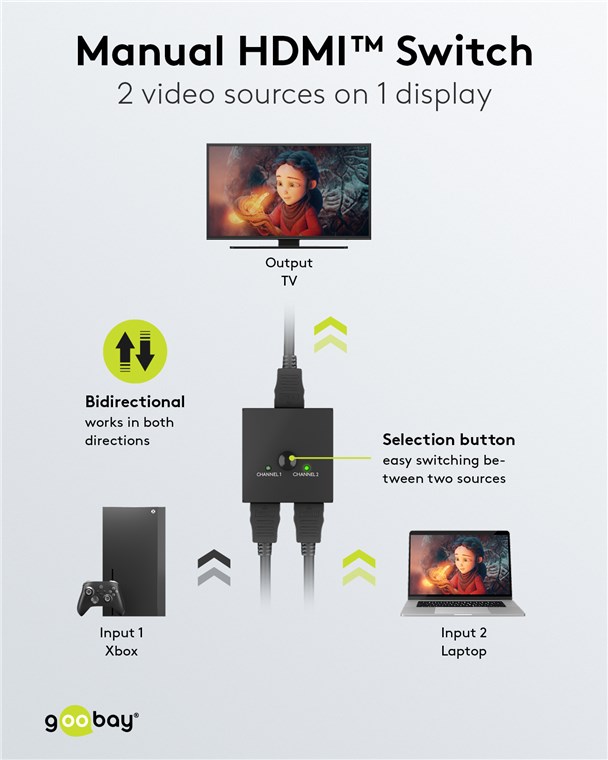

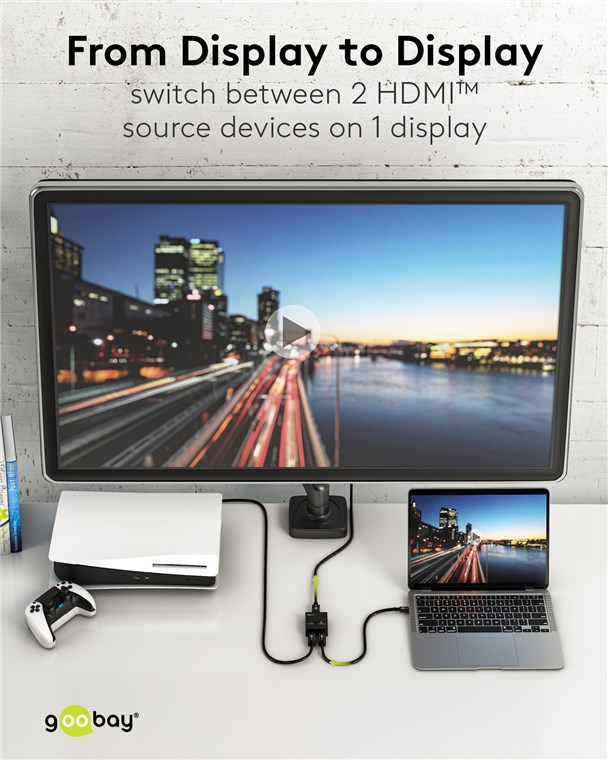

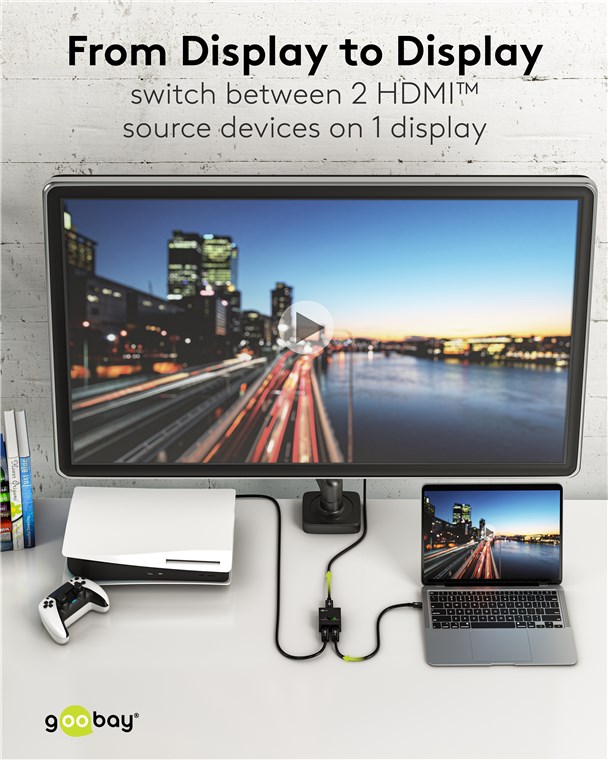

With the bidirectional HDMI™ switcher, you can conveniently switch your display, e.g. TV, monitor or projector, between 2x HDMI™ sources such as game consoles, DVD or Blu-ray players. This way, you avoid the hassle of reconnecting cables and laying an additional, second HDMI™ cable to the display.

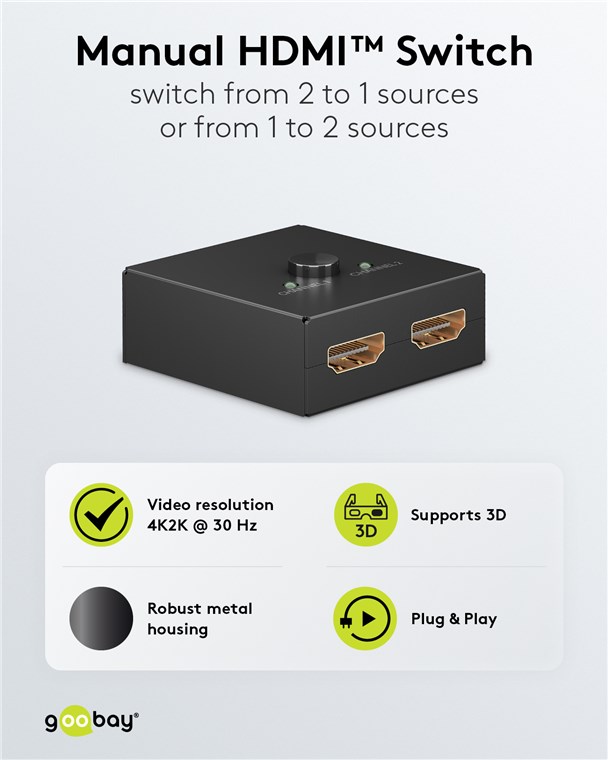

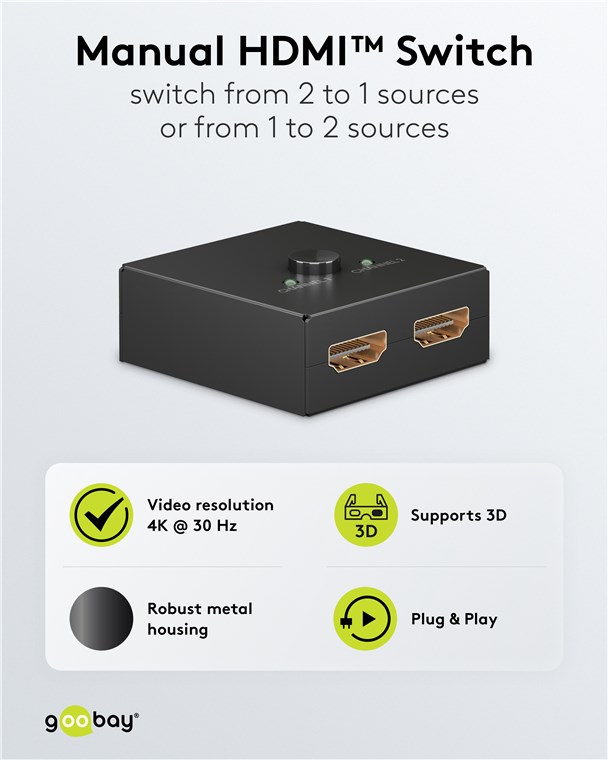

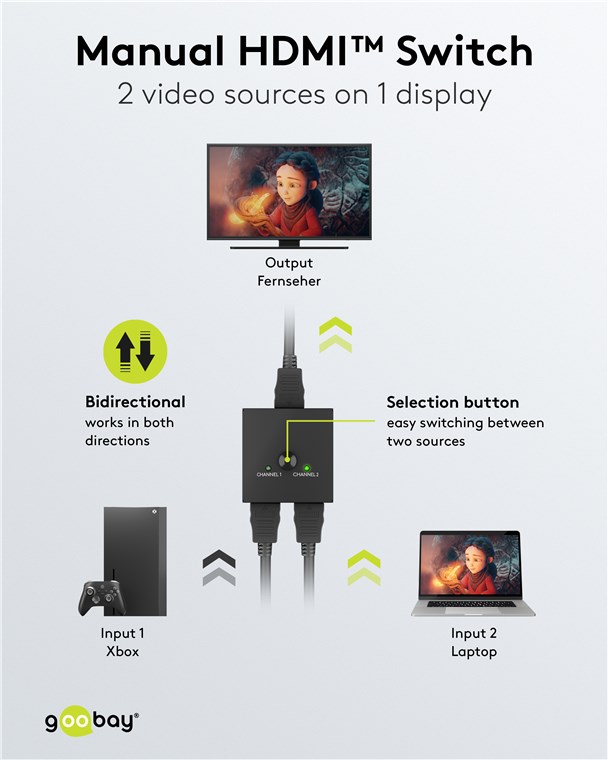

- The bi-directional HDMI™ switch routes 1x HDMI™ input signal to 2x HDMI™ end devices such as displays or optionally 2x input signals to 1x end device.
- The HDMI™ switcher 2 in 1 out supports 3D and resolutions up to 4K @ 30 Hz and is HDCP-compliant.

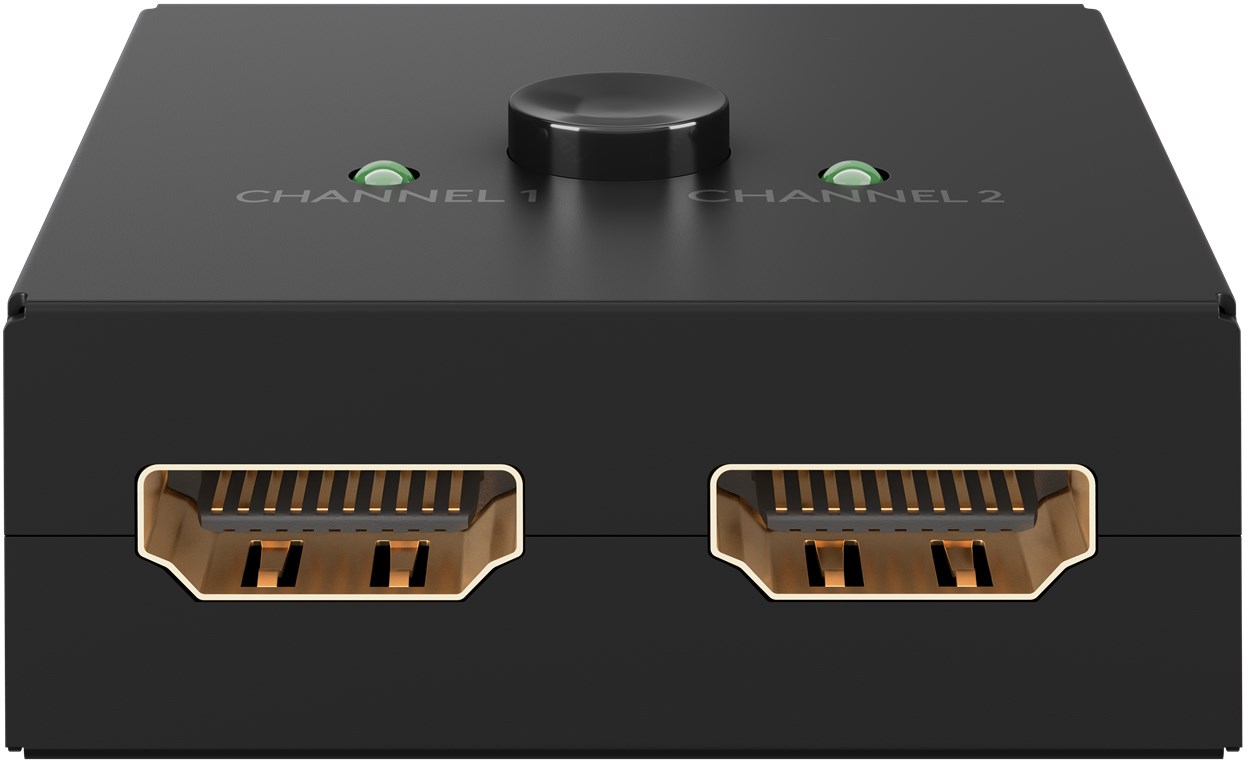

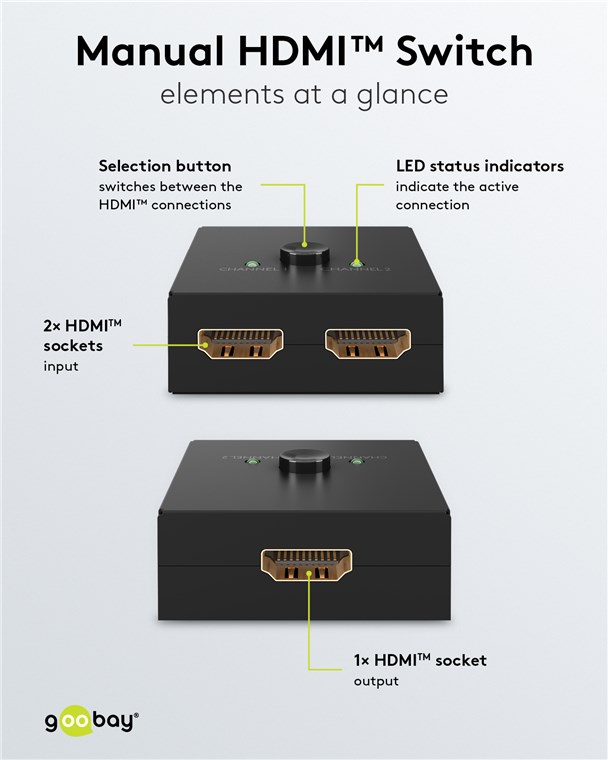

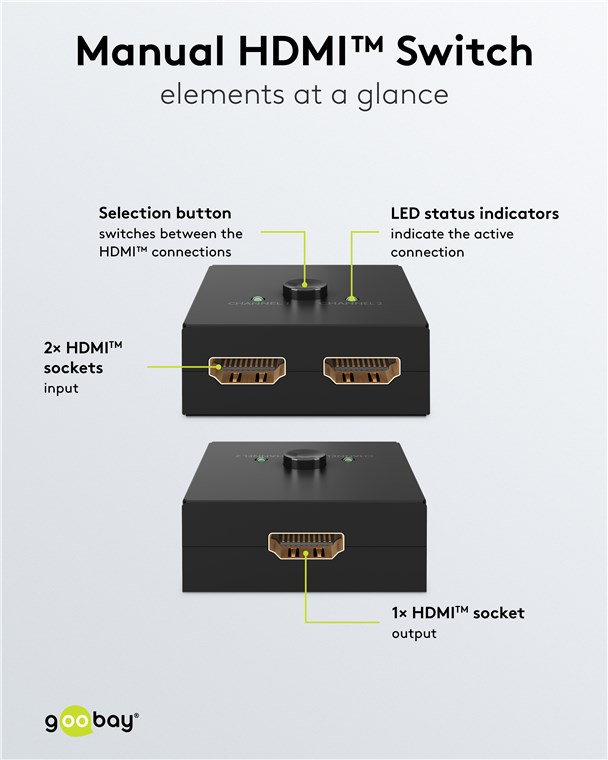

- Press the button to select either output 1 or 2 as output display.
- A convenient switch on the HDMI™ extender eliminates the need to reconnect the cables and protects the connections.
- Suitable for connecting e.g. Blu-ray player, SAT/TV receiver, computer, tablet, game consoles such as PS4 or Xbox to TV, monitor or projector.

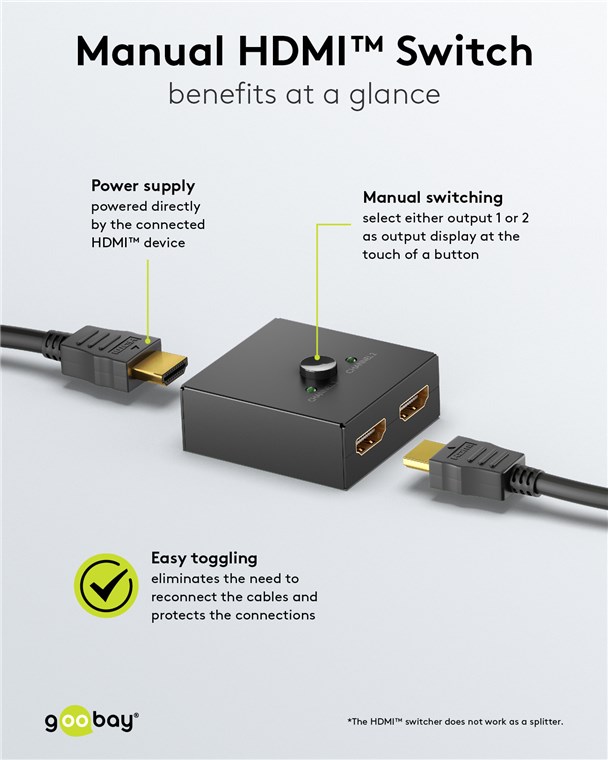

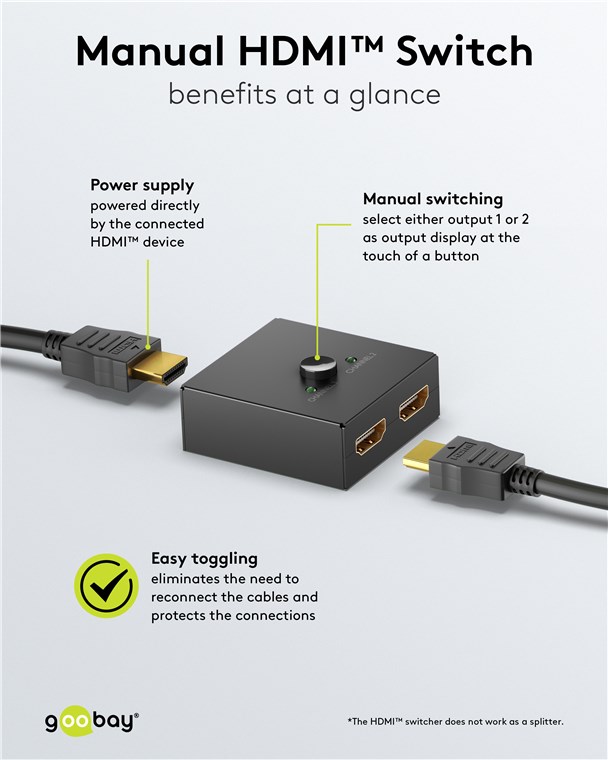

- The HDMI™ switchbox 2x1 is powered via the connected HDMI™ device, not requiring an external power supply.
- Note: The HDMI™ switcher does not work as a splitter!
Labelling
| Disclaimer |
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. |

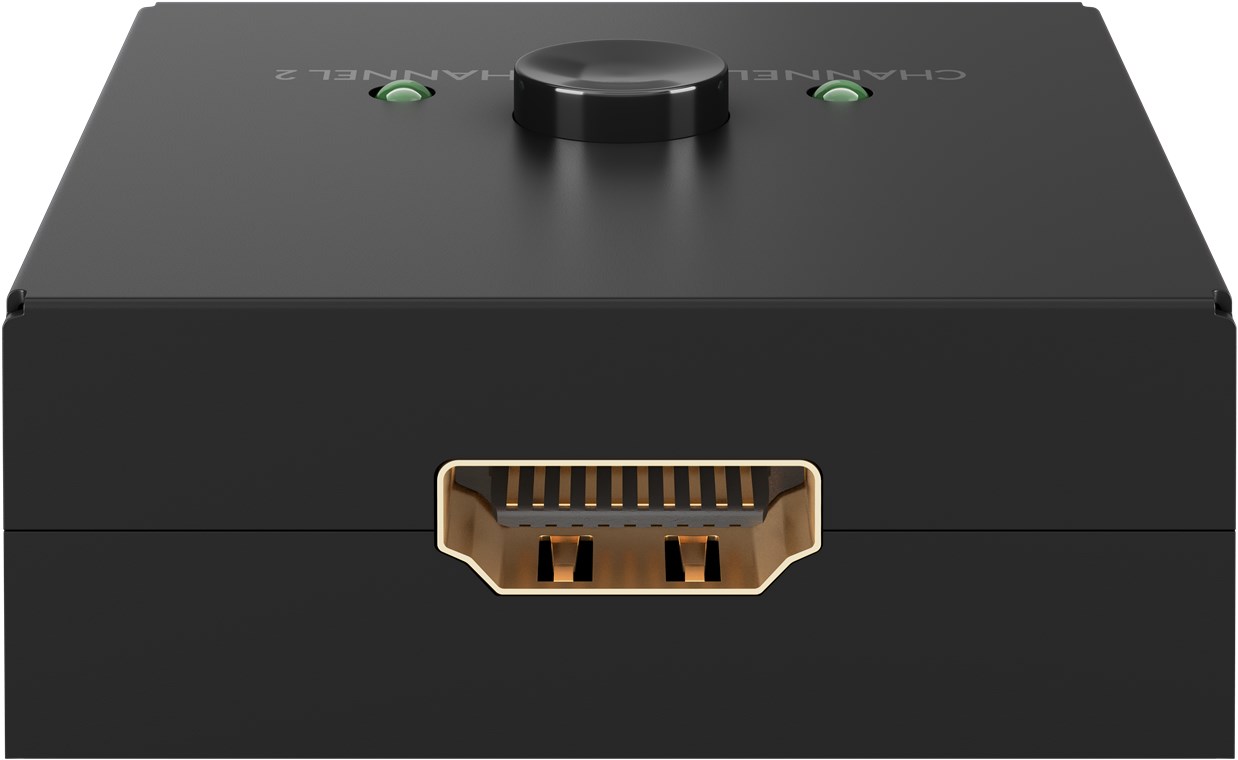

Connections
| Connection, type |
HDMI™ female (Type A) |
| Input, type |
2x HDMI™ female (Type A) |
| Output, type |
HDMI™ female (Type A) |
Signal transmission
| Signal direction |
bidirectional |
| Max. resolution |
4K/30Hz (3840x2160) UHD |
| Supported video standards |
4K/30Hz (3840x2160) UHD, 1080p (60Hz) Full HD, Full HD 1080i (60Hz), 3D |
| other supported standards |
HDCP 1.4, HDCP 1.3 |
| supported audio standards |
Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Audio Return Channel (ARC) |
| max. transmission rate |
10.2 Gbit/s |
General
| Goobay Version |
1.4 |
| Color |
black |
| Markings |
CE, WEEE |
| Operating temperature up to |
40 °C |
| Packaging type |
Bulk |

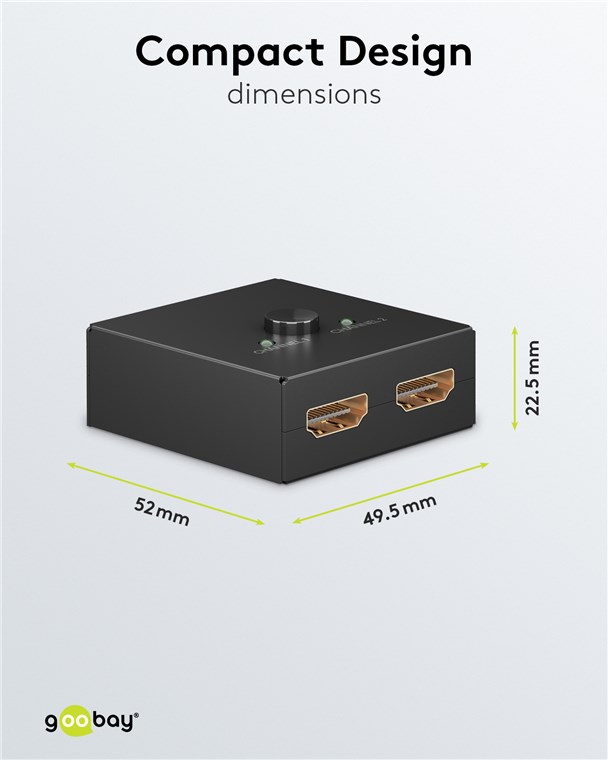

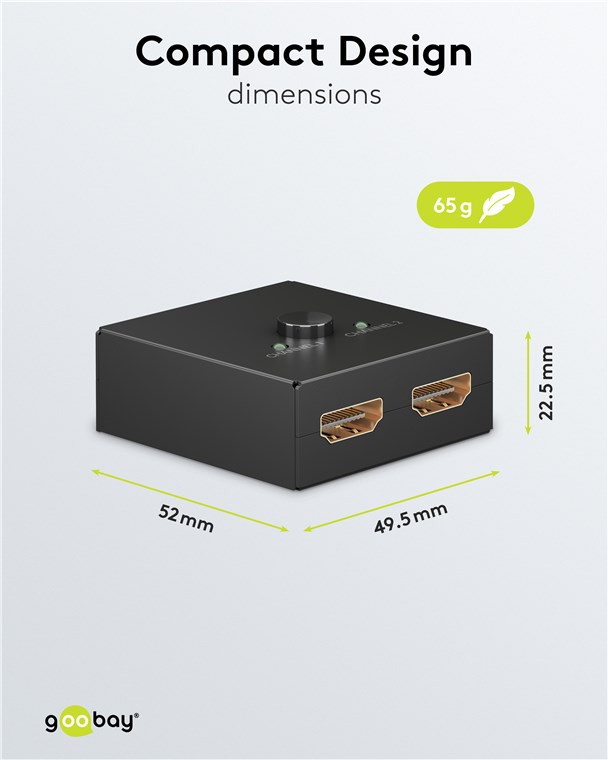

Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
49.5 mm |
| Width |
52 mm |
| Height |
22.5 mm |
| Weight |
65 g |
Scope of delivery
