HDMI™ Switch 2 to 1
4K@60Hz
With the bidirectional HDMI™ switcher, you can conveniently switch your display, e.g. TV, monitor or projector, between 2x HDMI™ sources such as game consoles, DVD or Blu-ray players. This way, you avoid the hassle of reconnecting cables and laying an additional, second HDMI™ cable to the display.

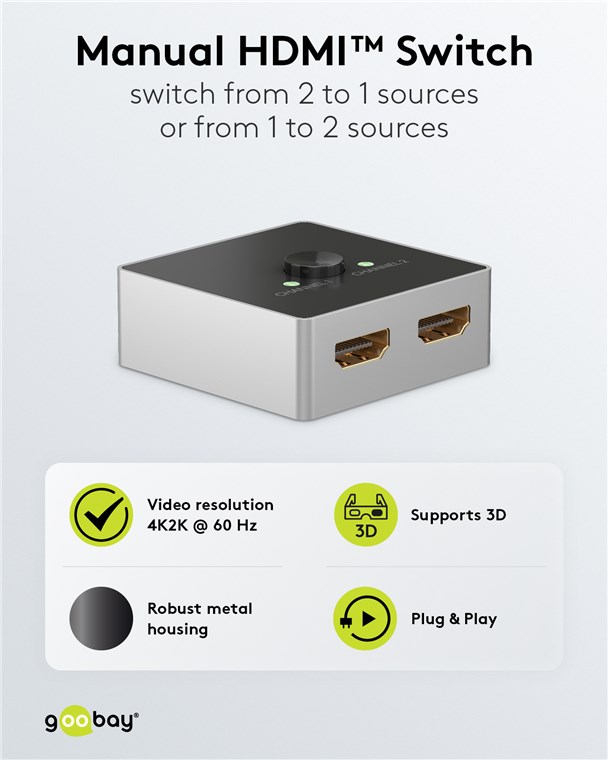

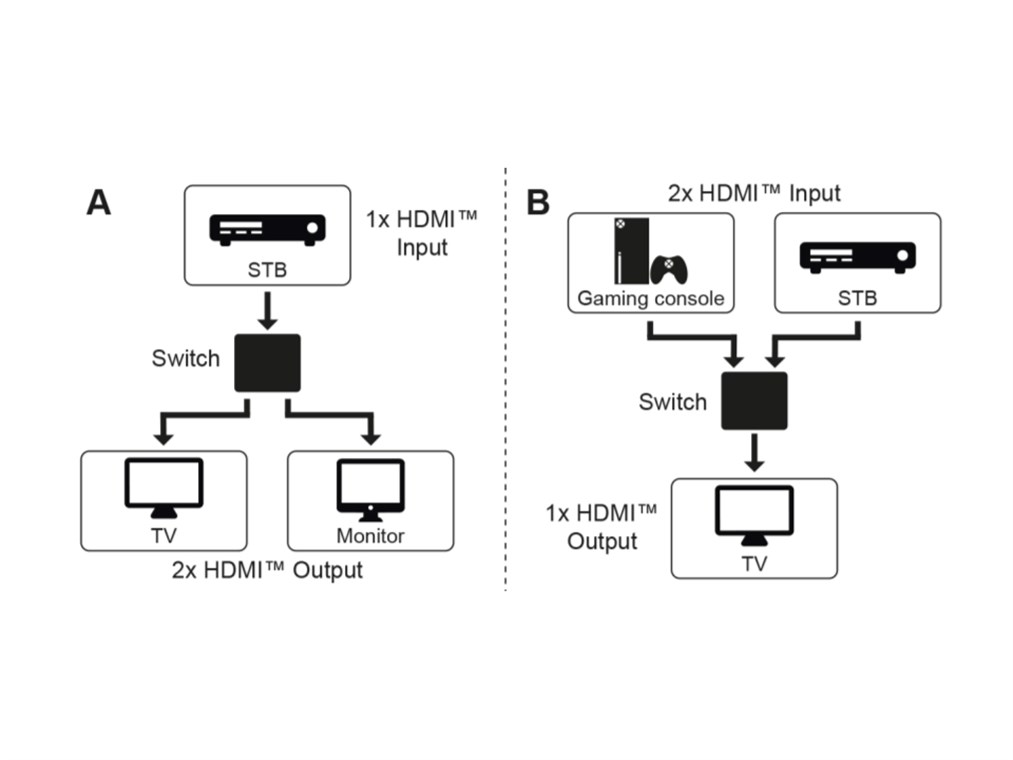

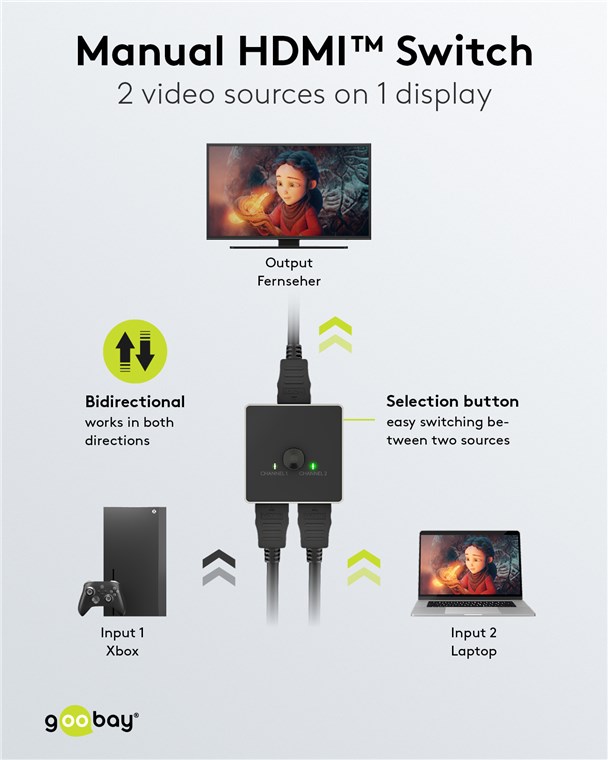

- The bi-directional HDMI™ switch routes 1x HDMI™ input signal to 2x HDMI™ end devices such as displays or optionally 2x input signals to 1x end device.
- High resolution: The HDMI™ switcher 2 in 1 out supports resolutions up to 4K @ 60 Hz, 3D content and HDCP

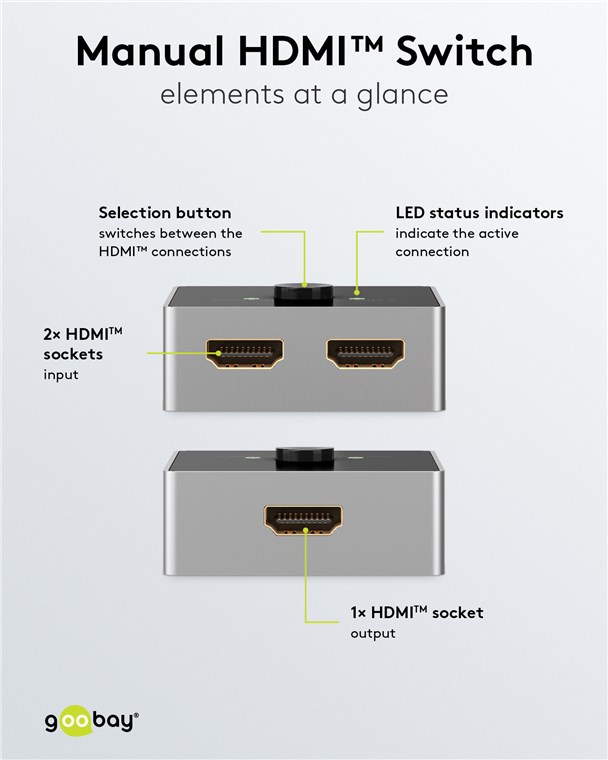

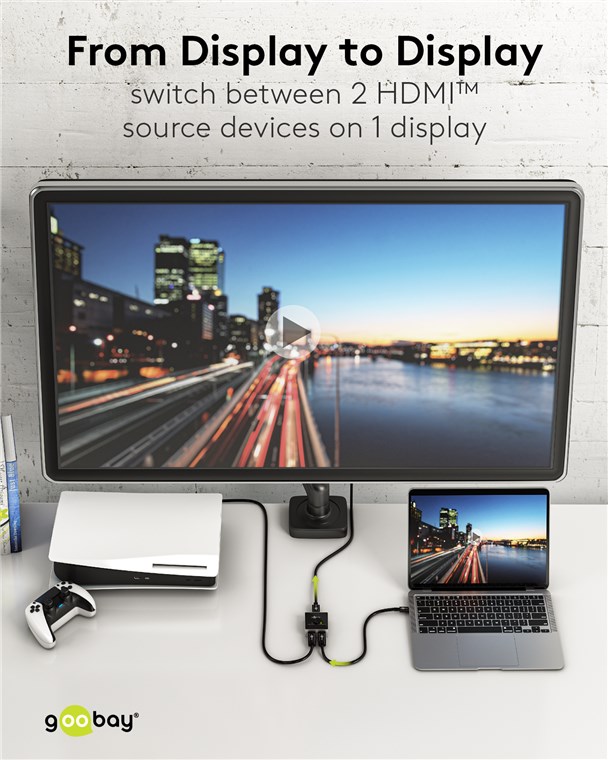

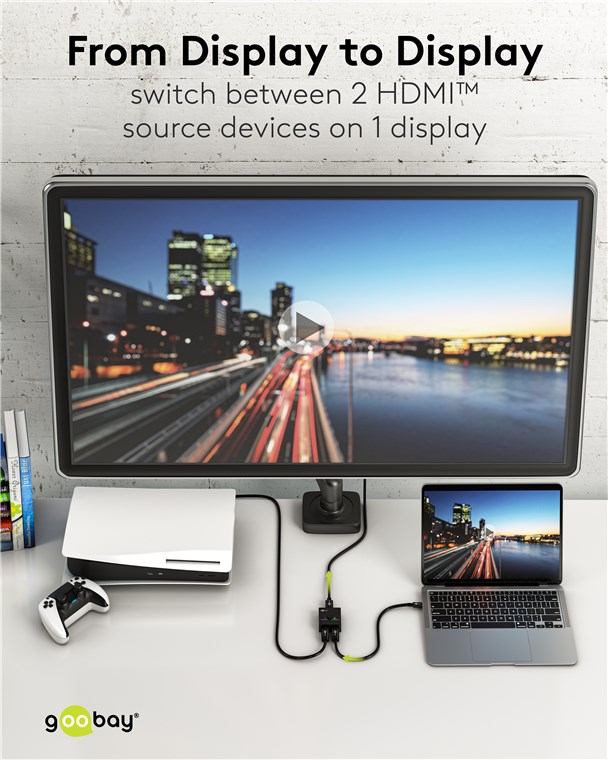

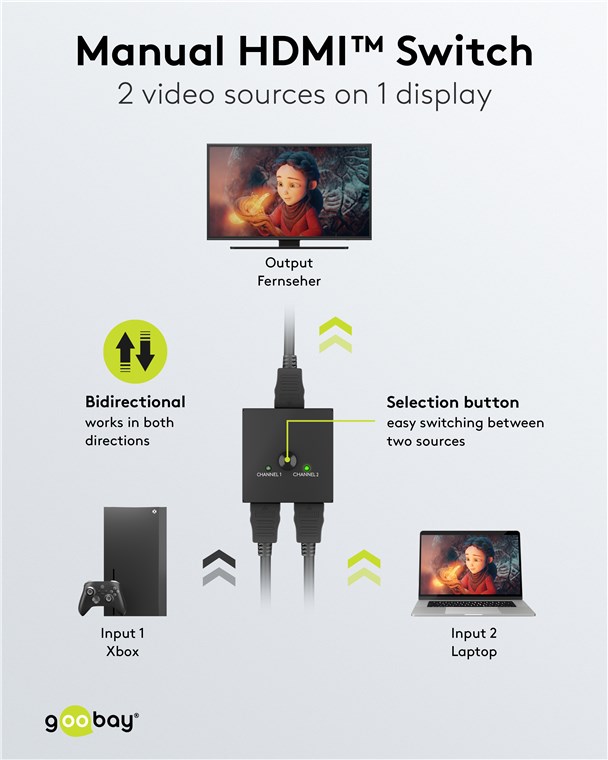

- 2 inputs, 1 display: At the touch of a button, either input 1 or input 2 is mirrored on the output display

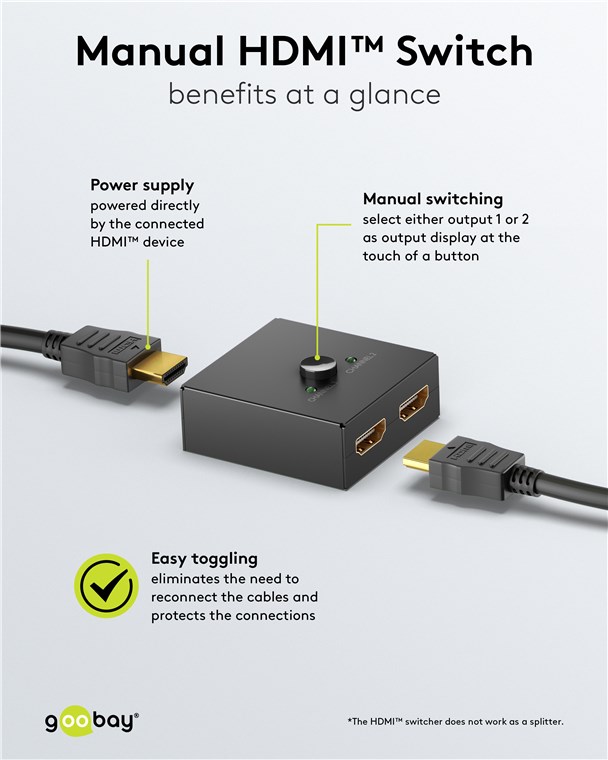

- The convenient switch on the HDMI™ extender eliminates the need to reconnect cables and protects the connections
- Less cable clutter between Xbox, PlayStation and TV: Instead of connecting two long cables to the display, one long cable between the switch box and the TV is sufficient

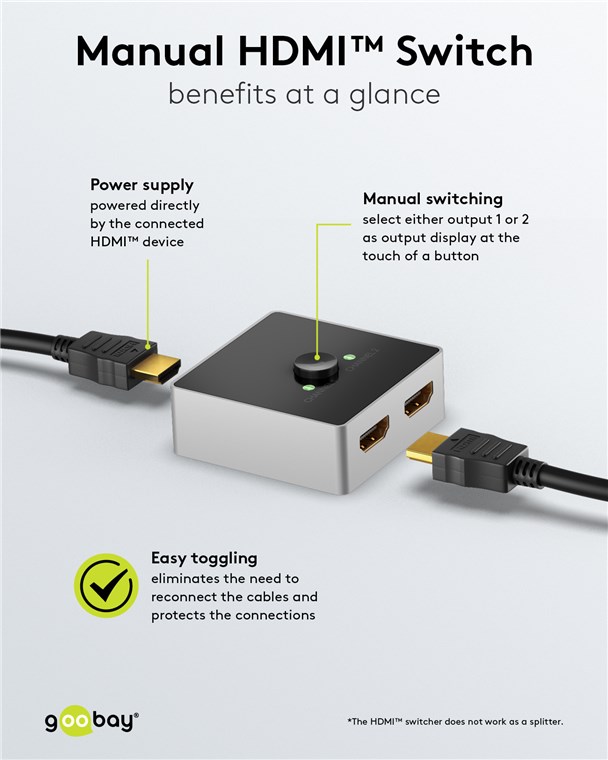

- The HDMI™ switchbox 2x1 is powered via the connected HDMI™ device, not requiring an external power supply
- Note: The HDMI™ switcher does not work as a splitter!
Labelling
| Disclaimer |
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. |

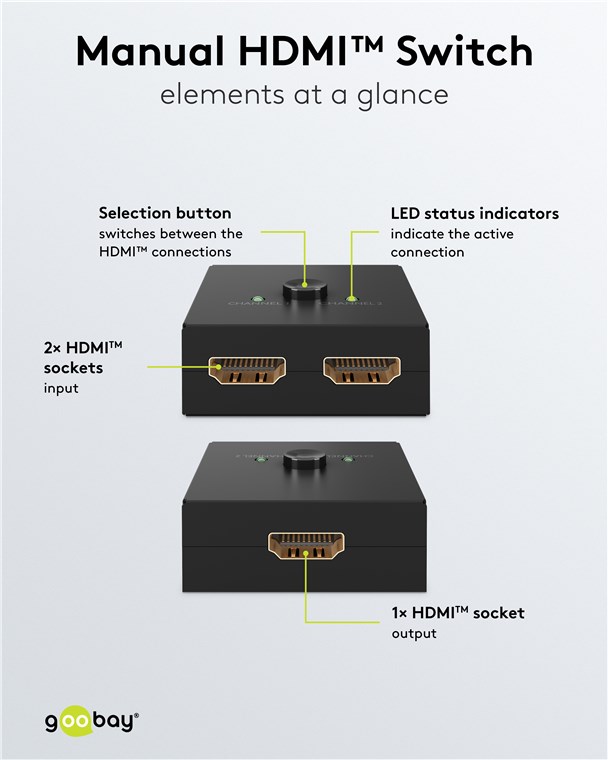

Connections
| Connection, type |
HDMI™ female (Type A) |
| Input, type |

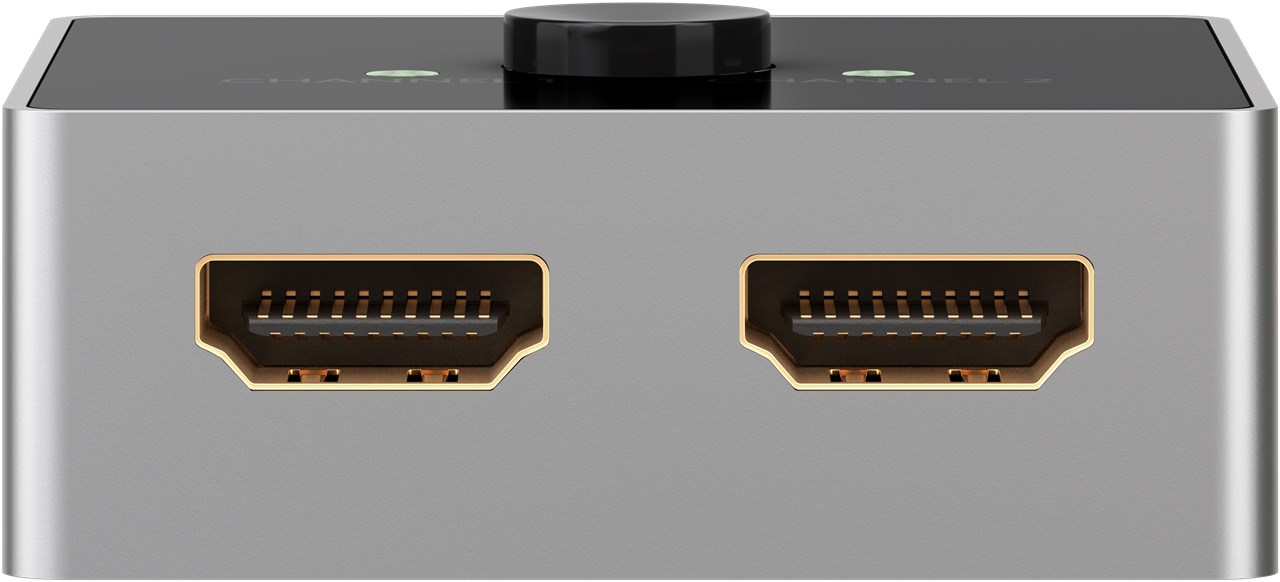

2x HDMI™ female (Type A) |
| Output, type |
HDMI™ female (Type A) |
Signal transmission
| Max. resolution |
4K/60Hz (3840x2160) UHD |
| Supported video standards |
4K/60Hz (3840x2160) UHD, 4K/30Hz (3840x2160) UHD, 1080p (60Hz) Full HD, Full HD 1080i (60Hz), 3D |
| max. transmission rate |
18 Gbit/s |
| Signal direction |
bidirectional |
| supported audio standards |
Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC) |
| other supported standards |
HDCP 2.2, HDCP 1.4 |
General
| Goobay Version |
2.0 |
| Color |
black, silver |
| Markings |
CE, WEEE |
| Operating temperature up to |
40 °C |
| Packaging type |
Bulk |

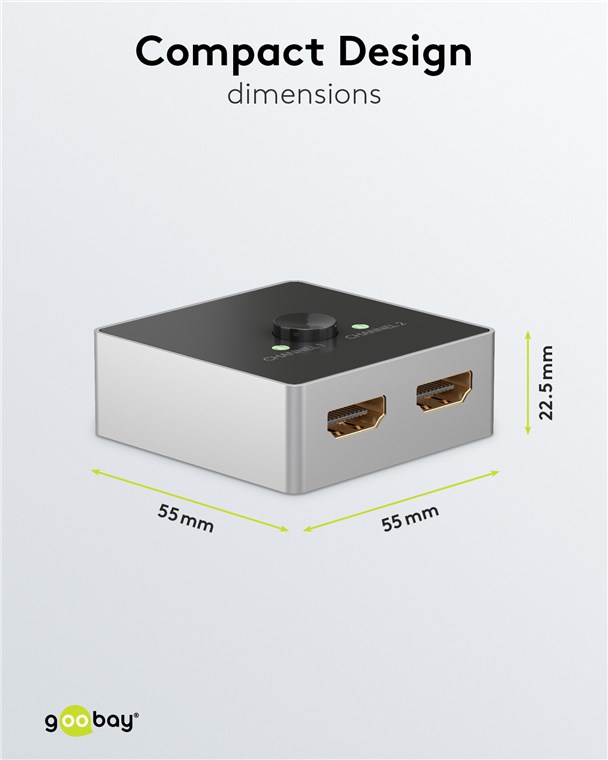

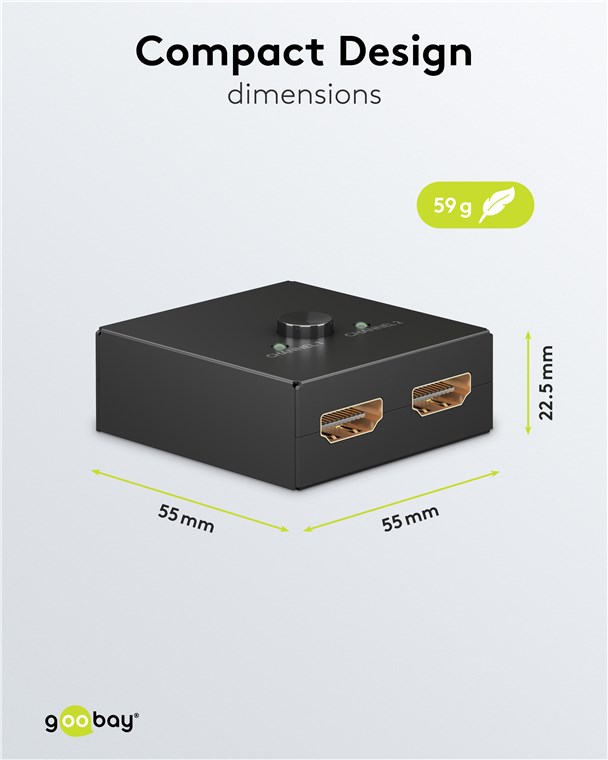

Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
55 mm |
| Width |
55 mm |
| Height |
22.5 mm |
| Weight |
59 g |
