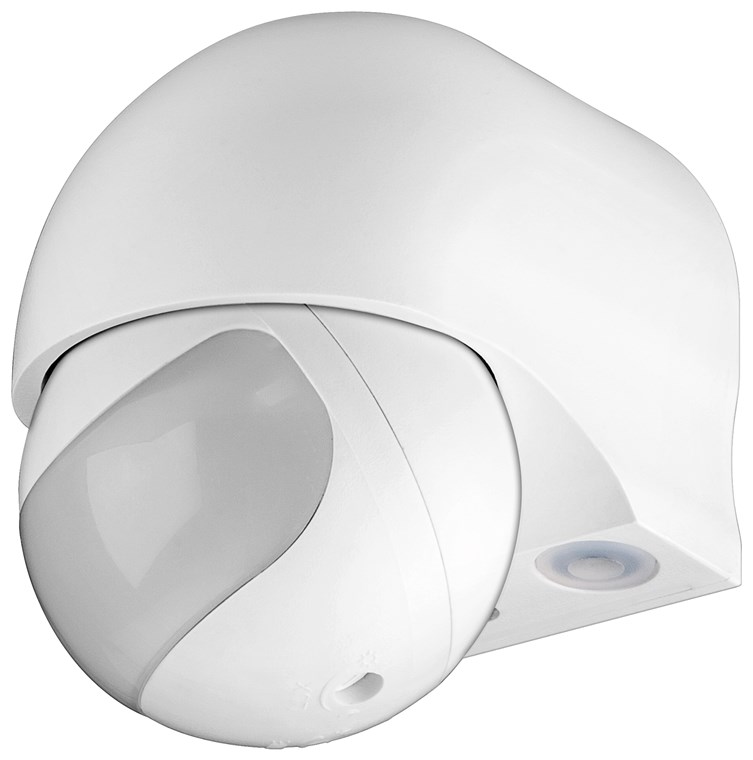

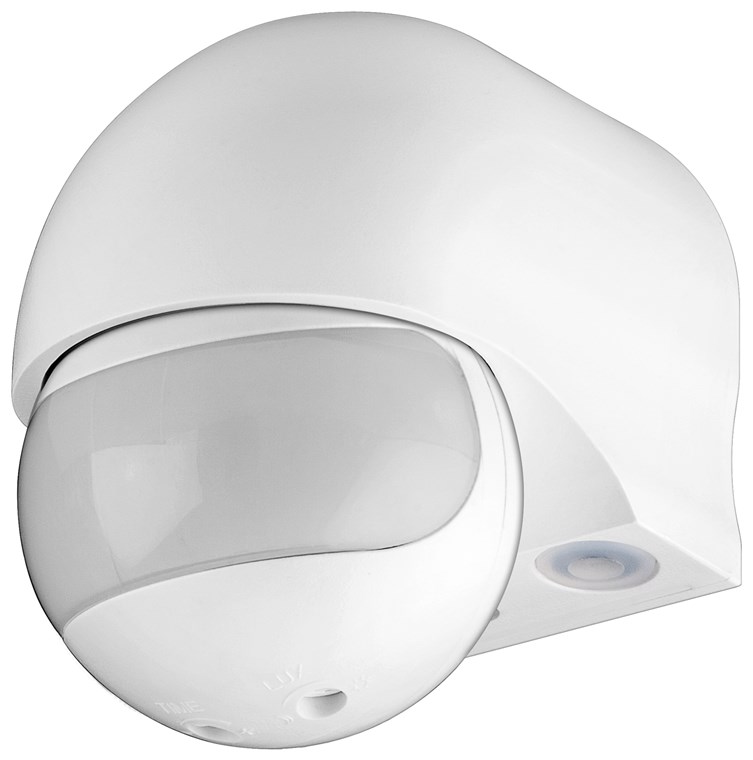

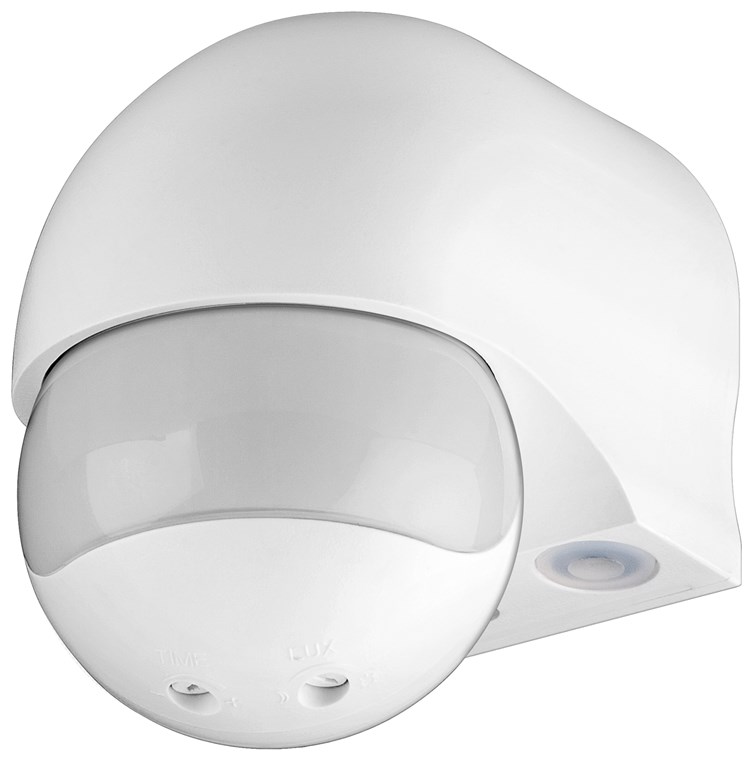

Infrared Motion Detector

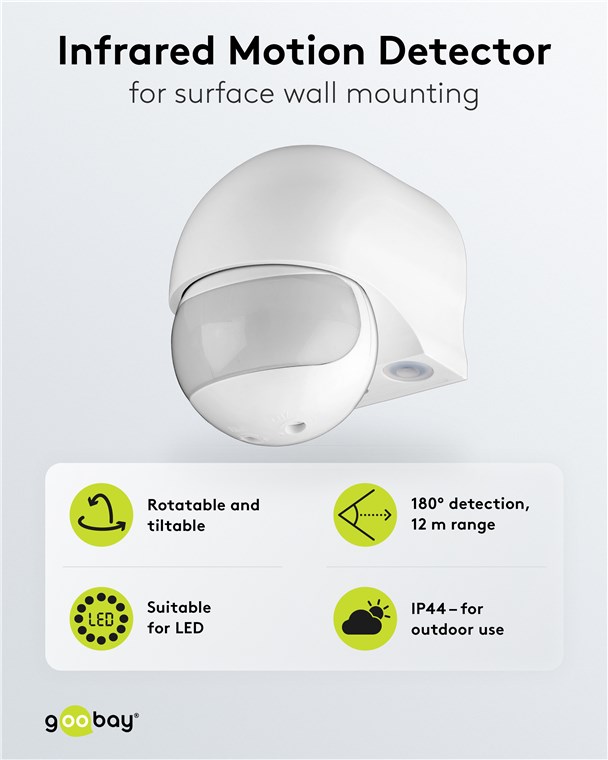

for surface wall mounting, 180° detection, 12 m range, for outdoor use (IP44), suitable for LEDs
Always feel safe and sound: The motion detector from Goobay is perfect for outdoor areas such as gardens, carports or house entrances. In combination with lighting, it increases the feeling of security and deters unauthorised persons from private property in the dark.
- The PIR sensor reacts to the movement and noises of people or animals and activates the connected lighting when it is dark
- Replaces the light switch and switches without contact: Practical for monitoring outdoor areas such as carports, house entrances, driveways or gardens

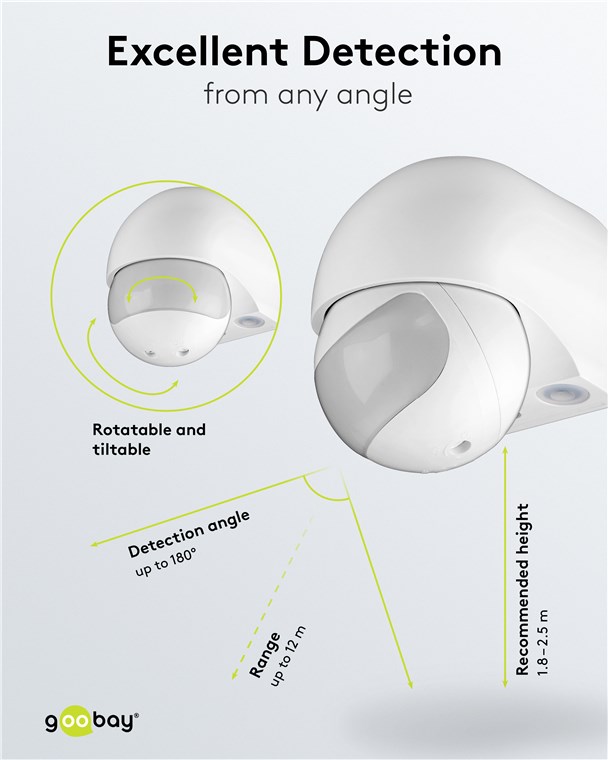

- Flexible adjustment: The infrared sensor rotates and tilts for an optimised alignment

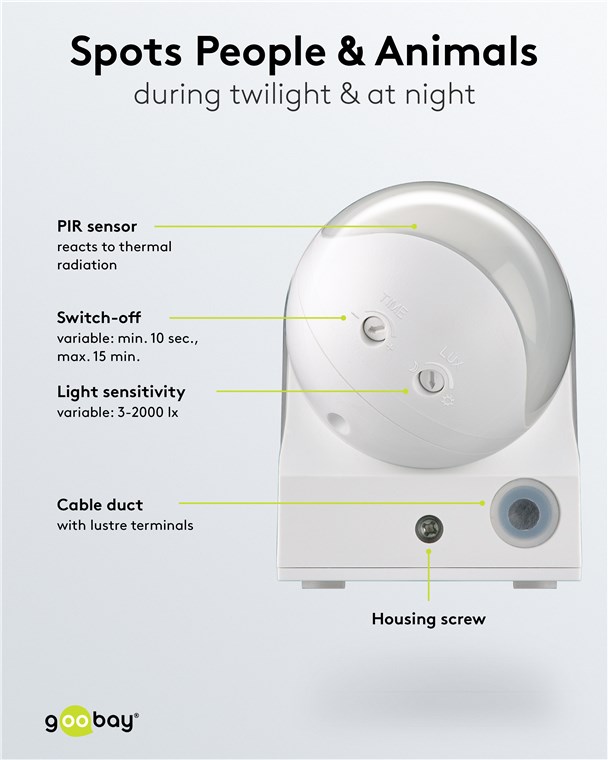

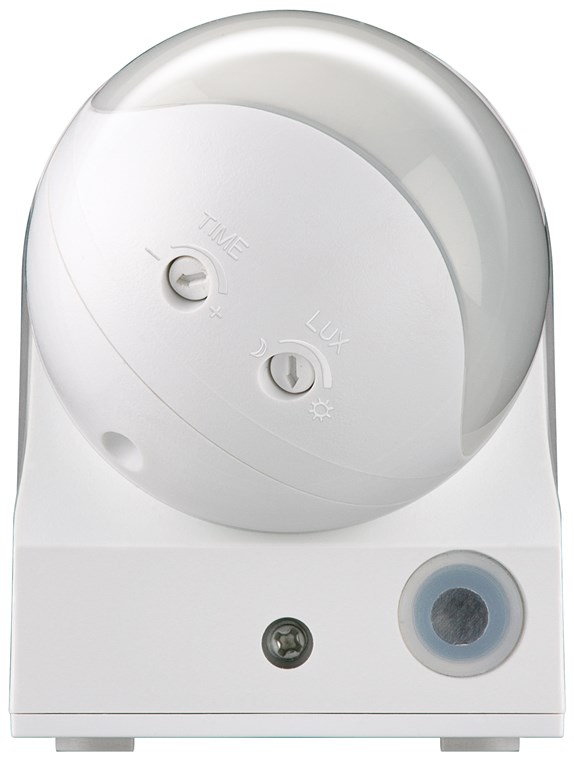

- Light sensitivity (3 lx to 2000 lx) and switch-off delay (10 s to 15 min) are easily adjustable using the rotary control on the underside

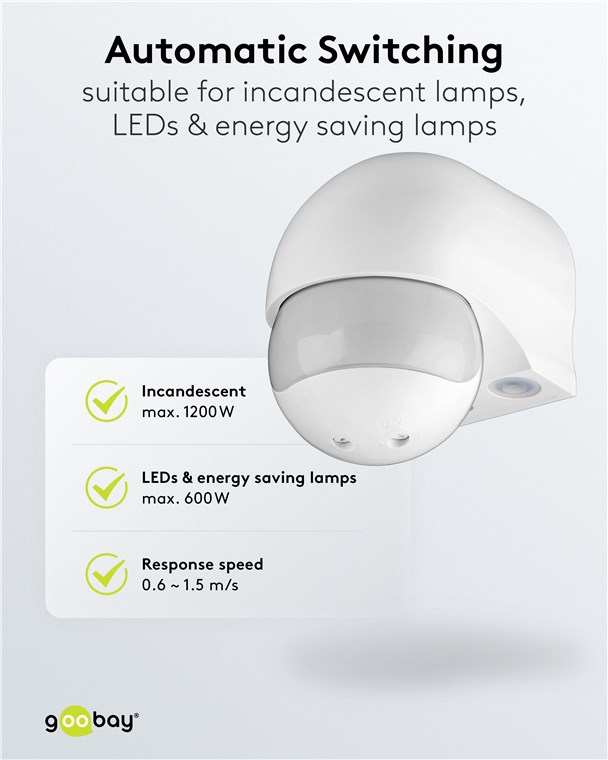

- Suitable for connecting LED lighting and energy-saving lamps up to 600 W and incandescent lamps up to 1200 W
- Ideal for surface-mounted wall installation (mounting material included), installation height: 1.80 m to 2.5 m
- Splash-proof according to protection class IP44 and therefore also suitable for outdoor use and in damp rooms
Connections
| Connection, type |
Screw clamp |
Performance
| sensor type |
passive infrared (PIR) |
| switching power (LED/energy-saving lamp) |
600 W |
| switching power (Incandescent/halogen lamp) |
1200 W |
| Light sensitivity from |
3 lx |
| light sensitivity up to |
2000 lx |
| light sensitivity adjustable |
3 - 2000 lx |
| switch-off delay from |
10 s |
| switch-off delay to |
900 s |
| switch-off delay adjustable |
10 - 900 s |
| operating voltage |
230 V (AC) |
| Installation height from |
1.8 m |
| Installation Height up to |
2.5 m |
| recommended installation height |
1.8 - 2.5 m |
| max. detection range |
12 m |
| max view angle |
180 ° |
General
| Color |
white |
| Markings |
WEEE, CE |
| protection class |
IP44 |
| Packaging type |
Retail Box |

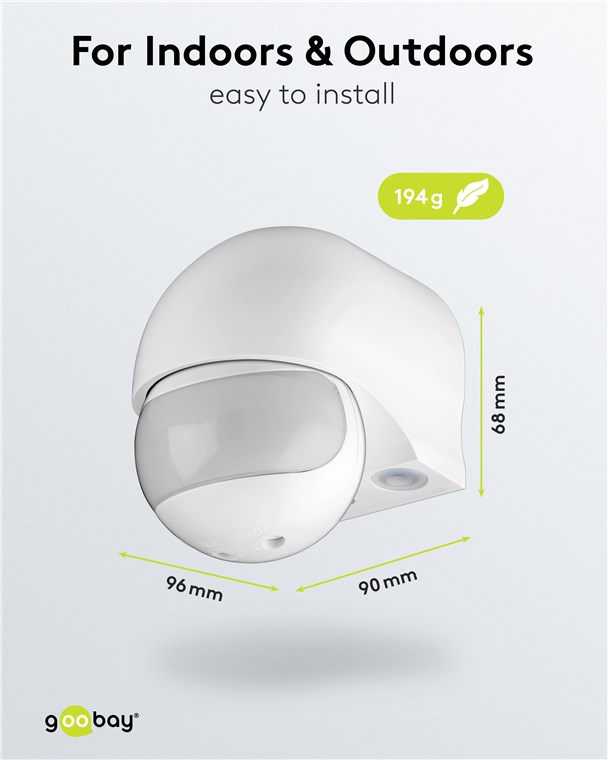

Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Width |
62.8 mm |
| Height |
92 mm |
| depth |
83.2 mm |
| Weight |
152 g |
Language Scope
| packaging |
de, en, fr, it, es, nl, da, sv, cs, pl |
