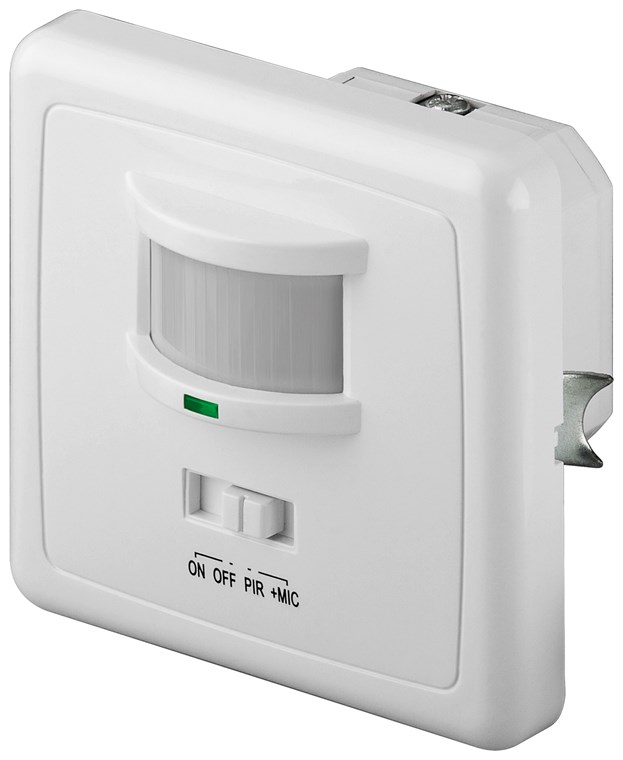

Infrared/Acoustic Motion Detector
for flush wall mounting, 160° detection, 9 m range, suitable for indoors (IP20)
Never left in the dark again: The motion detector from Goobay prevents tripping hazards at dusk and in the dark, giving you a feeling of safety even at night. Perfect for corridors, bathrooms or hallways – the motion detector always reliably activates the connected lighting.
- The PIR sensor reacts to the movement and noises of people or animals and activates the connected lighting when it is dark
- Replaces the light switch and switches without contact: Particularly practical in rooms that you enter with your hands full, e.g. hallways or utility rooms
- The switch with 4 modes (on, off, PIR and +Mic) can be used either as a motion detector or as a regular light switch
- Microphone sensitivity (30-90 dB), light sensitivity (3 lx to 2000 lx) and switch-off delay (10 s to 7 min) are easily adjustable behind the cover using a rotary control
- Suitable for connecting energy-saving lamps and incandescent lamps from 40 W to 500 W
- Ideal for horizontal and vertical installation in flush-mounted or cavity wall boxes, installation height: 1.00-1.80 m
- With protection class IP20, intended for indoor use only
Connections
| Connection, type |
Screw clamp |
Performance
| switching power (LED/energy-saving lamp) |
500 W |
| light sensitivity adjustable |
3 - 2000 lx |
| sensor type |
passive infrared (PIR) |
| operating voltage |
230 V (AC) |
| switch-off delay adjustable |
10 - 420 s |
| switch-off delay from |
10 s |
| switch-off delay to |
420 s |
| max view angle |
160 ° |
| Installation height from |
1 m |
| Installation Height up to |
1.8 m |
| max. detection range |
9 m |
| Light sensitivity from |
3 lx |
| light sensitivity up to |
2000 lx |
| recommended installation height |
1 - 1.8 m |
General
| protection class |
IP20 |
| Color |
white |
| Markings |
CE, WEEE, Haus |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
40 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
85 mm |
| Width |
85 mm |
| Height |
60 mm |
| Weight |
109 g |
