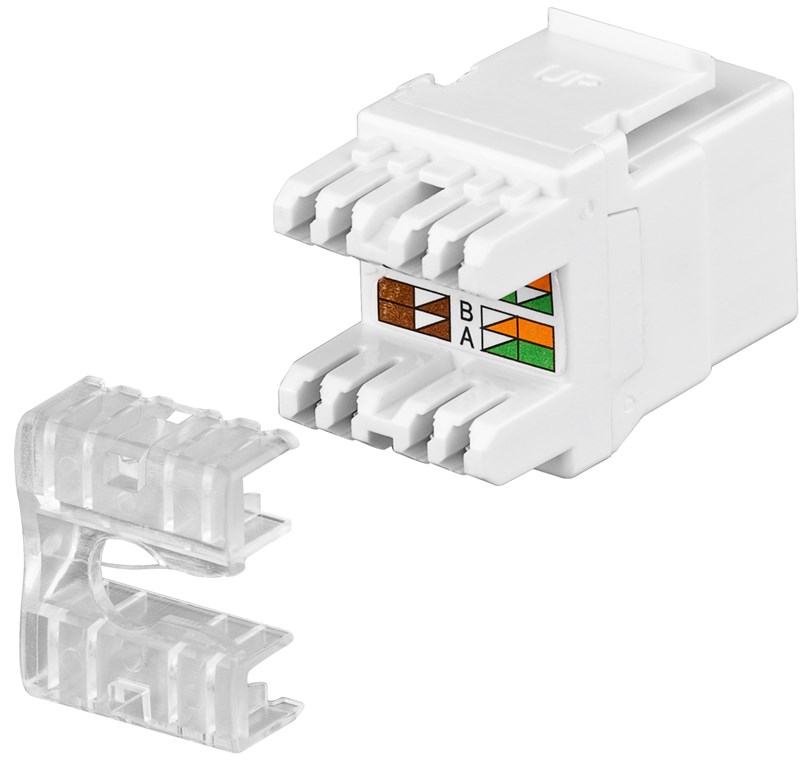

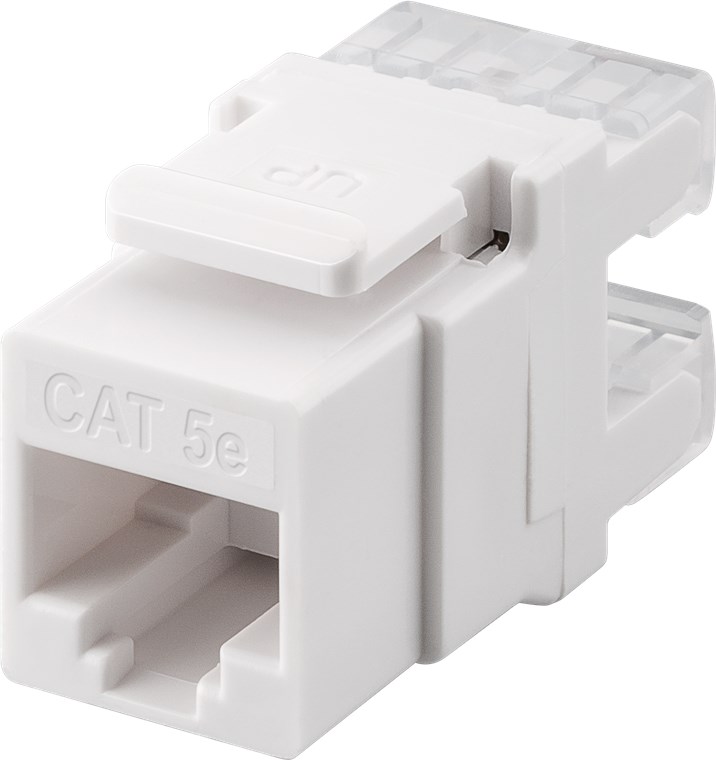

Keystone Module RJ45 CAT 5e, UTP, 100 MHz
20 mm wide, for IDC connection (toolless)
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- RJ45 female connector with robust plastic housing (PC) for a perfect transmission of electrical signals
- Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
- Commonly used in network installations and for the assembly of permanently installed network cables
- CAT 5e jack socket with 3µ gold-plated contacts for an ideal transmission speed
- RJ45 connections are TIA 568A/B colour-coded.
| AWG |
22-26 |
| For cable diameter from |
5.0 - 7.0 mm |
| TIA-568 A/B pinout |
TIA-568 A/B |
| PoE and PoE Plus according to IEEE802.3af/at |
yes |
Connections
| Connection, type |
RJ45 female (8P8C) |
| Connection 2, type |
for IDC connection (toolless) |
| construction form |
Keystone grid (14,9 x 17,0 mm) |
Cable
| Specification |
CAT 5e |
| Shielding class |
UTP |
| AWG |
22 - 26 |
| Cable type |
for solid wire |
Signal transmission
General
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
| Width |
20 mm |
