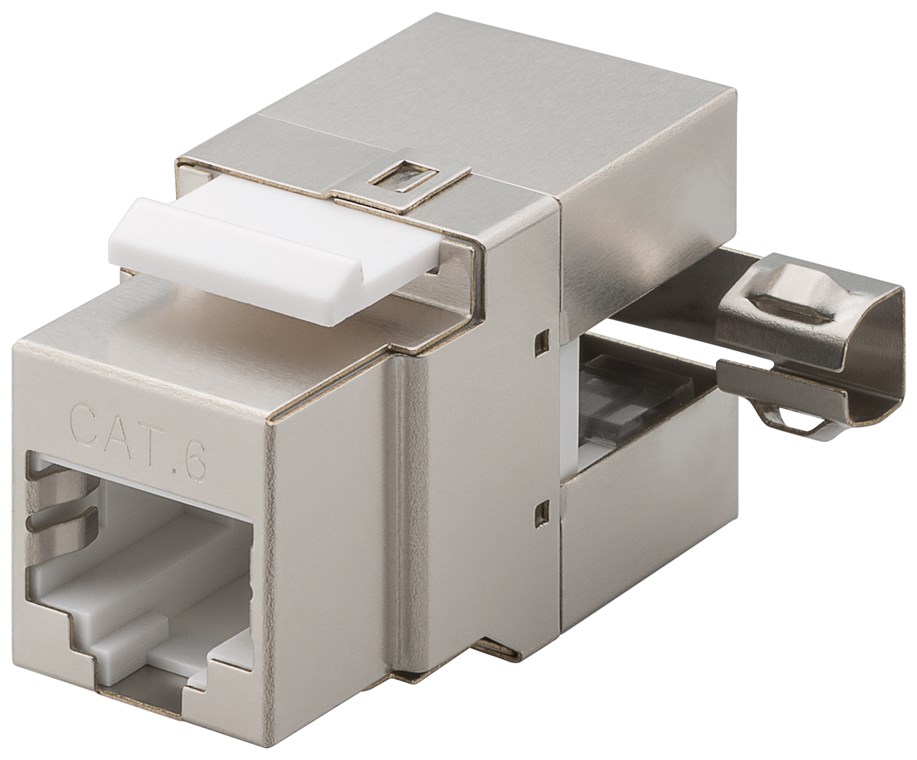

Keystone Module RJ45 CAT 6, STP, 250 MHz

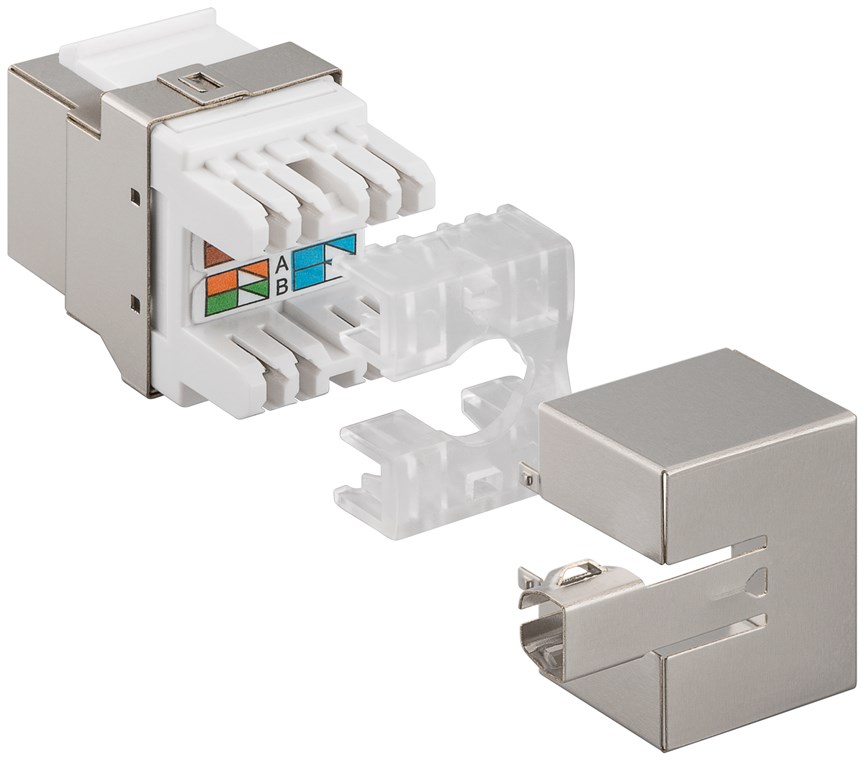

17.4 mm wide, for IDC connection (toolless), 90° angled output
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- RJ45 female connector with robust metal housing for a perfect transmission of electrical signals
- Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
- LAN jack socket with STP shield for interference-free signal transmission
- Commonly used in network installations and for the assembly of permanently installed network cables
- RJ45 jack for installation in Keystone patch panels with 24 ports and Ethernet wall sockets
- RJ45 jack socket for termination with CAT 6 cables
- RJ45 connections are TIA 568A/B colour-coded
| AWG |
solid wire 22-26AWG |
| For cable diameter from |
5.00 -9.00 mm |
| TIA-568 A/B pinout |
TIA-568 A/B |
| PoE and PoE Plus according to IEEE802.3af/at |
Yes |
Connections
| Connection, type |
RJ45 female (8P8C) |
| Connection 2, type |
for IDC connection (toolless) |
| construction form |
Keystone grid (14,9 x 17,0 mm) |
Cable
| Specification |
CAT 6 |
| Shielding class |
STP |
| AWG |
22 - 26 |
| Cable type |
for solid wire |
Signal transmission
General
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
| Width |
17.4 mm |
