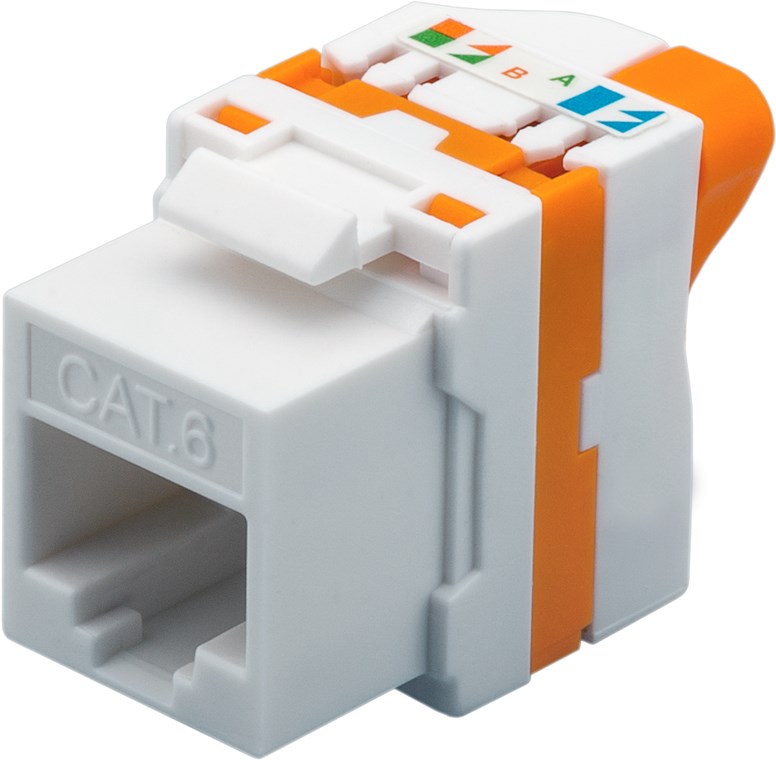

Keystone Module RJ45 CAT 6, UTP, 250 MHz

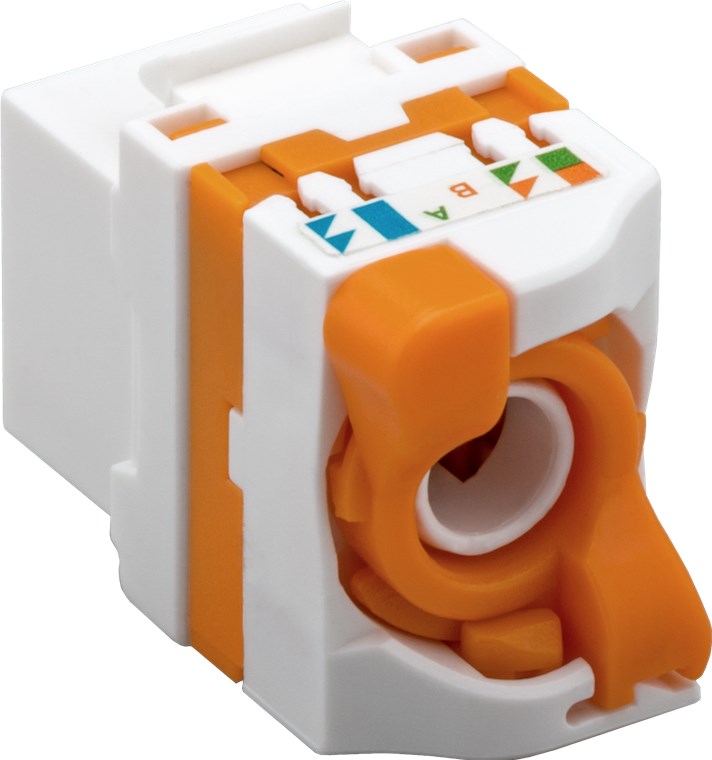

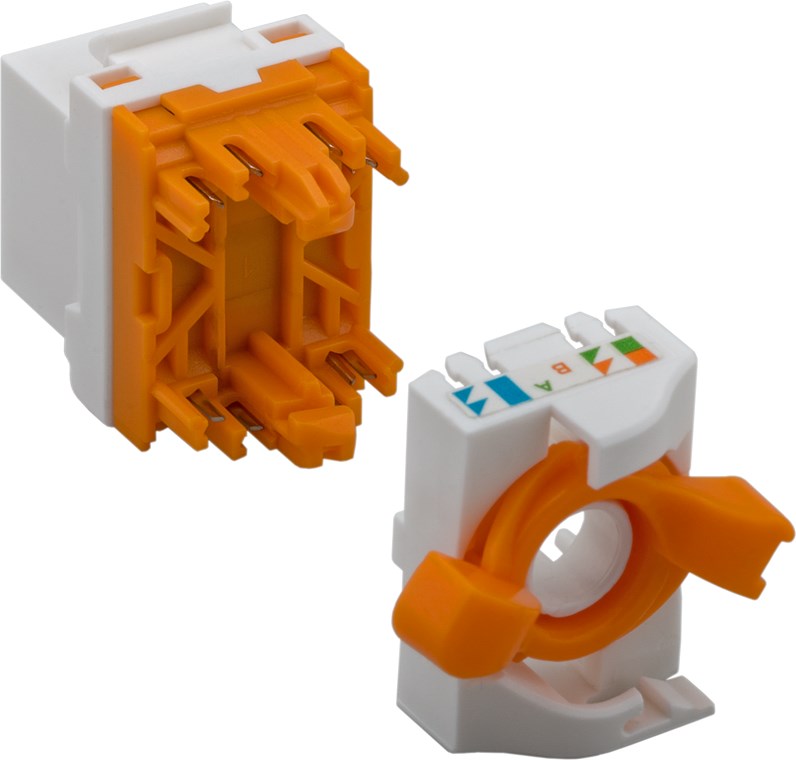

16.6 mm wide, for IDC connection (toolless), with rotary lock
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- RJ45 jack socket with robust plastic housing (PC) for a perfect transmission of electrical signals
- Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
- Commonly used in network installations and for the assembly of permanently installed network cables

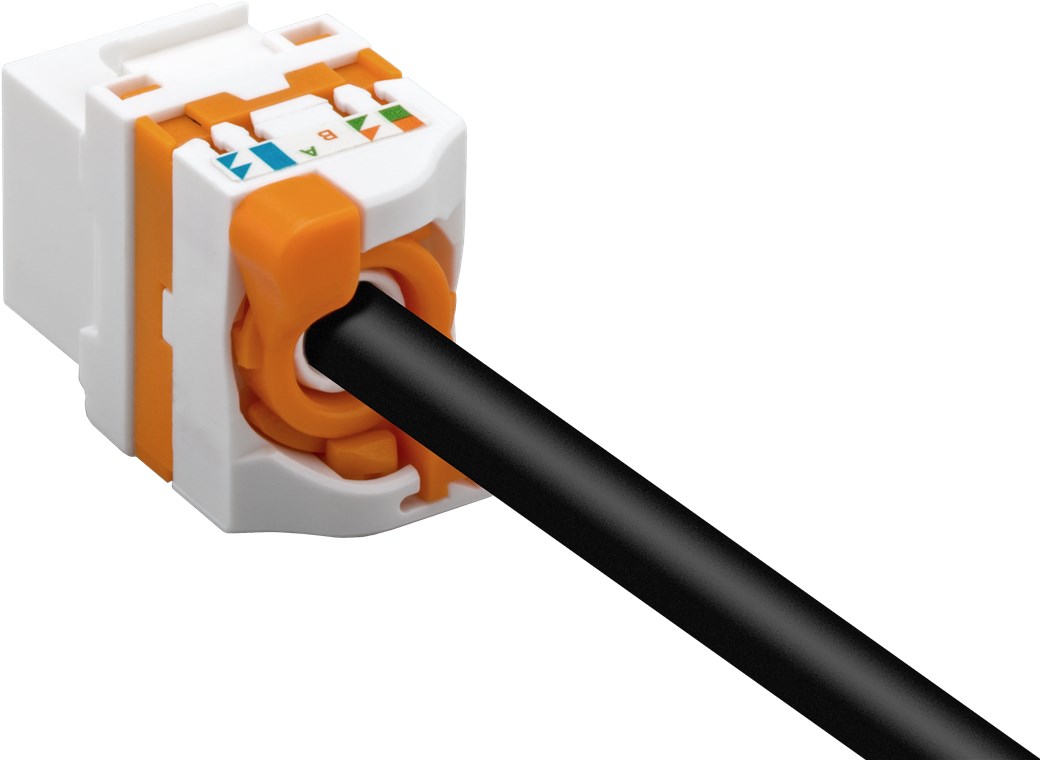

- Ethernet connector is only suitable for round cables with a cable diameter of 5.0 - 9.0 mm (AWG 22 - AWG 26)
- CAT 6 jack socket with phosphorous-bronze contacts
- RJ45 connections are TIA 568A/B colour-coded
Connections
| Connection, type |
RJ45 female (8P8C) |
| construction form |
Keystone grid (14,9 x 17,0 mm) |
| Connection 2, type |
for IDC connection (toolless) |
Cable
| Specification |
CAT 6 |
| Shielding class |
UTP |
| AWG |
22 - 26 |
Signal transmission
General
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
| Width |
16.6 mm |
