Product and packaging similar. Subject to modifications and errors.

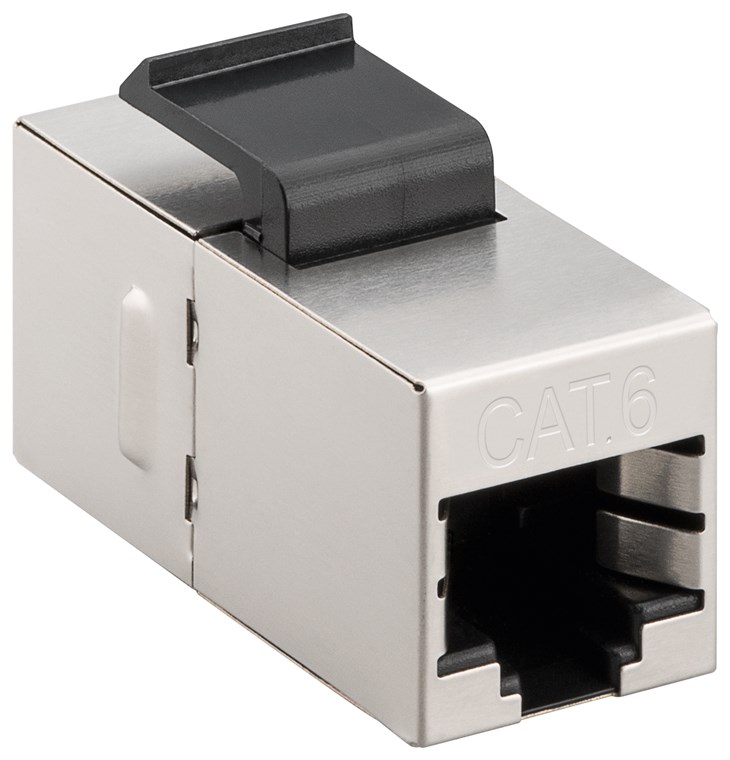

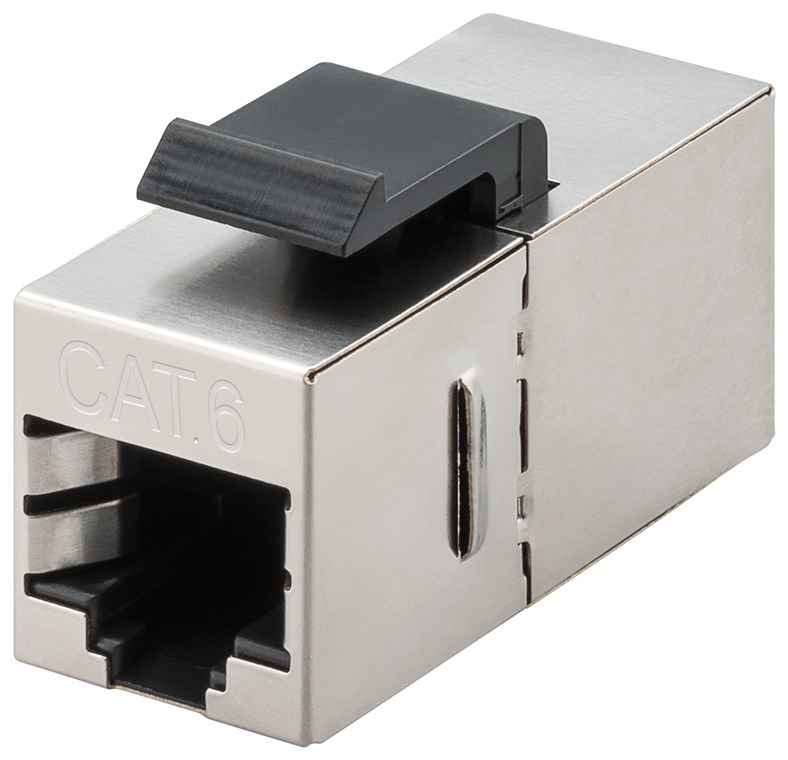

Keystone Module RJ45 Coupler CAT 6, STP
15.9 mm wide, 2x RJ45 female (8P8C)
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- RJ45 coupling for extending and connecting 2x network cables with RJ45 plugs
- RJ45 jack socket for easy snap-in mounting in Keystone patch panels with 24 ports, surface-mount box and Ethernet wall sockets
- Suitable for Keystone ports of 19.2 x 14.9 mm
- Ethernet coupler with robust metal housing and shielding for a perfect transmission of electrical signals
- Commonly used in network installations and for the assembly of permanently installed network cables
- RJ45 jack sockets are suitable for PoE+ according to IEEE 802.3at.
- CAT 6 jack socket with 3µ gold-plated contacts and 1:1 pin assignment
Technical specifications
Connections
| construction form | Keystone grid (14,9 x 17,0 mm) |
| Connection, type | 2x RJ45 female (8P8C) |
Cable
| Specification | CAT 6 |
| Shielding class | STP |
Signal transmission
| max. bandwidth | 250 MHz |
General
| Markings | WEEE, CE |
| Packaging type | Bulk |
Dimensions / Weight
| Consumption Unit | 1 pc. in polybag |
| Width | 15.9 mm |
£5.99 RRP
Packing units:
1 / 50 / 500
