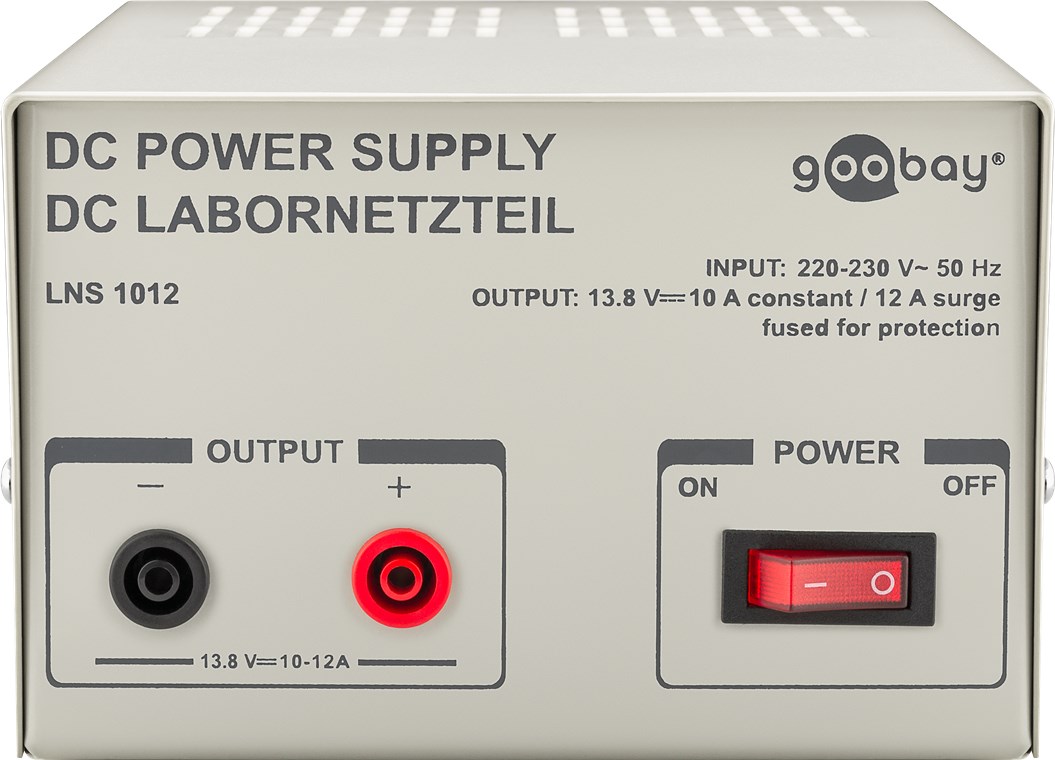

Laboratory fixed voltage power supply
with 10 A and 13.8 V DC
- with 4 mm safety sockets
- with LED „on“ indicator
- switching mode power supply unit
Performance
| max. performance |
138 W |
| Residual ripple |
120 mVeff |
Device connections
| Input Voltage |
230 V (AC) |
| Output, voltage (DC) |
13.8 V (DC) |
| Output, max. amperage |
10 A |
General
| Color |
grey |
| Markings |
CE, WEEE, EUP, Haus |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
195 mm |
| Width |
145 mm |
| Height |
95 mm |
| Weight |
1700 g |
