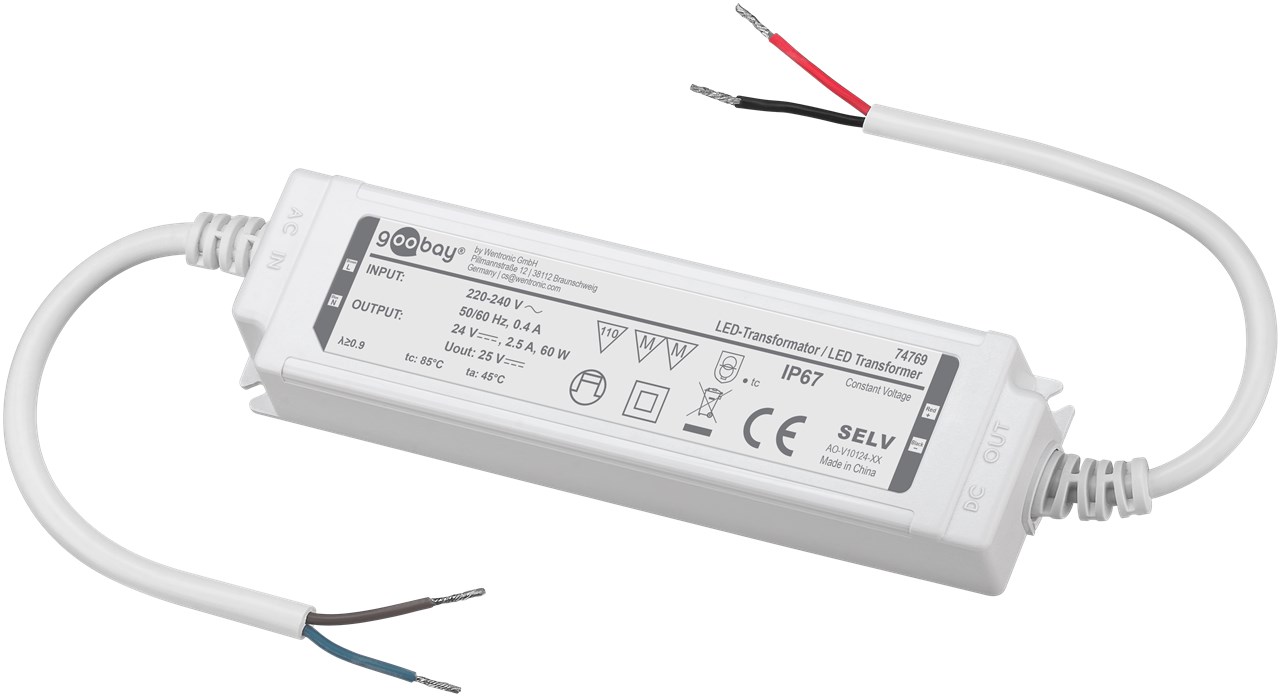

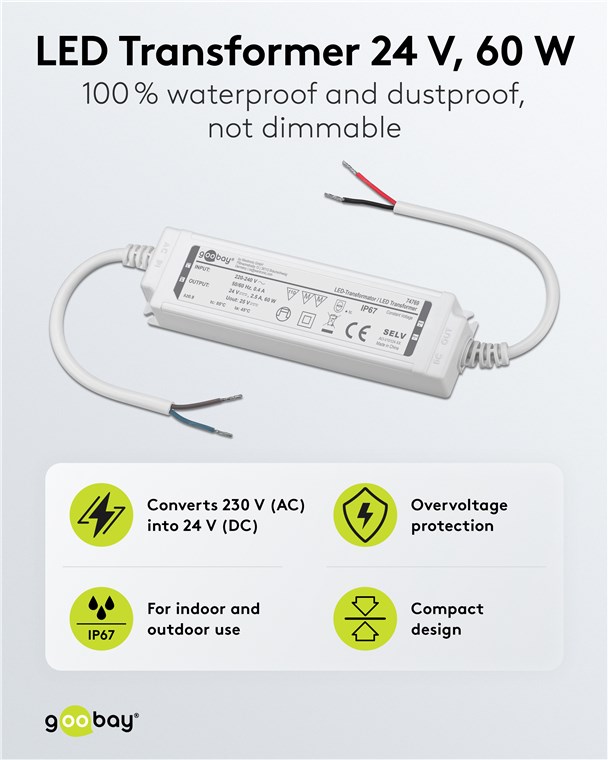

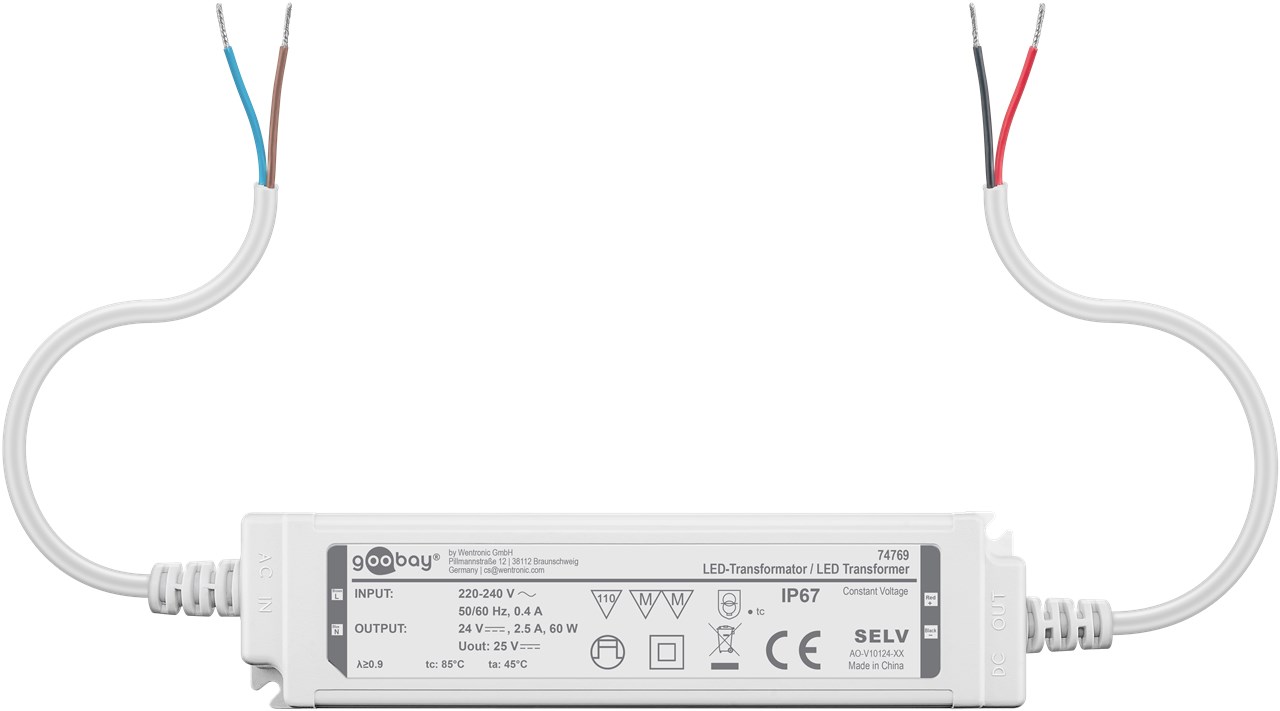

LED Transformer 24 V (DC) (DC), 60 W, IP67
constant voltage transformer (CV) for outdoor use, not dimmable
Ideal for lighting setups in damp rooms and in outdoor areas, e.g. bathroom and garden lighting as well as pond or pool lighting. The transformer supplies LEDs with constant voltage (CV), offering a high degree of flexibility, e.g. when connecting different lengths of LED strips. The perfect solution for LED modules with fixed voltage and their own series resistor.
- Robust LED transformer without minimum load for connecting lamps such as G4 or GU-5.3 LED spots, LED strips and LED modules to the 220-240 V (AC) power grid

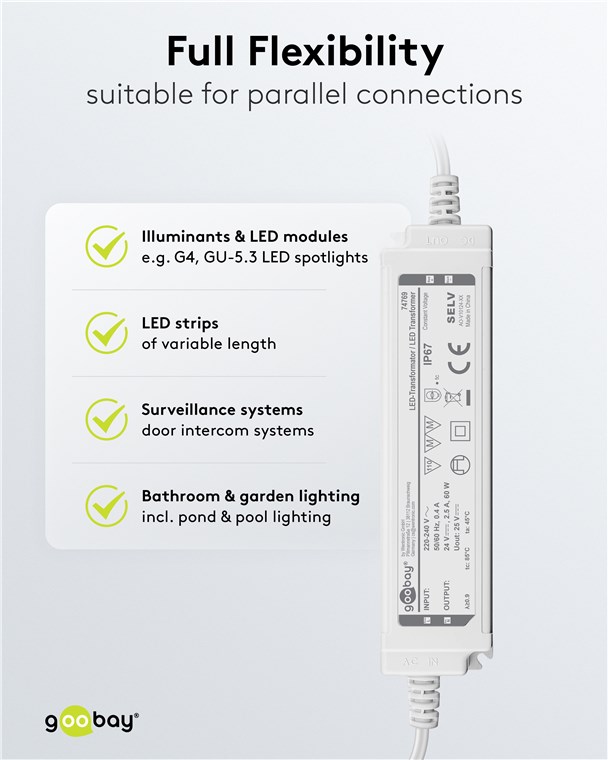

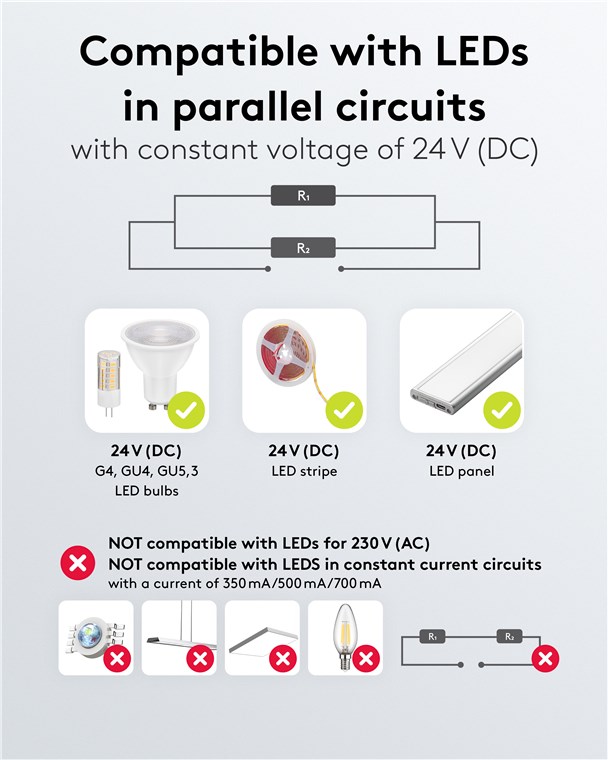

- The constant voltage of 24 V (DC) allows for the flexible addition and removal of individual LEDs in parallel circuits and variable lengths of LED strips
- With an IP67 rating, the LED driver is perfect for outdoor use, e.g. for outdoor lighting, surveillance systems, humid rooms such as bathrooms or kitchens and industrial humid rooms
- Ideal for providing a stable power supply over longer cable distances and for long or high-performance LED strips with a total output of up to 60 W

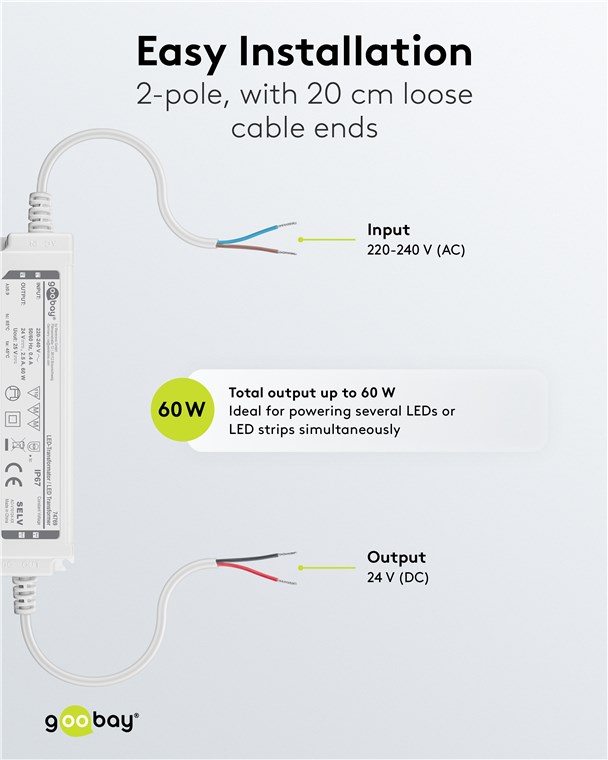

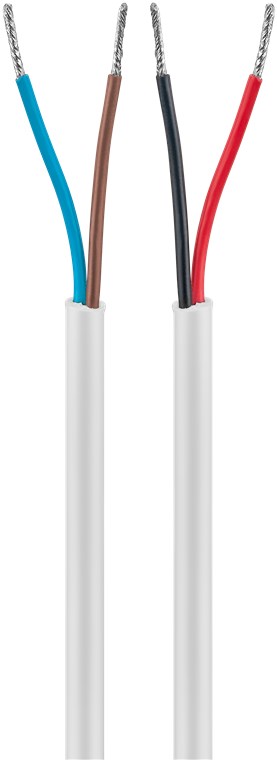

- Input and output of the 24 V LED transformer each with 20 cm loose cable ends (2-pole) for easier installation
- The 24 V LED driver is particularly safe due to overvoltage and short-circuit protection as well as electronic separation according to protection class II

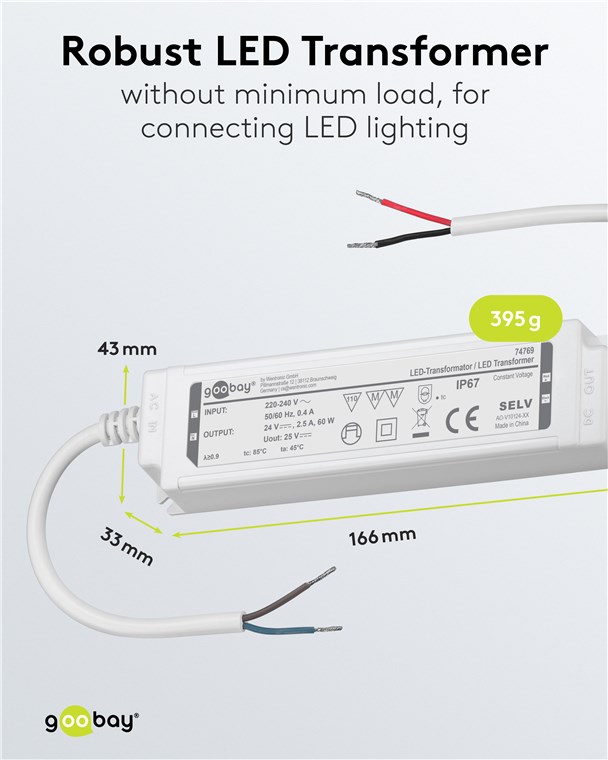

- Dimensions (L x W x H): 166 x 43 x 33 mm, Note: The LED transformer is not dimmable
Connections
| Input, type |
Loose cable ends 2 pin |
| Output, type |
Loose cable ends 2 pin |
ErP
| Average active efficiency |
86 % |
Performance
| max. performance |
60 W |
| No-load power consumption |
0.5 W |
| Power consumption |
60 W |
| Dimmability |
not dimmable |
Device connections
| Input, Voltage Range |
220 - 240 (AC) V |
| number of inputs |
1 |
| Input Cross Section |
0.75 mm² |
| Output, voltage (DC) |
24 V (DC) |
| Output, max. amperage |
2.5 A |
| Output Cross Section |
0.75 mm² |
| Number of outputs |
1 |
| Output, Voltage Range |
22,8 - 25,2 V (DC) V |
General
| protection class |
IP67 |
| Appliance Class |
II |
| Color |
white |
| Markings |
WEEE, CE, SELV, MM |
| Applications |
Damp room, Outdoor |
| Special feature |
Constant voltage (for parallel connection) |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
45 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
166 mm |
| Width |
43 mm |
| Height |
33 mm |
| Weight |
395 g |
accessory - Power supply
| True power factor |
0.9 |
| Power frequency |
50 Hz |
Language Scope
| packaging |
de, en, fr, it, es, nl, da, sv, cs, pl |
£26.99 RRP
Packing units:
1 / 10 / 20
