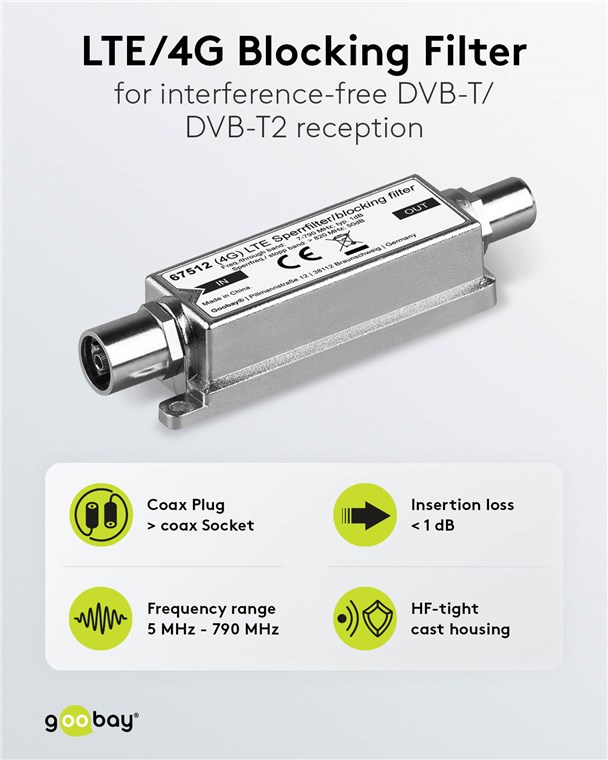

LTE/4G Blocking Filter, Coax Plug to Coax Socket
for interference-free DVB-T / DVB-T2 HD reception
LTE wireless frequencies are frequencies
for mobile Internet, the 4.- generation (4G).
The necessary frequencies are partially superimposed
current DVB-T frequencies and therefore
causes problems.
In some test sites already running trials,
a DVB-T reception is therefore limited.
With the blocking filter can be re-used DVB-T full.

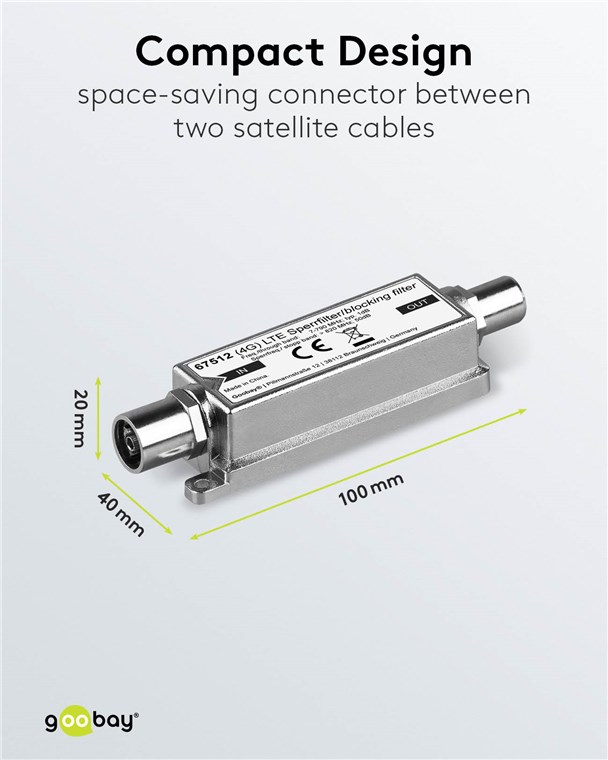

- With F jack sockets for easy connection between two SAT cables

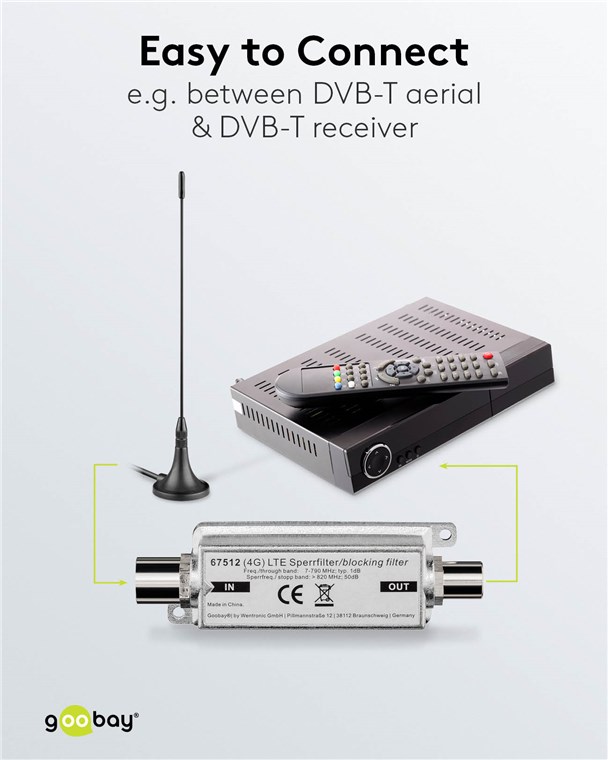

- Can also be used directly between DVB-T receiver and DVB-T antenna

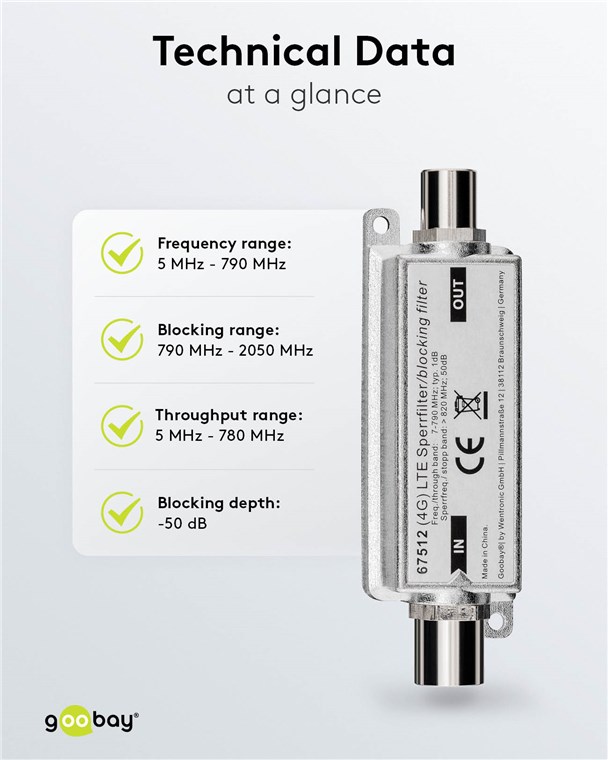

- Frequency range: 5 MHz - 790 MHz, blocking range: 790 MHz - 2050 MHz, passing range: 5 MHz - 780 MHz
- Blocking depth: -50 dB
- Extra low insertion loss: < 1 dB

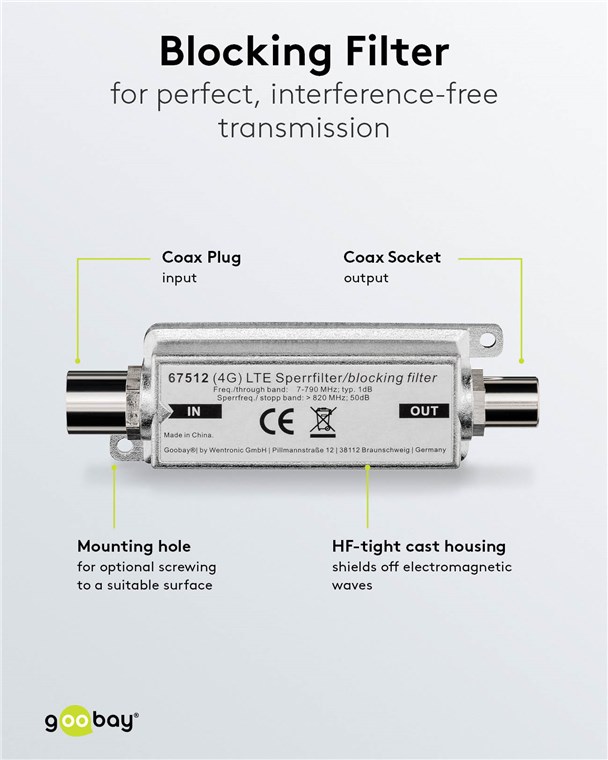

- HF-tight cast housing shields electromagnetic waves and ensures interference-free function.
Technical specifications
Connections
| Connection, type | Coaxial male (plug) |
| Connection 2, type | Coaxial female (socket) |
General
| Markings | WEEE, CE |
| Packaging type | Bulk |
Dimensions / Weight
| Consumption Unit | 1 pc. in polybag |
£12.99 RRP
Packing units:
1 / 50 / 100
