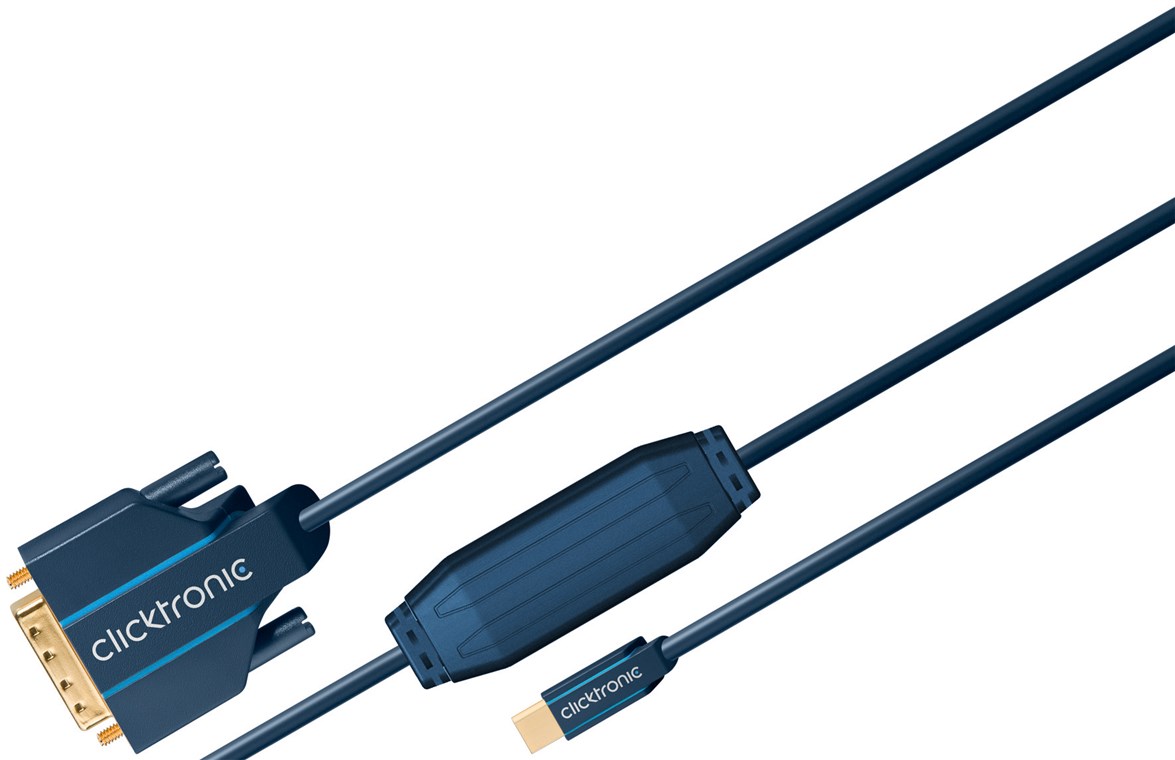

Mini DisplayPort™/DVI adapter cable
Video-Adapter between mini DisplayPort and DVI-D
Mini DisplayPort™/DVI adapter cable
Video-Adapter between mini DisplayPort and DVI-D
Article details
Transfer presentations and photos directly from your notebook, Mac or PC to external monitors and projectors. DisplayPort™ is backwards compatible with DVI and transmits resolutions up to WUXGA with high colour depth and a super smooth refresh rate. To ensure optimal transmission of video and audio signals, please note that the mini DisplayPort™ connector must be connected to the transmitter and the DVI connector to the receiver. This way you are sure that every slide and picture arrives exactly as it was intended.
- suitable for Apple MacBook/Pro/Air and other mobile devices from many other manufacturers
- pure copper conductor and 2-way shielding for clear signal quality
- supports a maximum resolution of up to 1920x1200p
- 24 carat gold-plated contacts for minimum transmission resistance
Technical specifications
Connections
Connection, type
DVI-D male Dual-Link (24+1 pin)
Connection 2, type
Mini DisplayPort male
Kink protection
both sides
Connection, length
51.1 mm
Connection, shielding
yes
Connection, contact material
gold (24 kt)
Connection, housing material
ABS, PVC
Cable
Cable type
round cable
Number of shieldings
2 x
Type 2, shielding
braid (copper) 64x
Inner conductor material
CU (copper)
Material cable sheath
PVC
Cable sheath diameter (approx.)
5 mm
Ferrite core
no
Cable length
1 m
Signal transmission
max. transmission rate
7.92 Gbit/s
Signal amplification
no
Impedance
100 Ω
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Packaging type
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
warranty
Warranty
10 years
Downloads
Item: 70747
EAN: 4040849707476
