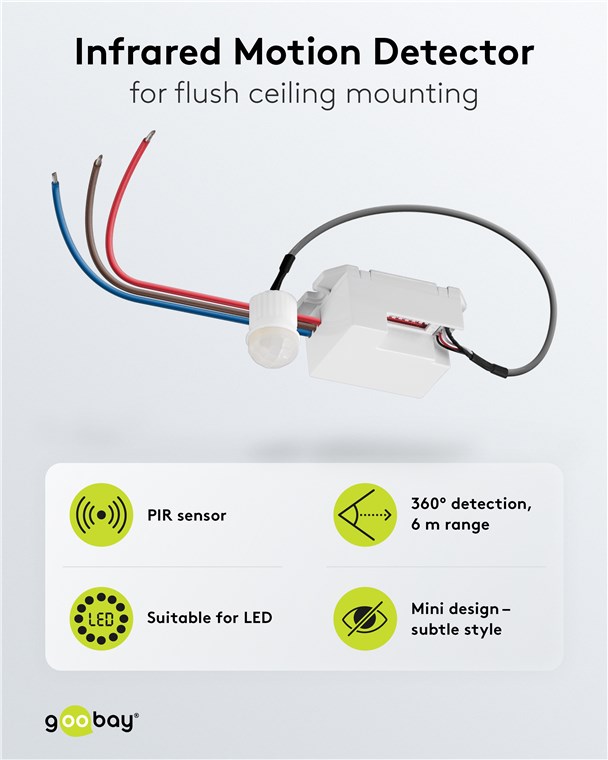

Mini Infrared Motion Detector
for flush ceiling mounting, 360° detection, 6 m range, for indoor use (IP20), suitable for LEDs
Never left in the dark again: The motion detector from Goobay prevents tripping hazards at dusk and in the dark, giving you a feeling of safety even at night. Perfect for corridors, bathrooms or hallways – the motion detector always reliably activates the connected lighting.
- The PIR sensor reacts to the movement and noises of people or animals and activates the connected lighting when it is dark
- Replaces the light switch and switches without contact: Particularly practical in rooms that you enter with your hands full, e.g. hallways or utility rooms

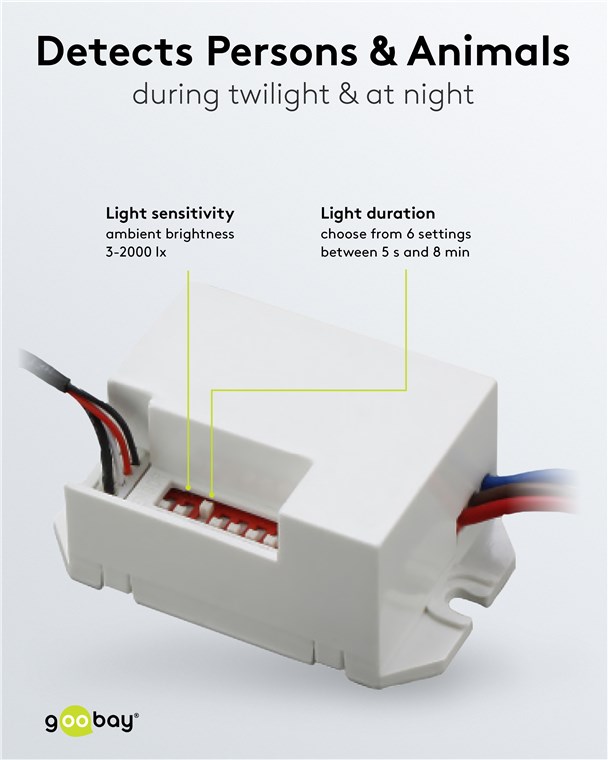

- Light sensitivity (3 lx to 2000 lx) and switch-off delay in 6 stages (5 s to 8 min) are easy to set behind the cover using a DIP switch

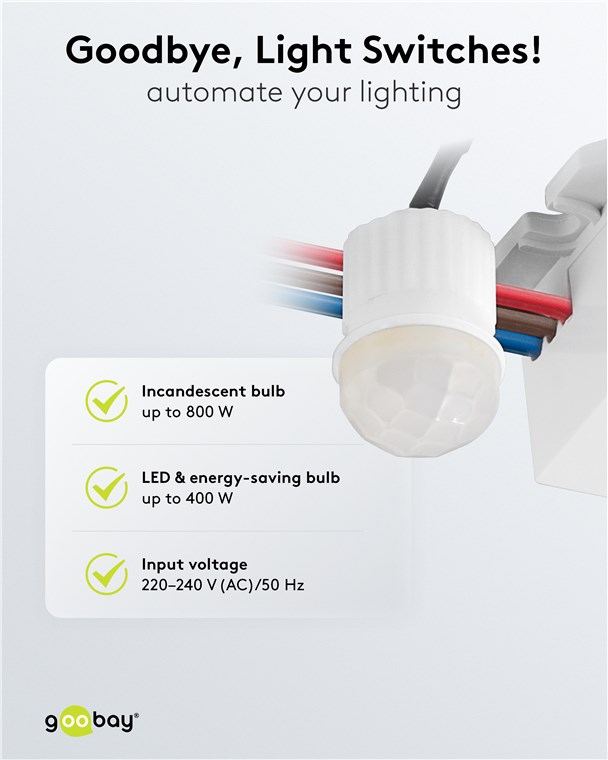

- Suitable for connecting LED lighting and energy-saving lamps up to 400 W as well as incandescent lamps up to 800 W

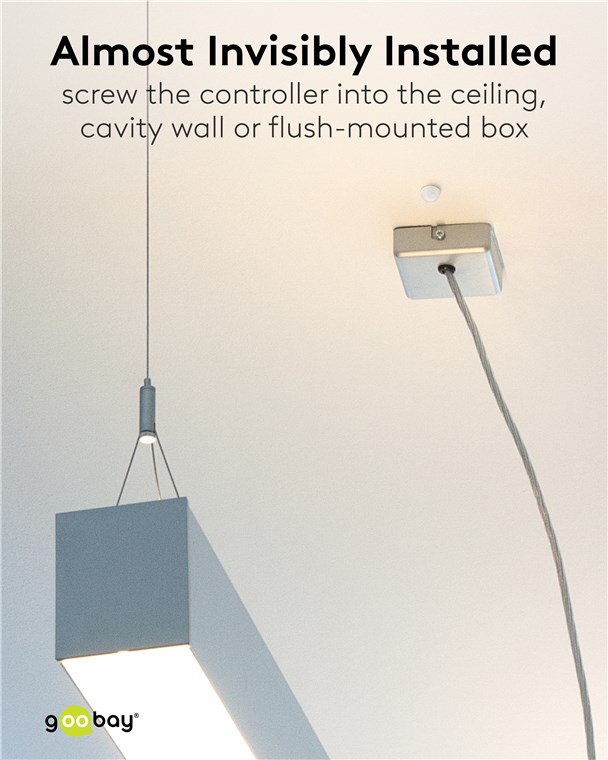

- With loose cable ends and two mounting lugs on the controller unit for easy screw mounting in flush-mounted boxes, in the ceiling or cavity walls

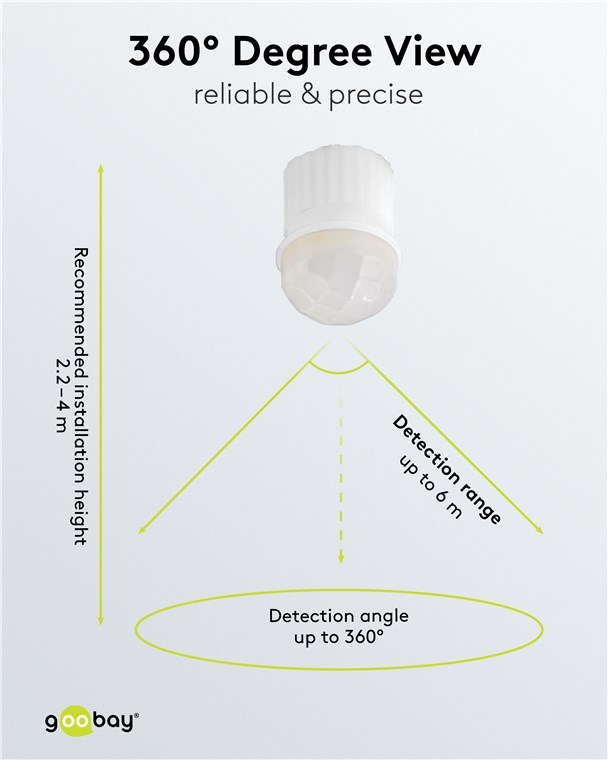

- With a detection angle of 360°, ideal for flush-mounted installation in cavity ceilings, installation height: 2.20 m to 4 m

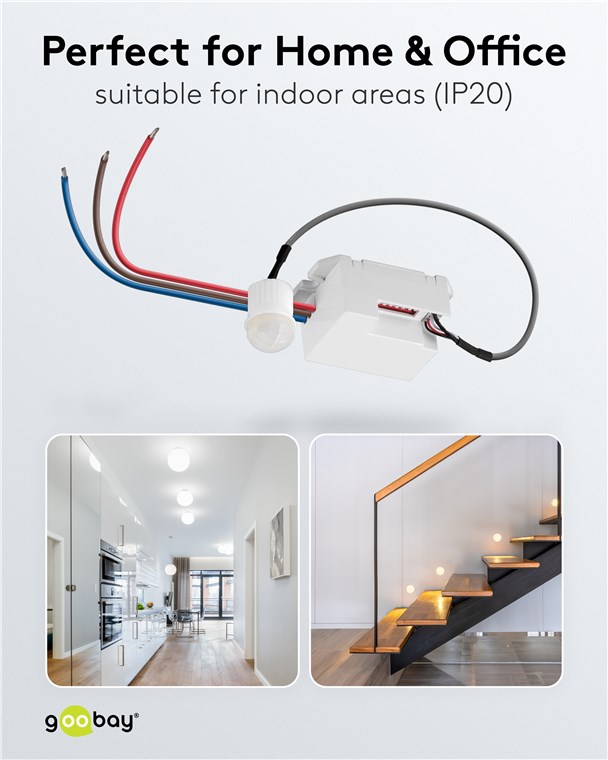

- With protection class IP20, intended for indoor use only
- Switch-off delay (selectable): 5 sec, 30 sec, 60 sec, 180 sec, 300 sec, 480 sec.
- Detection range: 3 m or 6 m
- Max. Power: 800 W (incandescent lamp); 400 W (LED or energy-saving lamp)
- IP65（only for sensor head)
Technical specifications
Connections
| Connection, type | Loose cable ends |
Performance
| switching power (LED/energy-saving lamp) | 400 W |
| switching power (Incandescent/halogen lamp) | 800 W |
| light sensitivity adjustable | 3 - 2000 lx |
| switch-off delay adjustable | 5 - 480 s |
| sensor type | passive infrared (PIR) |
| operating voltage | 230 V (AC) |
| max view angle | 360 ° |
| switch-off delay from | 5 s |
| switch-off delay to | 480 s |
| Installation height from | 2.2 m |
| Installation Height up to | 4 m |
| max. detection range | 6 m |
| recommended installation height | 2.2 - 4 m |
| Light sensitivity from | 3 lx |
| light sensitivity up to | 2000 lx |
General
| protection class | IP65 |
| Color | white |
| Markings | CE, WEEE, Haus |
| Packaging type | Retail Box |

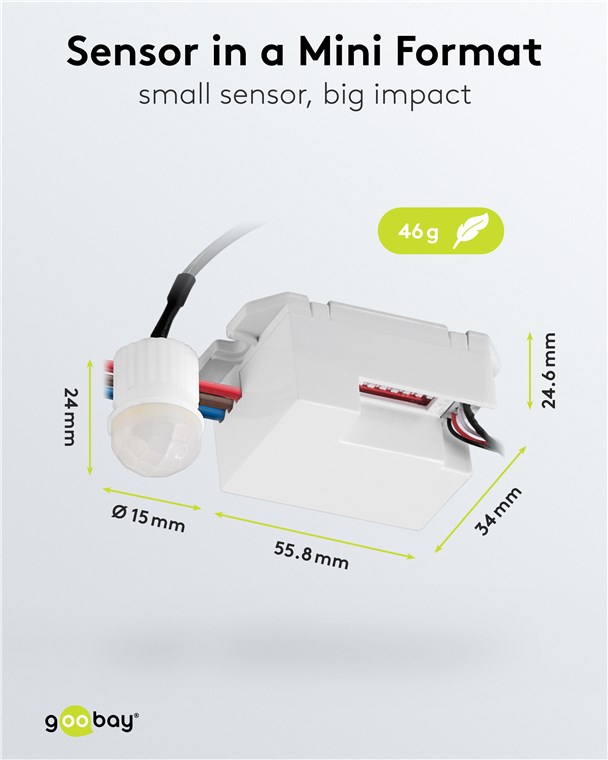

Dimensions / Weight
| Consumption Unit | 1 pc. in cardboard box |
| depth | 24 mm |
| Diameter | 15 mm |
| Weight | 46 g |
Language Scope
| packaging | en, de, fr, it |
£8.99 RRP
Packing units:
1 / 100
