Product and packaging similar. Subject to modifications and errors.

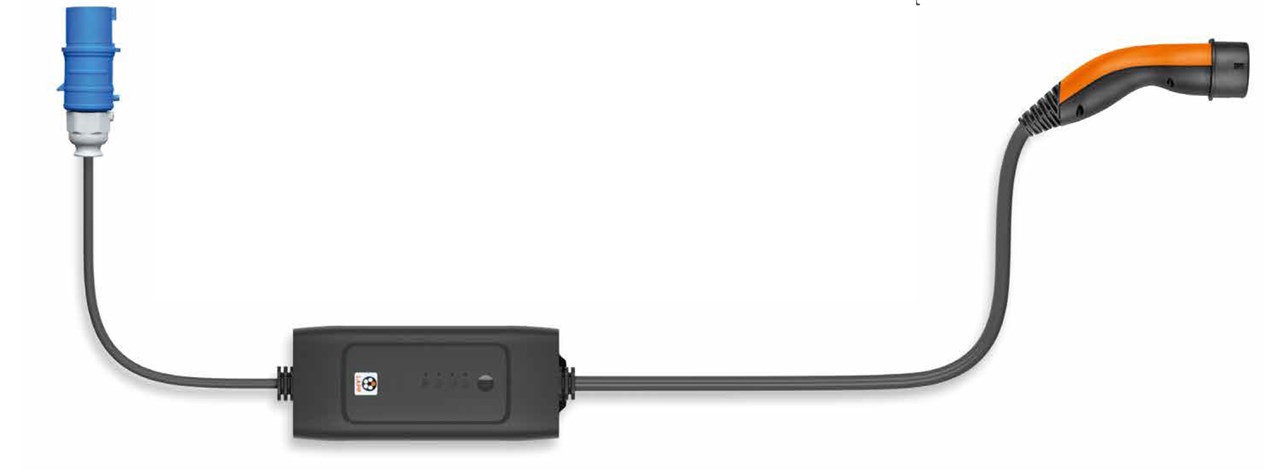

Mobile Charging Station Basic, Type 2, CEE Ideal for Camping Sites, up to 7.4 kW, 6 m
(5555921006) 32 A, 1 phases, for charging hybrid and electric cars with Type 2 connection
Unlimited freedom and electric independence when travelling with a caravan, motorhome or camper van. The charging station charges the electric vehicle reliably via standard camping sockets – simply using a CEE plug. Simply connect the Type 2 coupling of the cable to the car and the plug to the socket. The on-board electronics automatically starts and finishes the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
- Ideal for charging with up to 7.4 kW from 1-phase CEE industrial sockets, e.g. e.g. at the standard sockets for caravans/motorhomes on campsites
- The LAPP Mode 2 charger provides simple, mobile charging via CEE sockets and is ideal in the garage at home, when travelling and when camping
- Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
- Cover caps on the plug and coupling protect against the ingress of dust, dirt and water in between charges
- Oil-resistant EV charging cable at a nominal voltage of 110-400 V (AC) and an operating temperature of -25 °C to 45 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight
- Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
Connections
| Connection 2, type |
CEE plug blue, 3-pole 1ph/32 A |
| Connection, type |
type 2 female plug |
Performance
| Loading capacity up to |
7.4 kW |
| Rated voltage |
400 V (AC) |
| Charging mode |
Mode 2 |
| max current capacity |
32 A |
Cable
| Cable length |
6 m |
| Number of phases |
1 |
| Inner conductor cross-section |
6 mm² |
| Cable type |
smooth cable |
| Material cable sheath |
ÖLFLEX®CHARGE |
General
| protection class |
IP55 |
| Color |
black |
| Operating temperature from |
-25 °C |
| Operating temperature up to |
45 °C |
| Packaging type |
Retail Box |
SCIP
| SCIP no. |
3a4e482d-e540-4f53-809f-2c47435e56ba |
| chemical substance |
Pb, Dechlorane Plus |
| CAS no. |
7439-92-1 | 13560-89-9 |
