Goobay

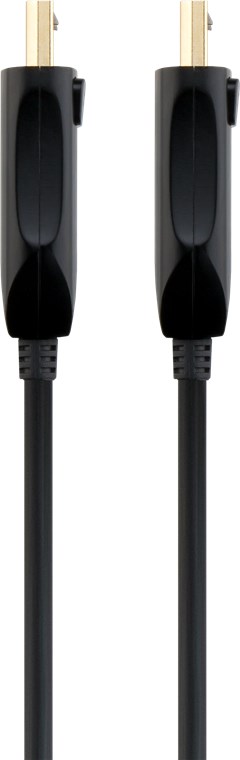

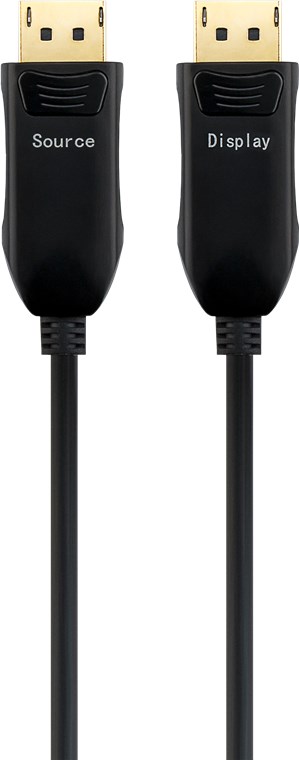

Optical Hybrid DisplayPort™ Connector Cable 1.4, gold-plated
8K/60Hz DSC
/3
Product and packaging similar. Subject to modifications and errors.
Goobay
Optical Hybrid DisplayPort™ Connector Cable 1.4, gold-plated
8K/60Hz DSC
Article details
The optical hybrid DisplayPort™ cable connects devices across long distances without data loss – even in areas with high levels of electromagnetic radiation. Its particularly thin and light construction makes it perfectly suitable for all kinds of installations.
  • converts electrical data signals into optical signals
  • plug with lock for secure connections
  • gold contacts for enhanced signal transmission
  • supports a bandwidth of up to 32.4 Gbps
  • flexible glass fibre for small bending radi (20 mm)
  • supports HDCP 2.2
  • Plug and play: no external power supply required
Technical specifications
Labelling
Disclaimer
all brand names are registered trademarks of their owners.
Connections
Connection, type
DisplayPort™ male
Connection 2, type
DisplayPort™ male
Connection, contact material
gold-plated
Connection, housing material
metal
Cable
type
Optical Hybrid (AOC)
Cable type
round cable
Inner conductor material
Hybrid (fibre optic + metal cable conductor)
Cable length
10 m
Signal transmission
max. transmission rate
32.4 Gbit/s
Max. resolution
8K/60Hz (7680x4320) DSC
Supported video standards
8K/60Hz (7680x4320) DSC, 8K/30Hz (7680x4320) Full UHD, 4K/240Hz (3840x2160) DSC, 4K/120Hz (3840x2160) UHD
General
Goobay Version
DP 1.4
Color
black
Markings
CE, WEEE
Operating temperature from
0 °C
Operating temperature up to
50 °C
Packaging type
Retail Polybag
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Downloads
Product data sheet pdf
Item: 59800
EAN: 4040849598005
Manufacturer
Wentronic GmbH, Pillmannstraße 12,
38112 Braunschweig, Germany
www.wentronic.com, cs@wentronic.com
