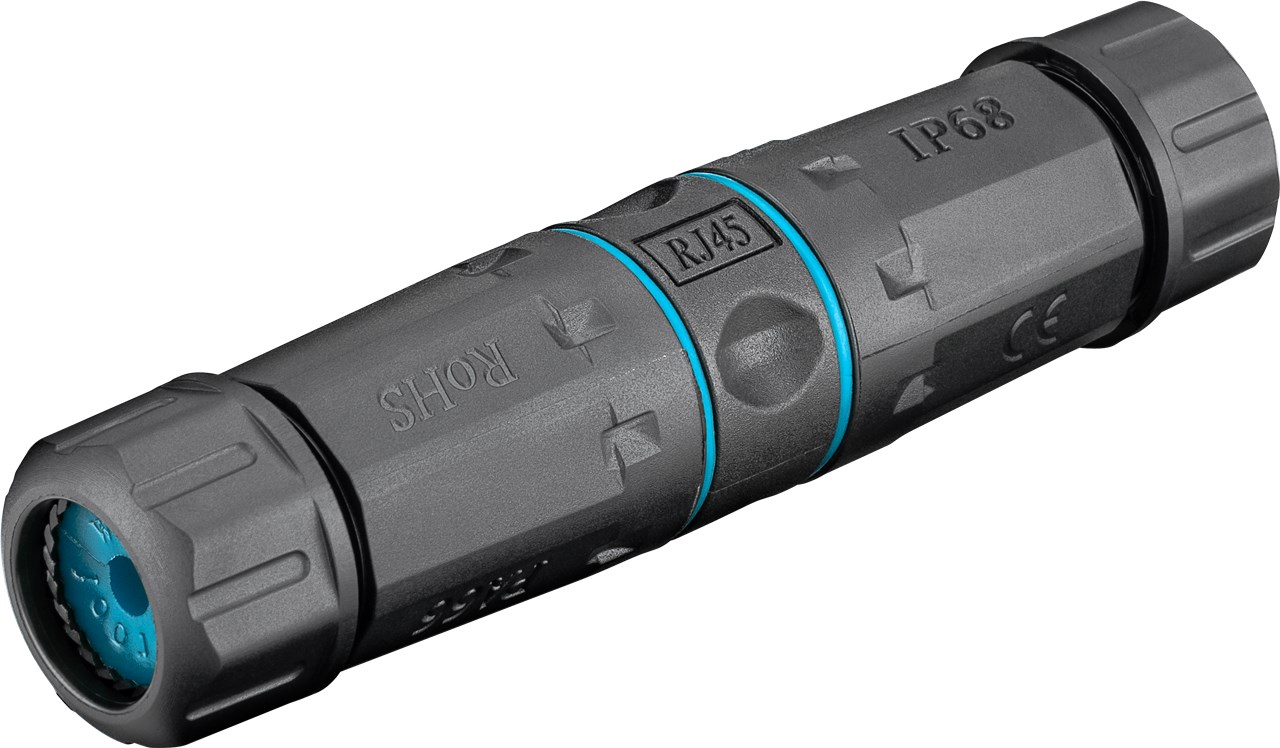

Outdoor (IP68) LAN Cable Connector, CAT 6A UTP Unshielded
dust and waterproof, for IDC connection (toolless)
Outdoor (IP68) LAN Cable Connector, CAT 6A UTP Unshielded
dust and waterproof, for IDC connection (toolless)
Article details
The cable connector is designed for 8-wire connection, extension, repair or rerouting of data cables. The major advantage of the connector over CAT connection boxes is its slim design. With the product, you can realise cable extensions even in confined space, e.g. in cable ducts. Goobay always provides the perfect products for your needs. Simply. All. You need!
- Unshielded cable connection (UTP) for extending or linking 2x LAN installation cables
- Field assembly cable connector for outdoor and industrial applications offers protection against dirt and moisture (protection class IP68).
- Connector module to reconnect damaged cables without re-routing an entire cable segment.
- For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
- Max. data transmission of 500 MHz guarantees an excellent network connection-
- Suitable for unterminated patch cables with AWG 22-26 (conductor diameter: solid wire 0.48 - 0.65 mm, stranded wire 7 x 0.16 mm - 7 x 0.20 mm and cable sheath diameter: 5.0 - 7.5 mm)
- Very slim connection module with shield connection and integrated strain relief
Technical specifications
Connections
Connection 2, type
for IDC connection (toolless)
Connection, type
for IDC connection (toolless)
Cable
Specification
CAT 6A
Shielding class
UTP
Signal transmission
max. bandwidth
500 MHz
General
Markings
CE
Operating temperature from
-20 °C
Operating temperature up to
85 °C
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Length
122 mm
Diameter
28 mm
Language Scope
Operation manual
de, en
Downloads
Packing units:
1 / 20 / 200
Item: 44416
EAN: 4040849444166
