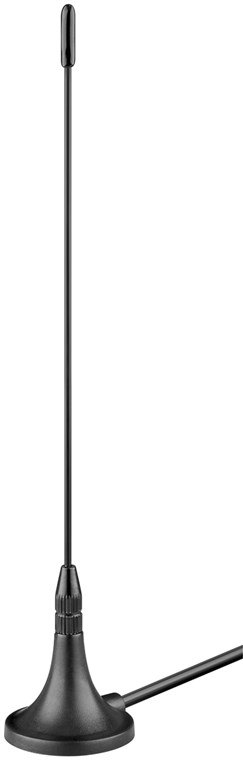

Passive DVB-T2 (HD) Mini Magnetic Antenna
3 dBi antenna for reception of DVB-T/DVB-T2 HD programmes

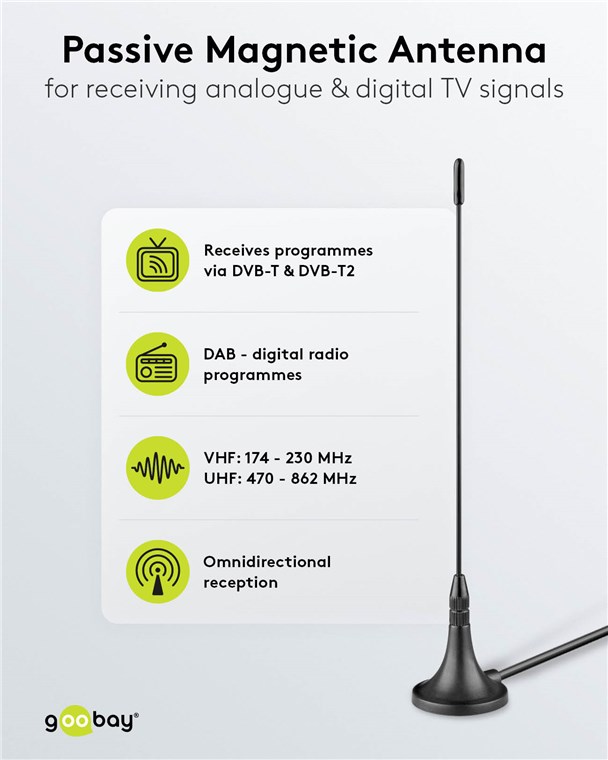

- indoor antenna for receiving analogue and digital TV signals in the VHF range (174 MHz - 230 MHz) and UHF range (470 MHz - 862 MHz)
- specially designed for digital terrestrial radio and TV reception, may be used outdoors
- also suitable for receiving digital radio programmes (DAB)

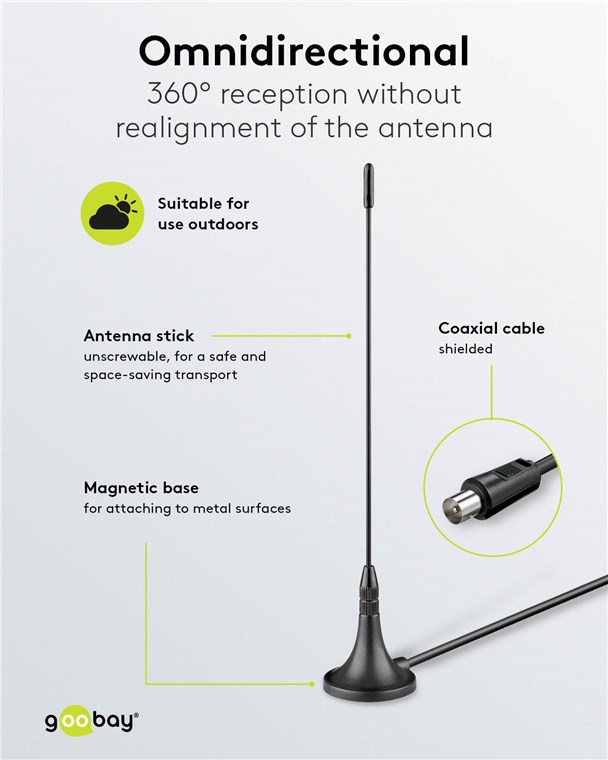

- omnidirectional and therefore no realignment (horizontal/vertical) required with differently polarised transmitters
- shielded coaxial cable and coaxial plug for interference-free reception
- ideally suited for leisure activities such as use in a caravan or boat
Cable
| Cable length |
2 m |
| Cable type |
coaxial cable |
Signal transmission
| Directivity pattern |
omnidirectional |
| Frequency Range VHF from |
174 |
| Frequency range VHF to |
230 |
| Frequency Range UHF from |
470 |
| Frequency range UHF to |
862 |
| antenna gain VHF |
3 dBi max. |
| antenna gain UHF |
3 dBi max. |
General
| antenna Type |
outdoor Antenna |
| Diameter Stand |
28 |
| Color |
black |
| Markings |
WEEE, CE |
| Packaging type |

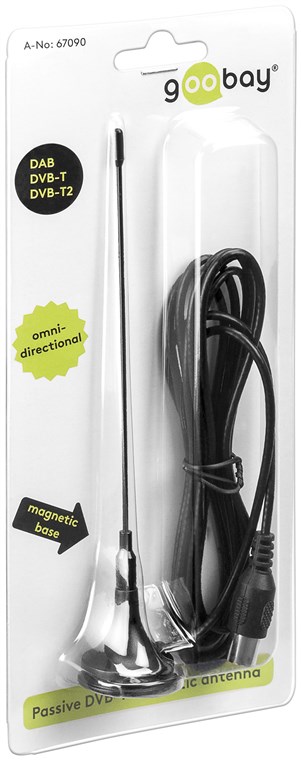

Retail Blister |
Dimensions / Weight
| Consumption Unit |

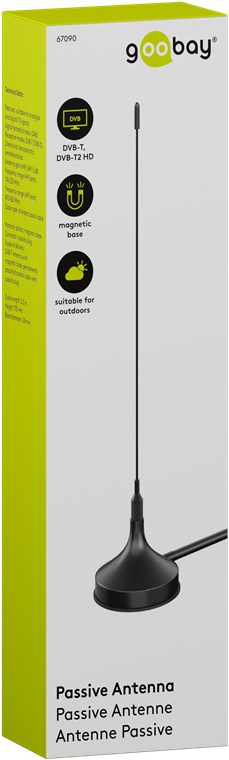

1 pc. in cardboard box |

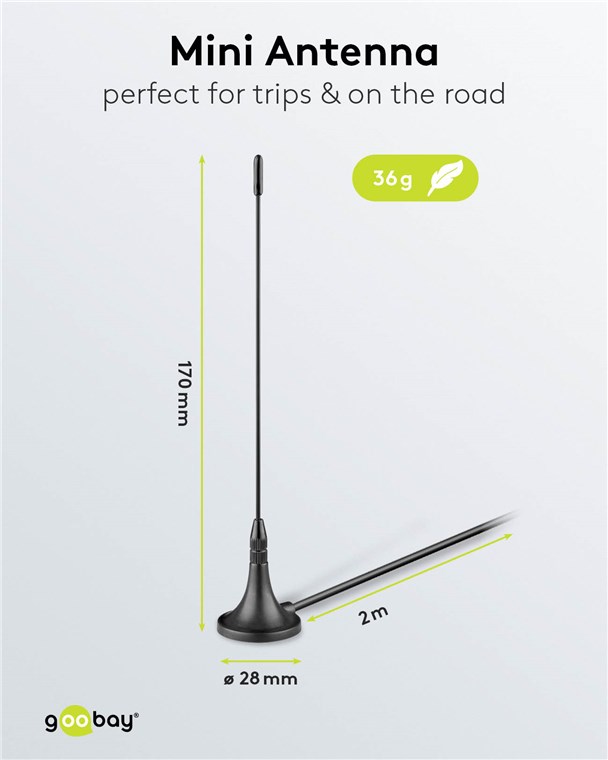

| Height |
170 mm |
Language Scope
SCIP
| SCIP no. |
9e9781bf-f371-43ee-92d7-5d4321bbd93b |
| chemical substance |
Pb |
| CAS no. |
7439-92-1 |
£5.99 RRP
Packing units:
1 / 48 / 96
