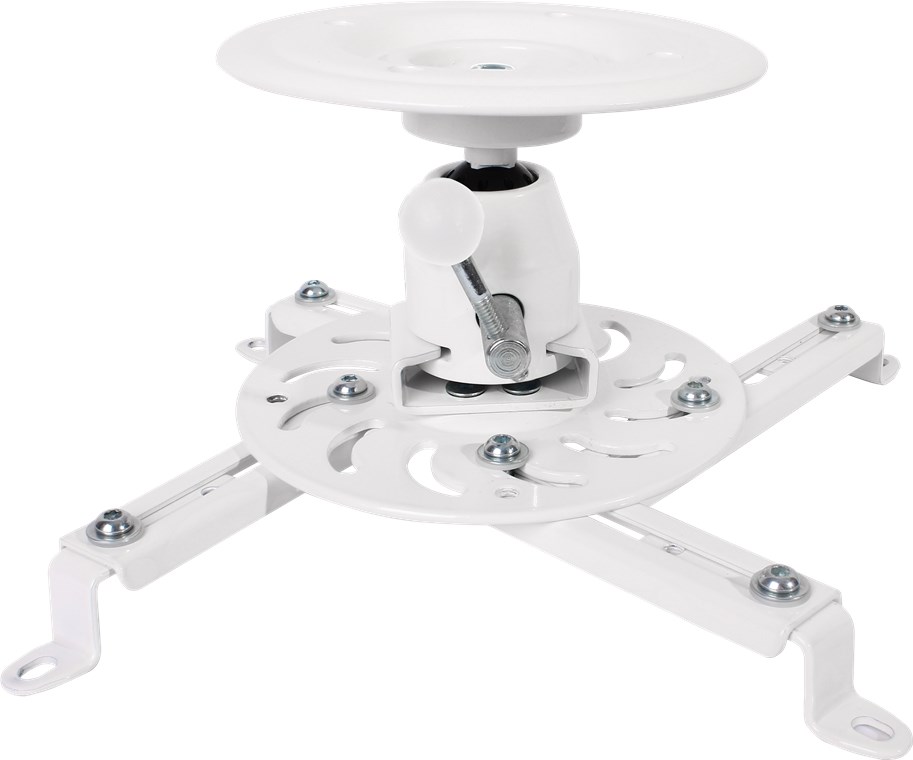

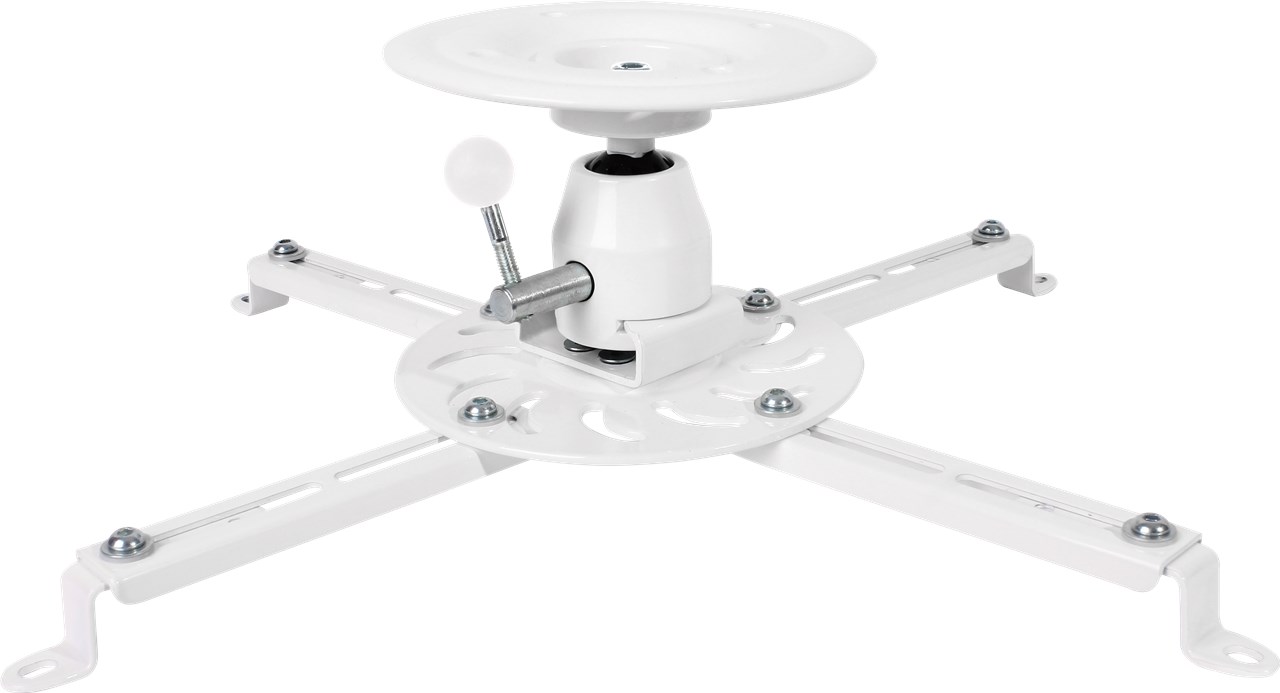

Projector Ceiling Mount (XL)
for large projectors, fully articulated
Place your projector at home or in the office optimally and trouble-free to enjoy perfect home cinema experience - on the ceiling.

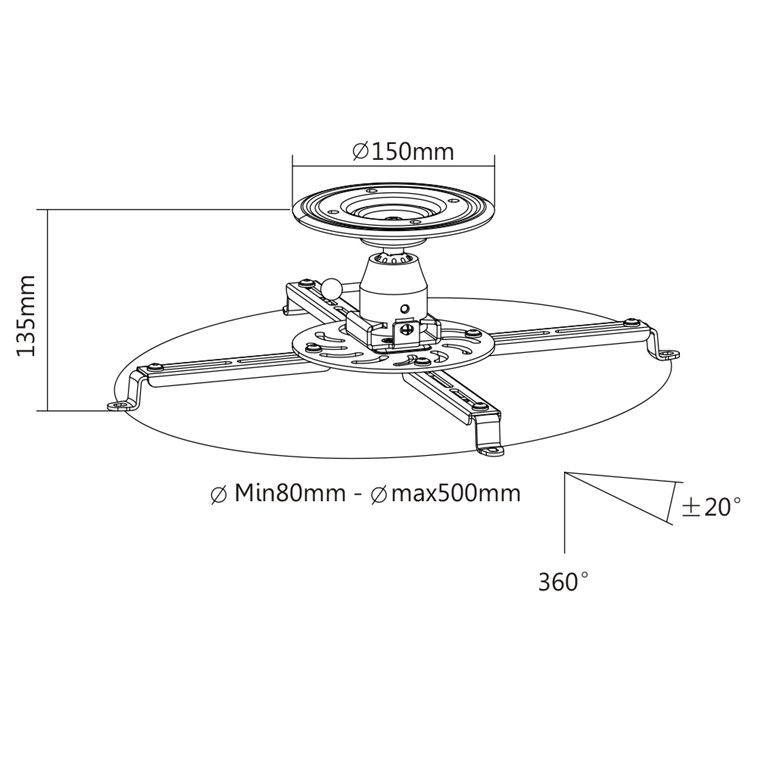

- Distance to ceiling 135 mm
- to be tilted up to 20 °, can be swiveled 20 ° and 360 °
- suitable for devices up to 25 kg
- selectable hole spacing between 80-500 mm
- With integrated ball joint and handle button for easy position adjustment of the projector even after installation
- adjustable supporting arms for projectors of different sizes
- mounting material included
Performance
| maximum load |
25 kg |
| min. Wall distance |
135 |
| turn / swivel range |
360 ° |
| inclination and tilting ranges |
20 ° |
General
| Color |
white |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
161 mm |
| Width |
161 mm |
| Height |
140 mm |
| Weight |
2005 g |
Scope of delivery
| Assembly Material |
dowel, screws |
Language Scope
| packaging |
de, en, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr |
