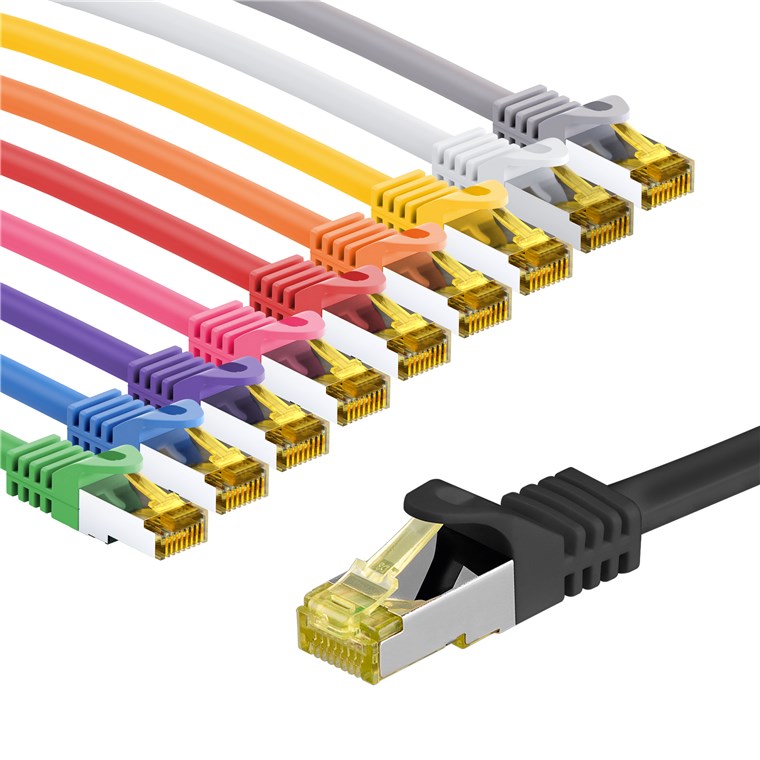

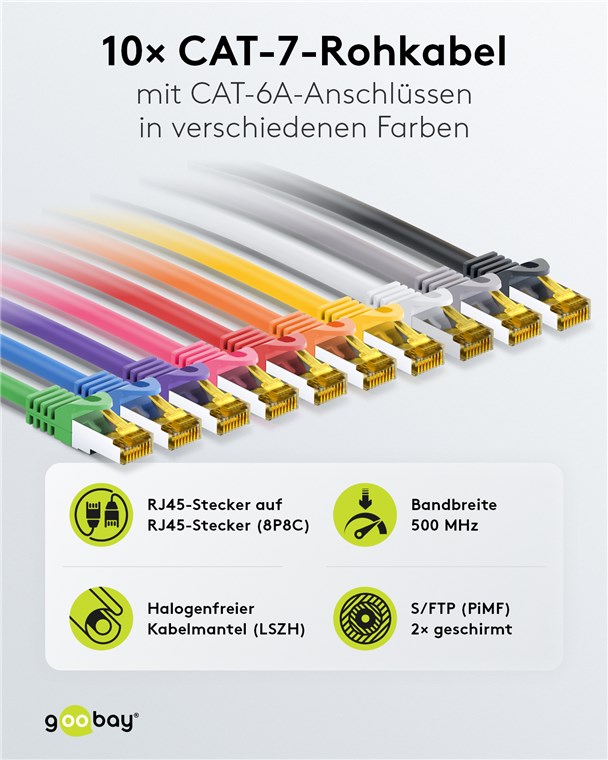

RJ45 Patch Cord CAT 6A S/FTP (PiMF), 500 MHz, with CAT 7 Raw Cable, 1 m, Set in 10 Colours
LSZH halogen-free cable sheath, RJ45 plug (CAT 6A), CU
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Our solutions are especially suitable for high-resolution image transmission in 8K @ 60 Hz and 4K @ 120 Hz. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Prewired, double-shielded LAN cable (CAT 7 with 600 MHz) with RJ45 connectors (CAT 6A with 500 MHz) for connecting network components
- High-speed network cable especially for game consoles with high-resolution picture (8K @ 60 Hz and 4K @ 120 Hz) such as Sony PlayStation 5 or Microsoft Xbox X

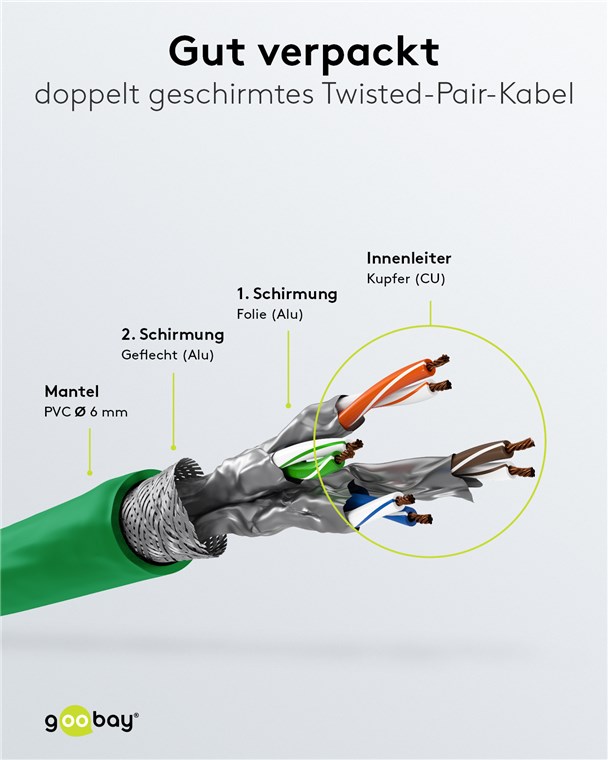

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and 50µ gold-plated contacts guarantee an excellent, powerful network connection

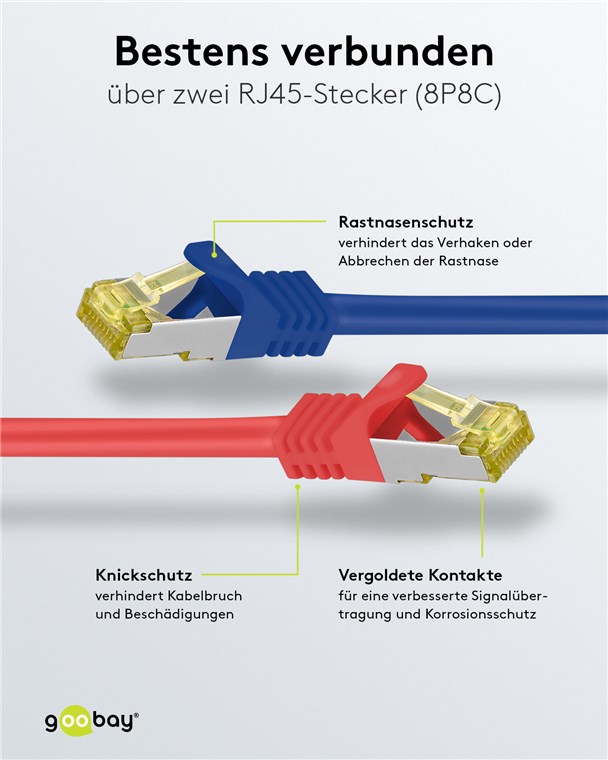

- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection
- Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage
- CAT 7 cable is suitable for Power over Ethernet (PoE, PoE+) and 10 Gigabit Ethernet with speeds of up to 10/100/1000/10000 Mbit/s

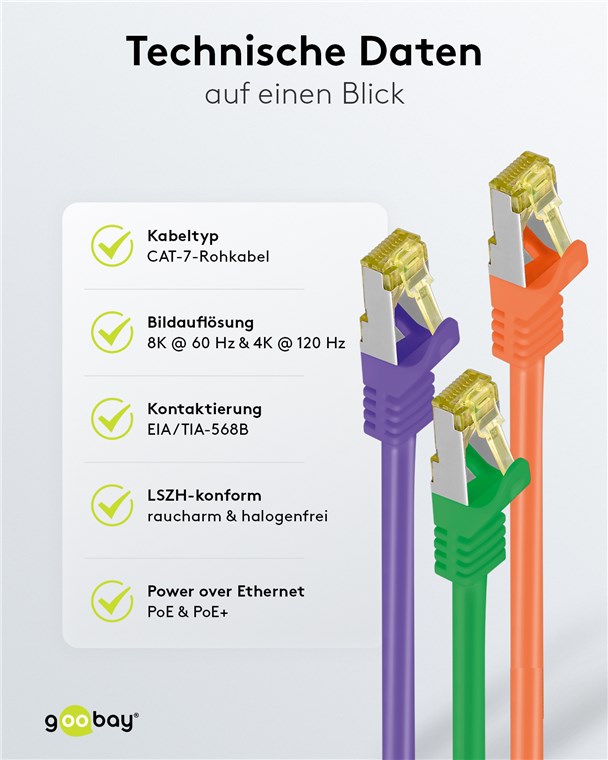

Technical specifications
Connections
| Connection, type | RJ45 male (8P8C) |
| Connection, contact material | gold-plated 50µm |
| Latch protection | both sides |
| Connection 2, type | RJ45 male (8P8C) |
| Connection, shielding | yes |
| Contacting | EIA/TIA-568 B |
| Kink protection | both sides |
Cable
| Specification | CAT 7 |
| Cable type | Cat 7 raw cable |
| Shielding class | S/FTP (PiMF) |
| Number of shieldings | 2 x |
| Cable length | 1 m |
| Type 1, shielding | foil (alu) PiMF |
| Material cable sheath | LSZH |
| Type 2, shielding | braid (alu) overall shield |
| AWG | 26/7 (stranded) |
| Inner conductor material | CU (copper) |
| Cable sheath diameter (approx.) | 6.2 mm |
| bending radius > | 48 mm |
| LSZH compliant | yes |
Signal transmission
| max. bandwidth | 500 MHz |
General
| Color | blue, yellow, grey, Green, magenta, orange, red, black, violet, white |
| Markings | CE, WEEE |
| Special feature | Length indication on connector |
| Operating temperature from | -20 °C |
| Operating temperature up to | 65 °C |
| Packaging type | Bulk |
Dimensions / Weight
| Consumption Unit | 10 pcs. in polybag |
Downloads
Product data sheet pdf
