Goobay

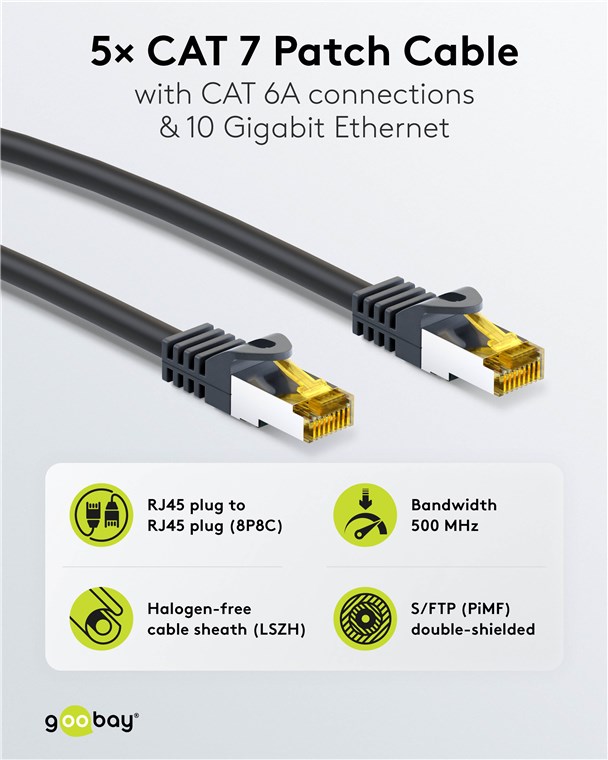

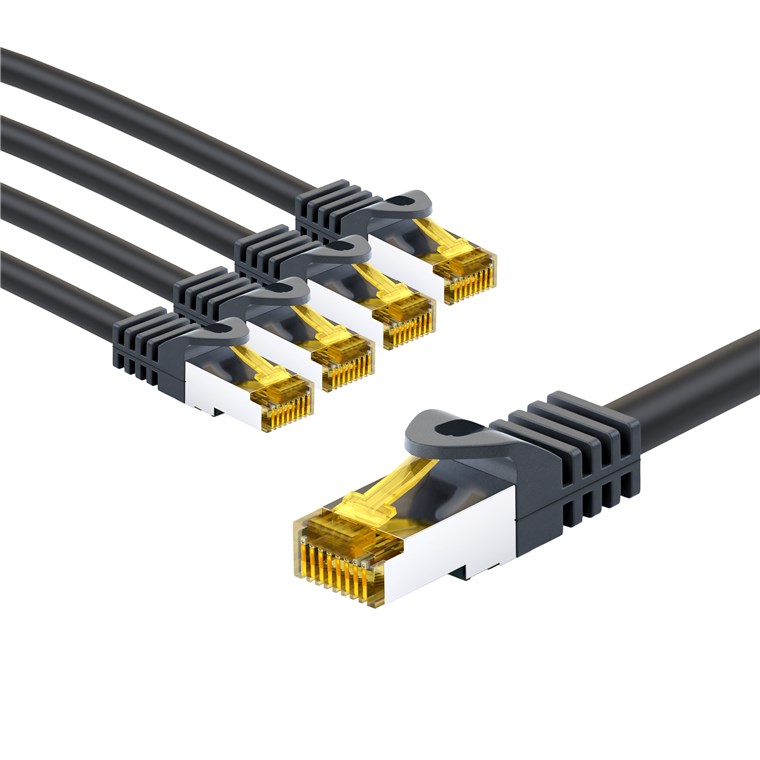

RJ45 Patch Cord CAT 6A S/FTP (PiMF), 500 MHz, with CAT 7 Raw Cable, 5 m, black, Set of 5

LSZH halogen-free cable sheath, RJ45 plug (CAT 6A), CU

With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.
  • Prewired, double-shielded LAN cable (CAT 7 with 600 MHz) with RJ45 connectors (CAT 6A with 500 MHz) for connecting network components
  • High-speed network cable especially for game consoles with high-resolution picture (8K @ 60 Hz and 4K @ 120 Hz) such as Sony PlayStation 5 or Microsoft Xbox X
  • S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
  • High-quality copper conductor (CU) and 50µ gold-plated contacts guarantee an excellent, powerful network connection
  • Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection
  • Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage
  • CAT 7 cable is suitable for Power over Ethernet (PoE, PoE+) and 10 Gigabit Ethernet with speeds of up to 10/100/1000/10000 Mbit/s

Technical specifications

Connections

Kink protection both sides
Latch protection both sides
Connection, shielding yes
Connection, contact material gold-plated 50µm
Contacting EIA/TIA-568 B
Connection, type RJ45 male (8P8C)
Connection 2, type RJ45 male (8P8C)

Cable

Material cable sheath LSZH
Cable length 5 m
Inner conductor material CU (copper)
Cable type Cat 7 raw cable
Specification CAT 7
Shielding class S/FTP (PiMF)
Number of shieldings 2 x
Type 1, shielding foil (alu) PiMF
Cable sheath diameter (approx.) 6.2 mm
Type 2, shielding braid (alu) overall shield
AWG 26/7 (stranded)
bending radius > 48 mm
LSZH compliant yes

Signal transmission

max. bandwidth 500 MHz
max. transmission rate 10 Gbit/s

General

Color black
Markings CE, WEEE
Special feature Length indication on connector
Operating temperature from -20 °C
Operating temperature up to 65 °C

Packaging

Consumption Unit 5 pcs. in polybag
Packaging type Bulk

Cable length

Article: 69406

EAN: 4040849694066
